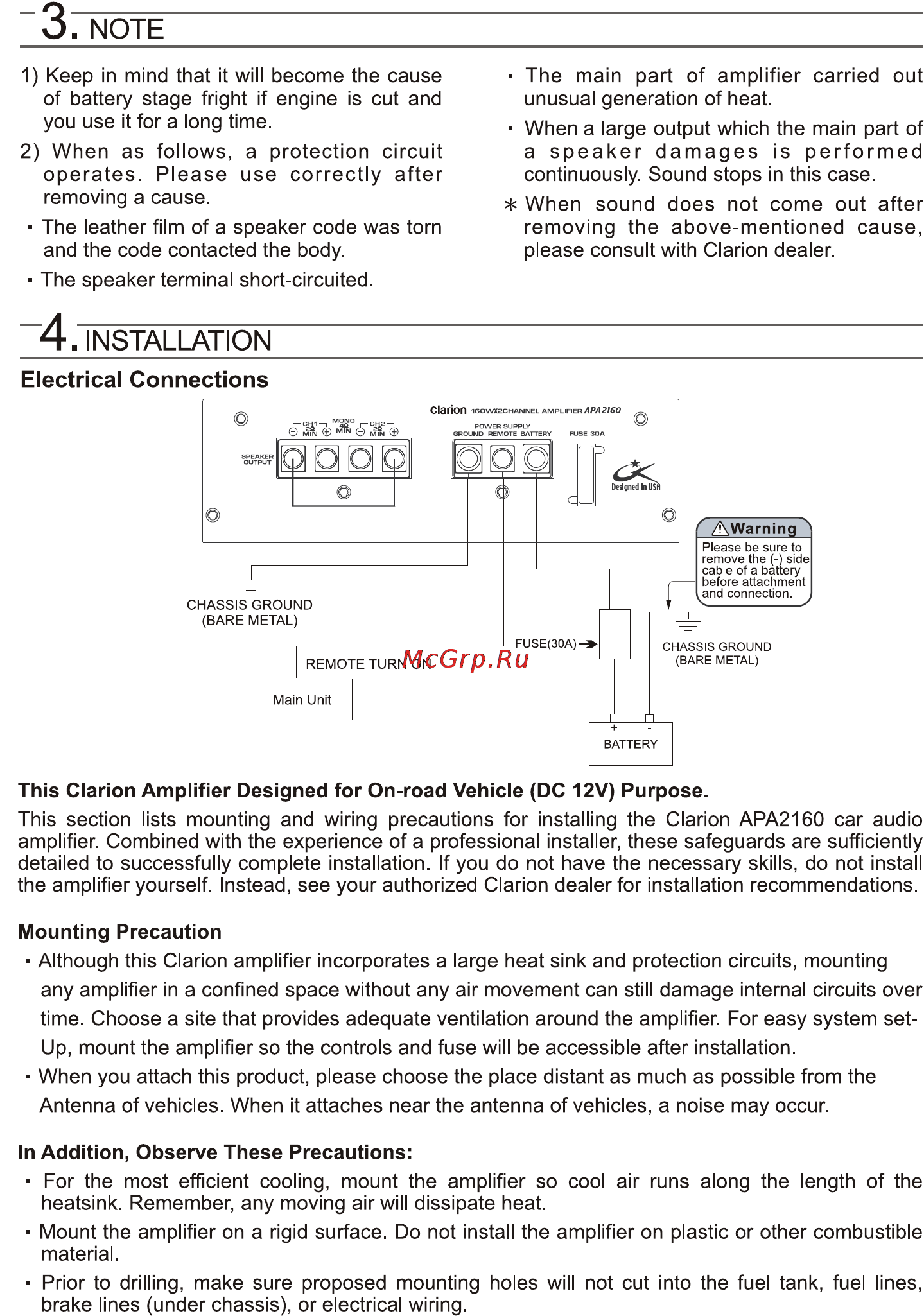

NOTE 1 Keep in mind that it will become the cause of battery stage fright if engine is cut and you use it for a long time 2 When as follows a protection circuit operates Please use correctly after removing a cause The leather film of a speaker code was torn and the code contacted the body The speaker terminal short circuited The main part of amplifier carried out unusual generation of heat When a large output which the main part of a speaker damages is performed continuously Sound stops in this case When sound does not come out after removing the above mentioned cause please consult with Clarion dealer 4 INSTALLATION Electrical Connections This Clarion Amplifier Designed for On road Vehicle DC 12V Purpose This section lists mounting and wiring precautions for installing the Clarion APA2160 car audio amplifier Combined with the experience of a professional installer these safeguards are sufficiently detailed to successfully complete installation If you do not have the necessary skills do not install the amplifier yourself Instead see your authorized Clarion dealer for installation recommendations Mounting Precaution Although this Clarion amplifier incorporates a large heat sink and protection circuits mounting any amplifier in a confined space without any air movement can still damage internal circuits over time Choose a site that provides adequate ventilation around the amplifier For easy system setUp mount the amplifier so the controls and fuse will be accessible after installation When you attach this product please choose the place distant as much as possible from the Antenna of vehicles When it attaches near the antenna of vehicles a noise may occur In Addition Observe These Precautions For the most efficient cooling mount the amplifier so cool air runs along the length of the heatsink Remember any moving air will dissipate heat Mount the amplifier on a rigid surface Do not install the amplifier on plastic or other combustible material Prior to drilling make sure proposed mounting holes will not cut into the fuel tank fuel lines brake lines under chassis or electrical wiring
