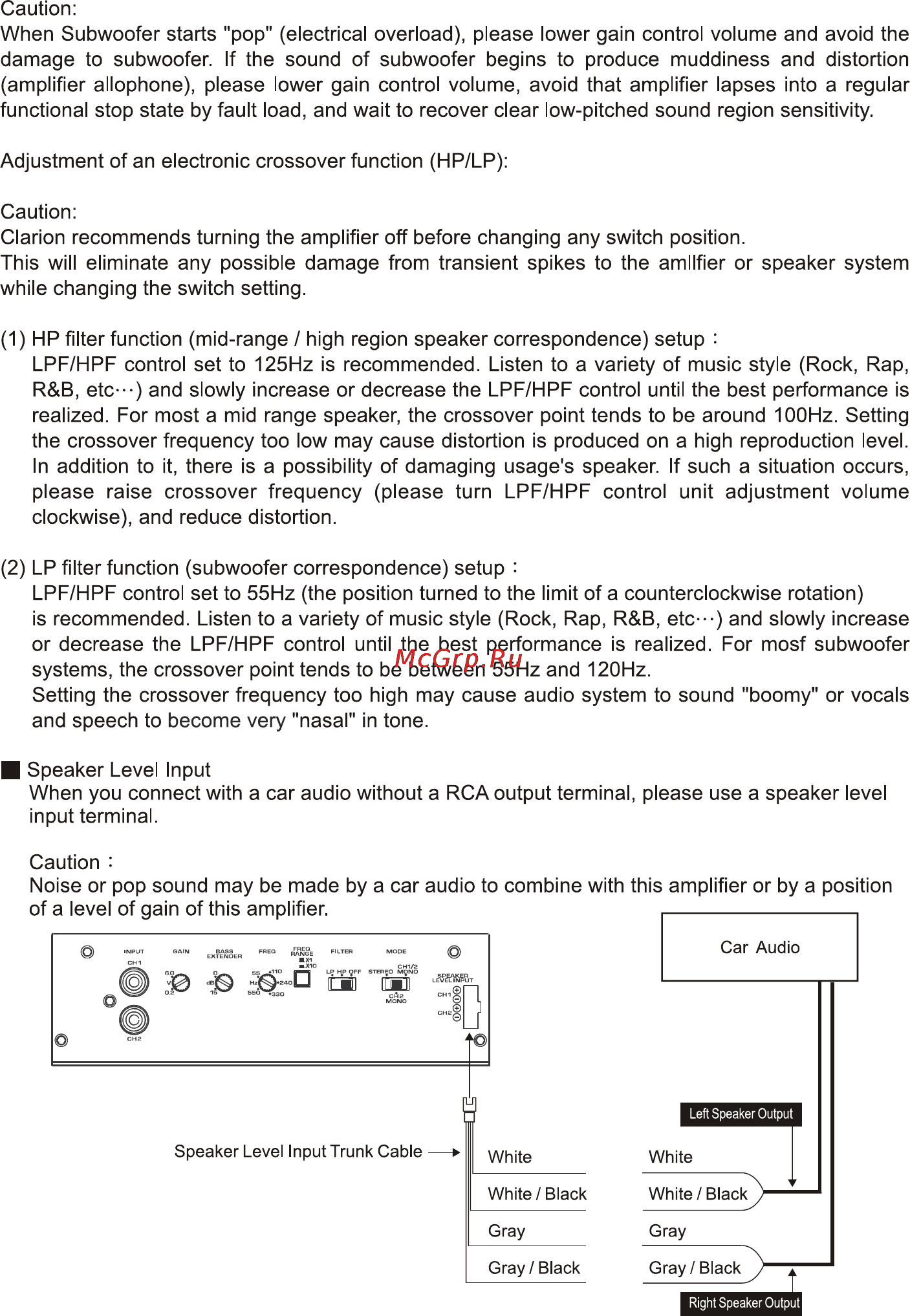

Caution When Subwoofer starts pop electrical overload please lower gain control volume and avoid the damage to subwoofer If the sound of subwoofer begins to produce muddiness and distortion amplifier allophone please lower gain control volume avoid that amplifier lapses into a regular functional stop state by fault load and wait to recover clear low pitched sound region sensitivity Adjustment of an electronic crossover function HP LP Caution Clarion recommends turning the amplifier off before changing any switch position This will eliminate any possible damage from transient spikes to the amllfier or speaker system while changing the switch setting 1 HP filter function mid range high region speaker correspondence setup LPF HPF control set to 125Hz is recommended Listen to a variety of music style Rock Rap R B etc and slowly increase or decrease the LPF HPF control until the best performance is realized For most a mid range speaker the crossover point tends to be around 100Hz Setting the crossover frequency too low may cause distortion is produced on a high reproduction level In addition to it there is a possibility of damaging usage s speaker If such a situation occurs please raise crossover frequency please turn LPF HPF control unit adjustment volume clockwise and reduce distortion 2 LP filter function subwoofer correspondence setup LPF HPF control set to 55Hz the position turned to the limit of a counterclockwise rotation is recommended Listen to a variety of music style Rock Rap R B etc and slowly increase or decrease the LPF HPF control until the best performance is realized For mosf subwoofer systems the crossover point tends to be between 55Hz and 120Hz Setting the crossover frequency too high may cause audio system to sound boomy or vocals and speech to become very nasal in tone Speaker Level Input When you connect with a car audio without a RCA output terminal please use a speaker level input terminal Caution Noise or pop sound may be made by a car audio to combine with this amplifier or by a position of a level of gain of this amplifier Car Audio Gray Gray Blackey Right Speaker Output
