INSTALLATION AND USE MANUAL
Chapter 5
page 30
Comfort air kit
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
5.3.1. Variation for air outlet with container
The essence container (2) is available only on the one-direction air
outlet with and without light. Its purpose is to humidify the air.
The container (2) can easily be removed from its seat. To do so, lift the
door (1) at the bottom and extract the container (see fig.4).
Place only water in the container. It is possible to add essences to
perfume the room.
IMPORTANT!
EXTRACT THE CONTAINER FROM ITS SEAT FOR
FILLING ONLY WHEN THE AIR OUTLET IS COOL AND
THE STOVE UNIT IS OFF.
5.3.2. Variation for air outlet with illumination
If you decide to install the ventilation kit with illumination, you must
remove the knockout panel located on the structure of the air outlet
(fig.5) and pre-install the light (a).
To open the pre-cut knockout panel, strike it with a rubber mallet.
(fig.5).
Install the light (a) on the structure of the air outlet at the knockout
panel so that it is facing the front of the structure (fig. 6). Fasten the
light using the two brackets (c) with the screws (b) and bolts (d)
provided.
Once you have inserted the light (a), make the electrical connections.
In the rear part, insert the two female terminals on the tips of the light
(fig.7)
For forced ventilation, you will need to connect the power cord of the
light (included) to the control unit in the appropriate terminal. For
natural ventilation, the connection must be made to a wall switch (to
be done by the installer).
The cable provided for connection of the light is 2.5 metres. For
greater lengths you will need to use an extension cord.
IMPORTANT!
The cable for the connection of the light/fan is made of
silicone material to withstand high temperatures. If
you use extension cords (over 2.5 m) or in any other
circumstance, make sure that the cord does not come
into contact with the hot parts of the stove and of the
air connection hoses in the cladding of the structure.
If you install the comfort air kit with illumination, it is
necessary to pre-install the light on the kit before
inserting it in the hole.

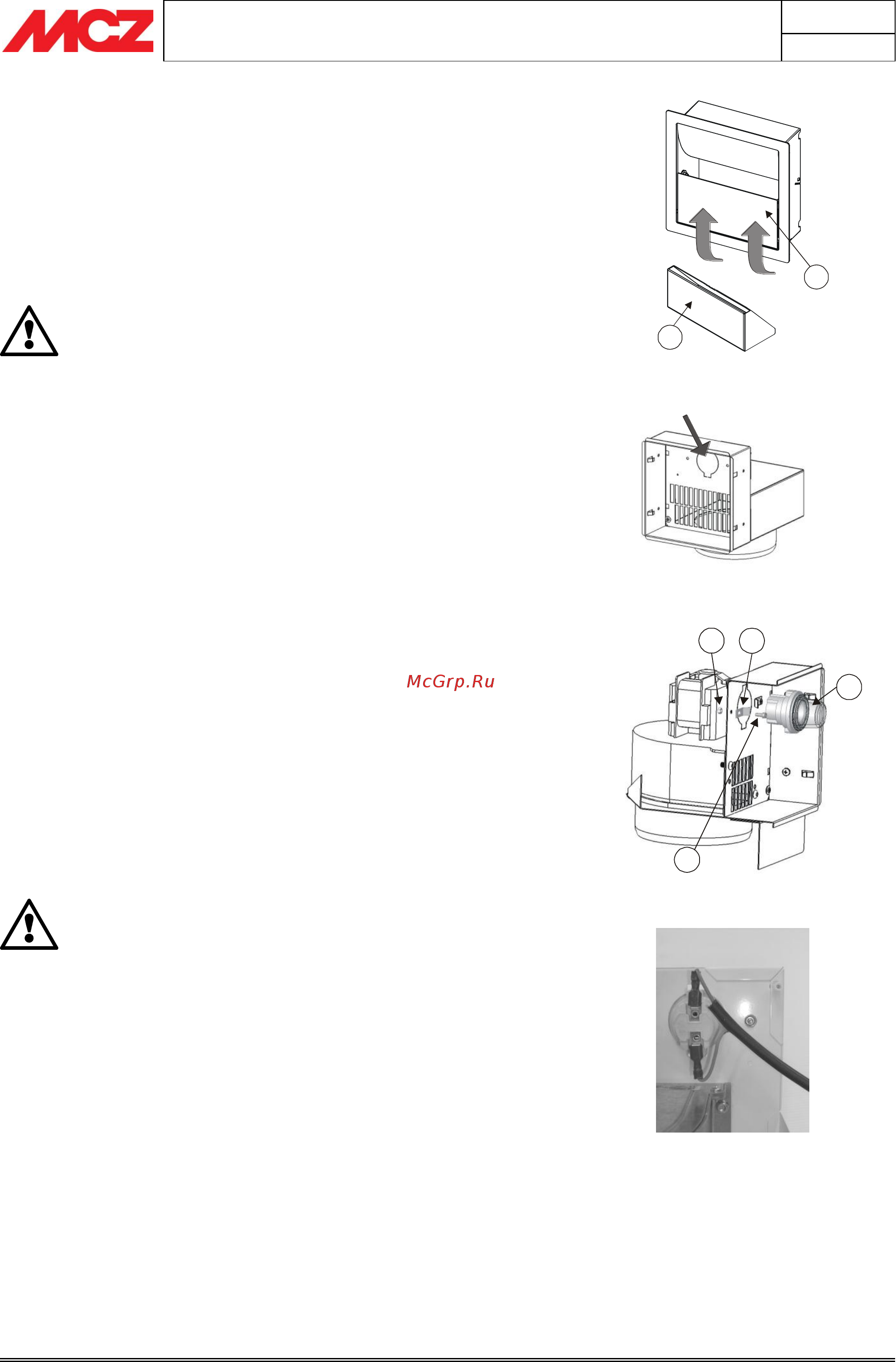

Figure 5– Knockout for insertion of light
Figure 7-Lamp electrical connections
Figure 6– Fastening the light
Figure 4– Container
