INSTALLATION AND USE MANUAL
Chapter 5
page 32
Comfort air kit
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
5.4. CONTROL UNIT
IMPORTANT!
All electrical connections must be performed by
qualified personnel in accordance with current laws in
each nation, using suitable equipment and in
compliance with the diagram indicated in this booklet.
All operations must be performed with the 230V 50 Hz
mains power cord disconnected.
Mcz shall not be held liable for damage to persons or
things due to incorrect connections or improper use of
the device.

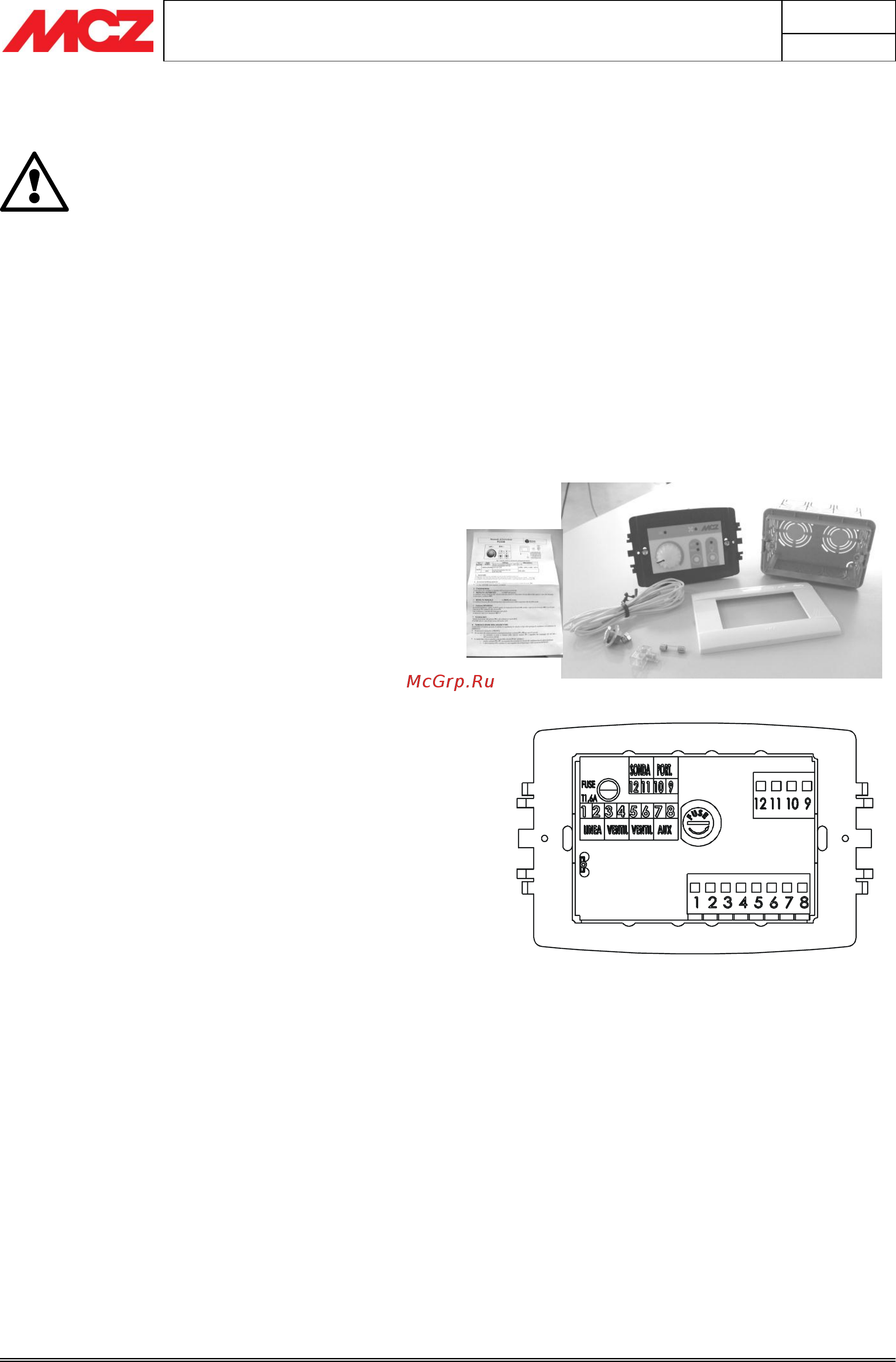

5.4.1. Composition of control unit
The following material is provided with the control unit:
A. recessed box
B. Control unit, screws for fastening and power cord
C. Probe and cable clamp
D. Terminal for the common earth cable
E. Spare fuse (1.6 A)
F. Plate
G. Instructions
The control unit is equipped with 6 double terminals for the connection of:
1. Line (1-2 LINEA)
2. Fan 1 (3-4 VENTIL.)
3. Fan 2 (5-6 VENTIL.)
4. Light (7-8 AUX)
5. Switch for door opening (9-10 PORT.)
6. Probe (11-12 SONDA)
5.4.2. Positioning of the control unit
Make a hole in the wall (about 10X7.5 cm) for the installation of the
control unit, taking into account the positioning of the probe.
In this hole, insert the recessed box (A) without the control unit body
(B). Be sure to position it in a dry place, as far as possible from
heat sources, compatible with the position of the probe.
Run the cables (probe, power supply, fan and switch for door opening)
through the recessed box (A) so that they are available for connection.
Connect them to the terminals located on the control unit as shown in
figure 4.14.
Once connections are complete, insert the control unit body and fasten
it with the provided screws to the recessed box (A).
Finally, insert the white plate provided (F) or any other one, since the
control unit body is set up to house AVE SYSTEM 45 series and VIMAR
IDEA series plates using special hooks.
A
B
C
D
E
F
G
