TECHNICAL DATA

Oven dimensions

(WxDxH)

39x44x34 cm

Volume

60 l

Useful

measurements

relating to the oven

compartment

width 42 cm

depth 44 cm

height 18 cm

Power supply

voltage and

frequency

see data plate

Electric hob

Front left

Back left

Back right

Front right

Maximum absorption

of the electric hob

1500 W

2000 W

1500 W

2000 W

7000 W

ENERGY LABEL

Directive 2002/40/EC on the

label of electric ovens. Standard

EN 50304

Declared energy consumption

for Natural convection Class –

heating mode:



Static

EC Directives: 2006/95/EC

dated 12/12/06 (Low Voltage)

and subsequent amendments -

2004/108/EC dated 15/12/04

(Electromagnetic Compatibility)

and subsequent amendments -

93/68/EEC dated 22/07/93 and

subsequent amendments -

2002/96/EC.

1275/2008 (Stand-by/ Off mode)

6. Close the terminal board cover by tightening the

screws V.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the

load indicated on the data plate located on the

appliance.

The appliance must be directly connected to the

mains using an omnipolar circuit-breaker with a

minimum contact opening of 3 mm installed between

the appliance and the mains. The circuit-breaker

must be suitable for the charge indicated and must

comply with current electrical regulations (the

earthing wire must not be interrupted by the circuit-

breaker). The supply cable must be positioned so

that it does not come into contact with temperatures

higher than 50°C at any point.

Before connecting the appliance to the power

supply, make sure that:

• The appliance is earthed and the plug is compliant

with the law.

• The socket can withstand the maximum power of

the appliance, which is indicated by the data

plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be

easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only.

! The manufacturer declines any liability should

these safety measures not be observed.

Data plate, is located inside the flap or, after the

ovencompartment has been opened, on the left-hand

wall inside the oven.

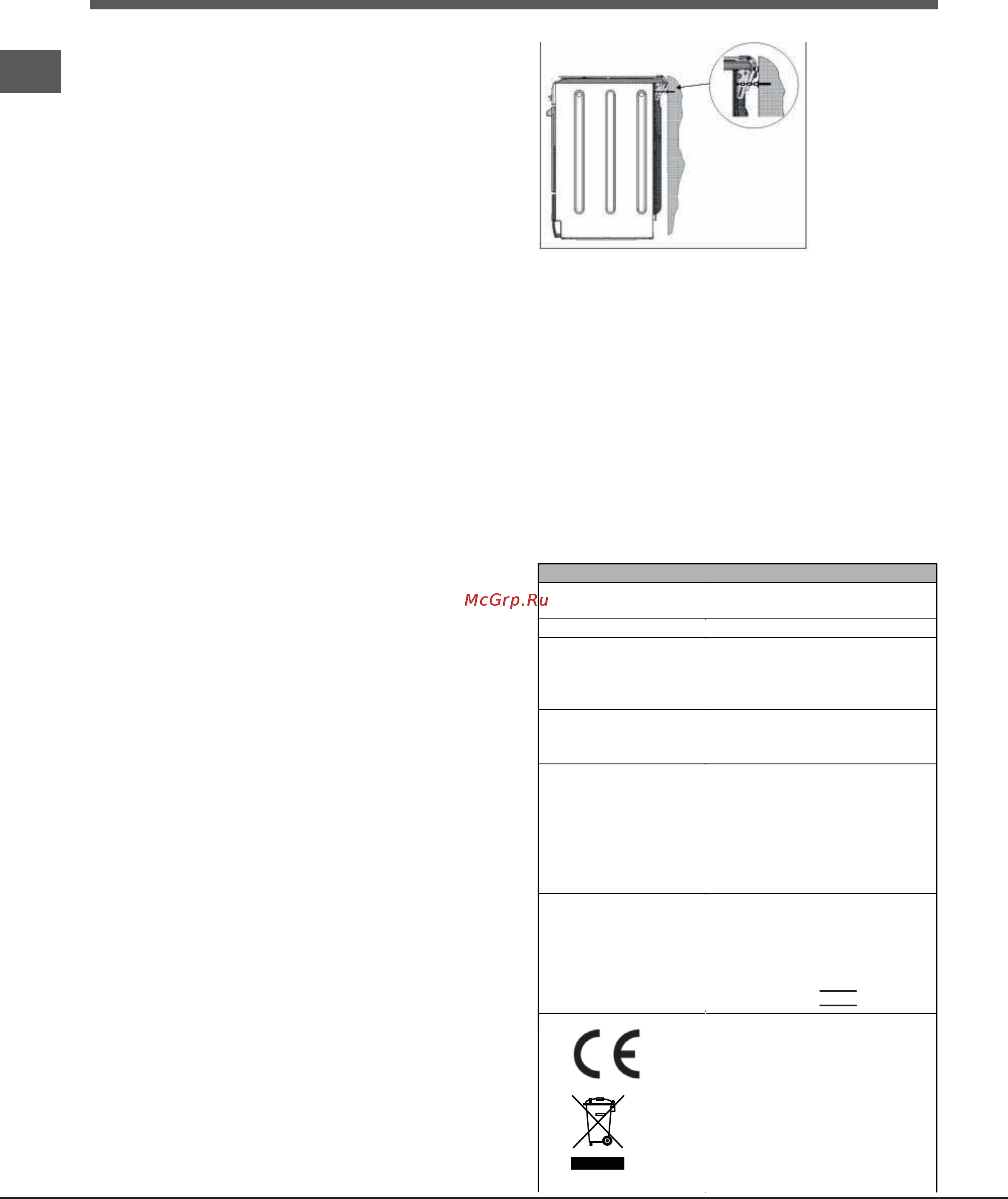

Safety Chain

! In order

to prevent

accidental

tipping of the

appliance, for

example by

a child clim-

bing onto the

oven door, the

supplied safety

chain MUST be

installed!

The cooker is fitted with a safety chain to be fixed by

means of a screw (not supplied with the cooker) to

the wall behind the appliance, at the same height as

the chain is attached to the appliance.

Choose the screw and the screw anchor according

to the type of material of the wall behind the applian-

ce. If the head of the screw has a diameter smaller

than 9mm, a washer should be used. Concrete wall

requires the screw of at least 8mm of diameter, and

60mm of length.

Ensure that the chain is fixed to the rear wall of the

cooker and to the wall, as shown in figure, so that

after installation it is tensioned and parallel to the

ground level.
