GB
15
! Before operating your new appliance please read
this instruction booklet carefully. It contains important
information concerning the safe installation and
operation of the appliance.
! Please keep these operating instructions for future
reference. Make sure that the instructions are kept with
the appliance if it is sold, given away or moved.
! The appliance must be installed by a qualified
professional according to the instructions provided.
! Any necessary adjustment or maintenance must be
performed after the appliance has been disconnected
from the electricity supply.

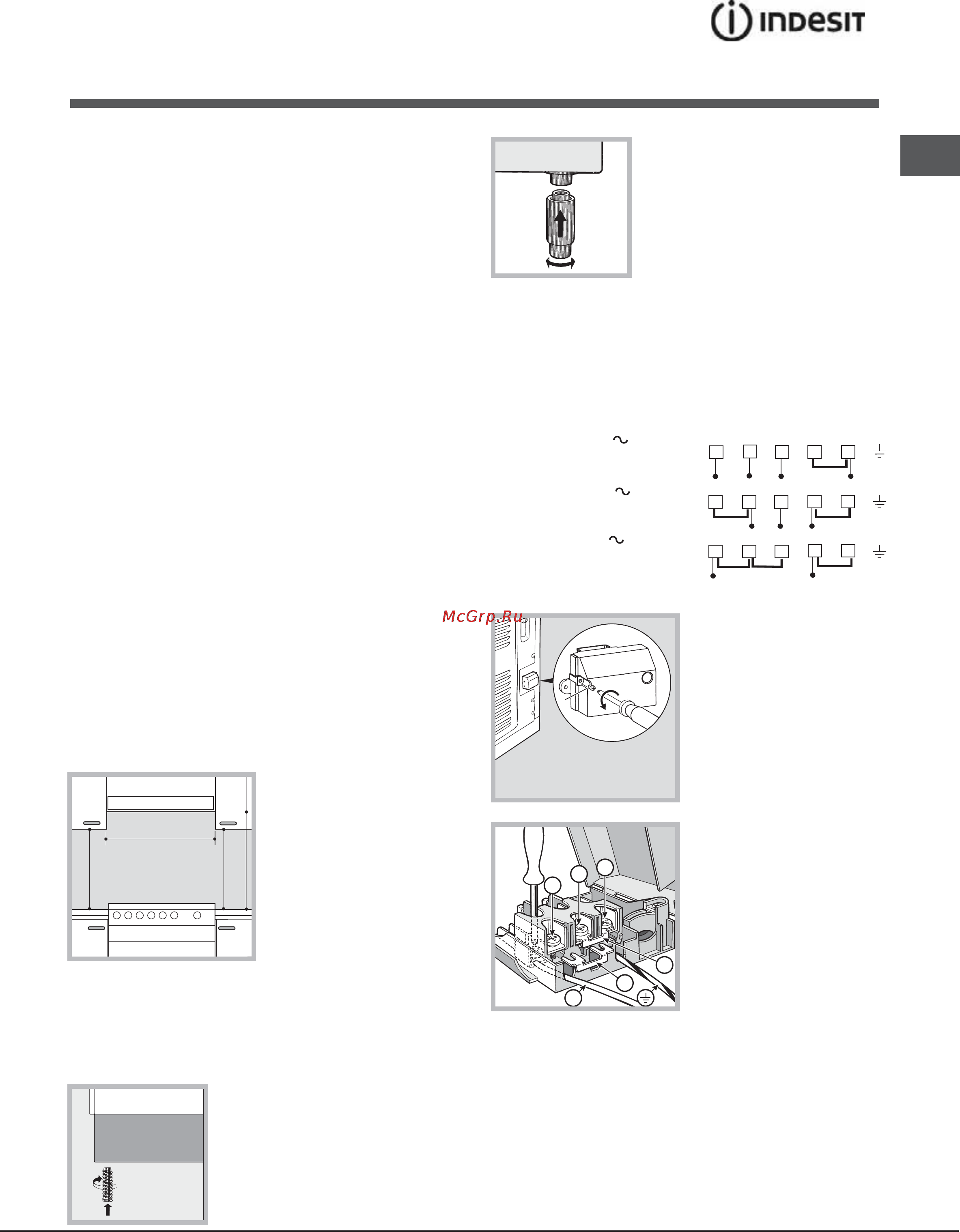

Positioning and levelling
! It is possible to install the appliance alongside
cupboards whose height does not exceed that of the
hob surface.
! Make sure that the wall in contact with the back of
the appliance is made from a non-flammable, heat-
resistant material (T 90°C).
To install the appliance correctly:
• Place it in the kitchen, dining room or the bed-sit
(not in the bathroom).
• If the top of the hob is higher than the cupboards,
the appliance must be installed at least 200 mm
away from them.
• If the cooker is
installed underneath a wall
cabinet, there must be a
minimum distance of 420
mm between this cabinet
and the top of the hob.
This distance should be
increased to 700 mm if
the wall cabinets are
flammable (
see figure
).
• Do not position blinds behind the cooker or less
than 200 mm away from its sides.
• Any hoods must be installed according to the
instructions listed in the relevant operating manual.
Levelling
If it is necessary to level the
appliance, screw the adjustable
feet* into the places provided on
each corner of the base of the
cooker (
see figure
).
The legs* provided with the
appliance fit into the slots on the
underside of the base of the
cooker.
Electrical connection
Fitting the power supply cable
The cable should be suited to the type of electrical
connection used, according to the following
connection diagram:
To install the power supply cable correctly:
1. Loosen the screw V in
the terminal board and
pull the cover to open it
(
see figure
).
2. Position the
connection support A
(
see figure
) according
to the connection
diagram shown above.
The terminal board is
designed for single-
phase 230 V
connection: terminals 1,
2 and 3 are connected
to each other; jumper 4-5 is located in the lower area
of the terminal board.
3. Position wires N and
according to the diagram
(
see figure
) and perform the connection by tightening
the terminal board screws as much as possible.
4. Position the remaining wires on terminals 1-2-3 and
tighten the screws.
5. Fix the power supply cable in place by fastening
the cable clamp screw.
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600
Min. mm.
420
Min. mm.
V
1
2
3
N
A
B
Installation
We recommend cleaning the oven before
using it for the first time, following the
instructions provided in the "Care and
maintenance" section.
*Available only on certain models
1 2
3
4
5
12345
1
2
3
4
5
R
S
T
N
R
S
N
R
N
400 3N
H05RR-F 5x2.5 CEI-UNEL 35363
400V 2N
H05RR-F 4x4 CEI-UNEL 35363
230V
H05RR-F 3x4 CEI-UNEL 35363
H05VV-F 3x4 CEI-UNEL 35746
H05VV-F 4x4 CEI-UNEL 35746
H05VV-F 5x2.5 CEI-UNEL 35746
