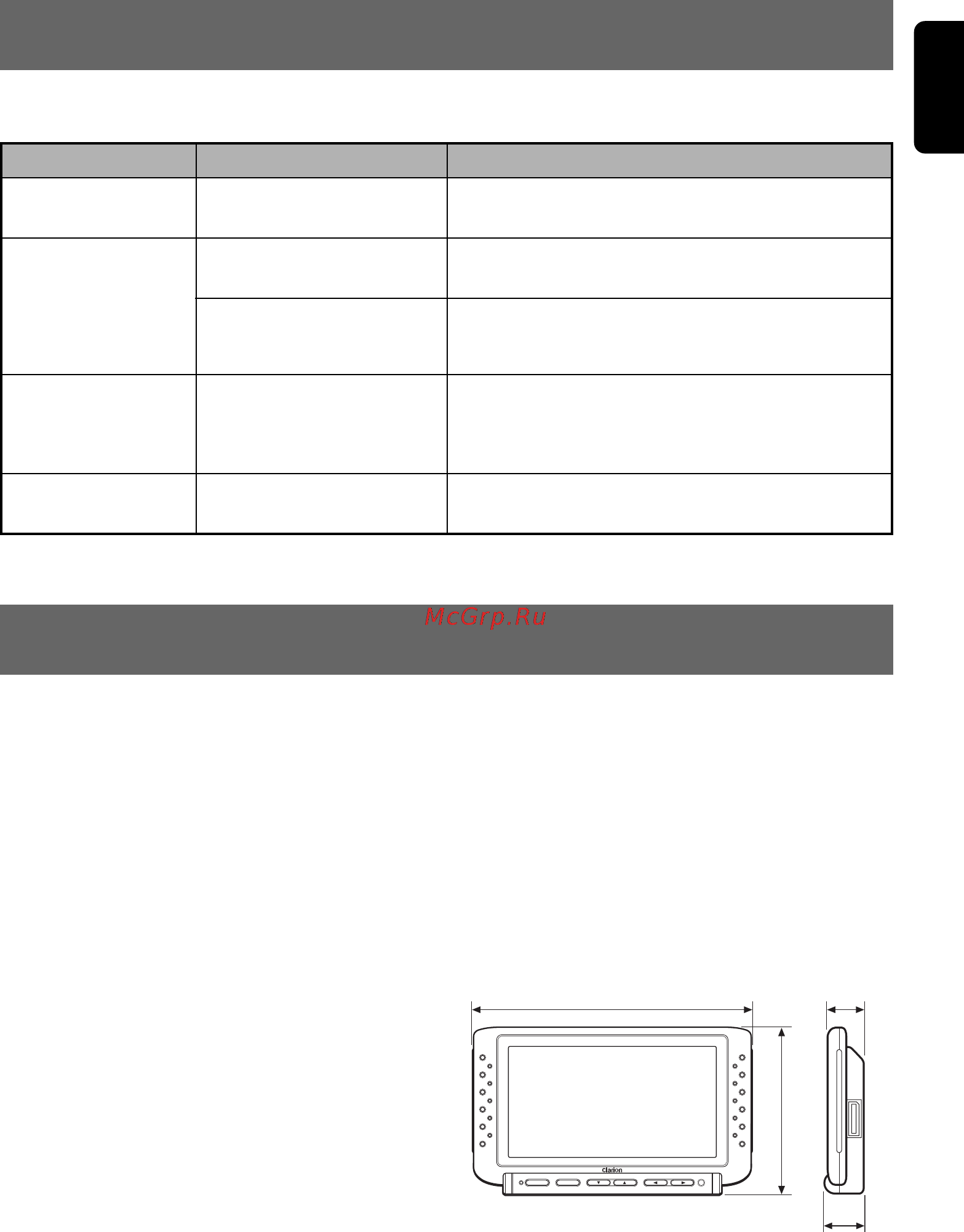

![Clarion CJ981E [13/15] Troubleshooting](/views2/1003430/page13/bgd.png)
CJ-981E 15
English
6. TROUBLESHOOTING
■ In event of a malfunction, check the following symptoms and remedies before calling for professional
repair:
Symptom Cause Remedy
No image
Image is dark
Colors are thin
Hues are poor
BRIGHT/DIMMER setting is
adjusted to minimum setting.
BRIGHT/DIMMER setting is
incorrect.
[CAM1/DIM] button has
been pressed.
Poor operating environment
Improper color adjustment.
Set BRIGHT/DIMMER adjustment properly. See
section “Adjusting the Image Quality” (p. 7).
Check to be sure BRIGHT and DIMMER controls are
adjusted properly.
If the “DIM” indicator appears on the screen, hold the
[CAM1/DIM] button depressed for about 1 second to
set dimmer to OFF.
This may occur when internal vehicle temperatures
are below 0°C or above 60°C. Adjust vehicle
passenger compartment to an appropriate level
(around 25°C).
Check to be sure HUE and COLOR controls are
adjusted properly.
7. SPECIFICATIONS
Screen Dimensions: 6.5 inch [146.7 (W) x 79.1 (H) mm]
Display Type: Transmissive TN LCD panel
Drive Method: TFT (thin-film transistor) active matrix
Display Format: NTSC/PAL (during VTR mode only)
Resolution: 336,960 pixels
234 (V) x 1440 (H)
Power Supply: DC 13.2V (10.8V – 15.6V)
Current Consumption: 2.0A or less
Weight: About 500 g
External Dimensions: 194 (W) x 116 (H) x 28.3 (D) mm
116
25.6
28.3
194
ADJ
POWER
SELECT
IRIS
ZOOM
CAM1/DIM
FUNC
MODE
