DVH943 11
English
6. WIRING TECHNIQUES

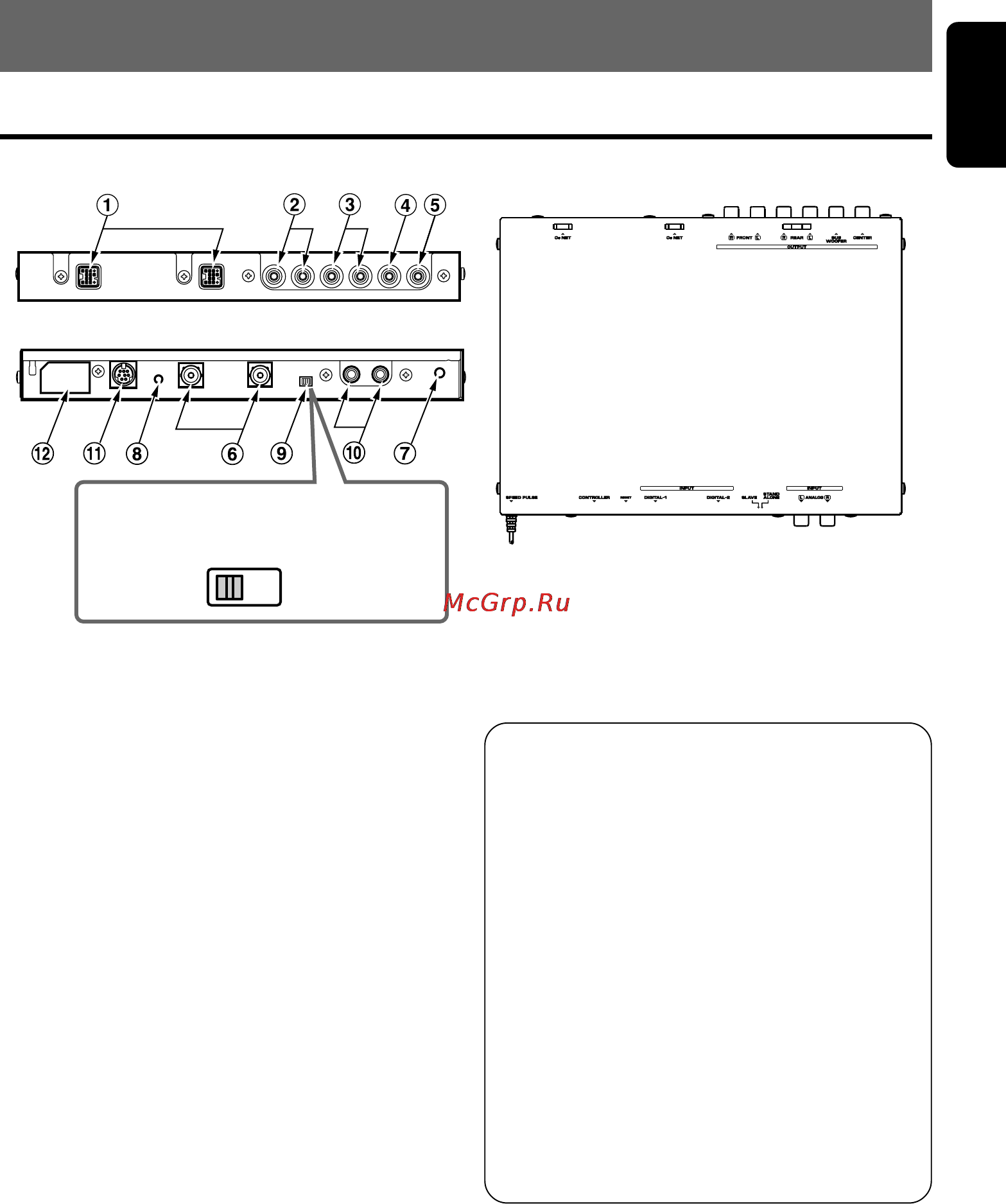

Name of Parts
SLAVE
STAND
ALONE
1 CeNET connectors
Connect to centre unit using CeNET cable.
2 Front RCA output connectors
Connect to external power amplifier using
RCA pin cable.
3 Rear RCA output connectors
Connect to external power amplifier using
RCA pin cable.
4 Sub-woofer RCA output connectors
Connect to external power amplifier using
RCA pin cable.
5 Centre speaker RCA output connectors
Connect to external power amplifier using
RCA pin cable.
6 Digital input connector
Connect to DVD/CD changer using optical
digital cable (sold separately or included).
* Connect to black connector side
7 Cable clip hole
Insert cable clip to hold optical digital cable in
place.
8 RESET switch
Press to reset circuitry if no sound is
produced.
Note:
• Be sure the CeNET cable is connected when
pressing the [RESET] switch.
Use When Connecting Optional
Control Unit (DVC923)
9 [STAND-ALONE / SLAVE] switch
• Set to STAND ALONE when connecting
a control unit.
• Leave at SLAVE position when no
control unit is connected.
0 Analog input connectors (RCA)
Connect to centre unit’s RCA 2ch output.
Note:
• The following are enabled only when a
control unit is connected.
! Control unit 8P mini DIN plug
Connect to control unit.
@ Control unit power connector
Connect control unit’s power cable here.
* Leave tape in place when not in use.
[STAND-ALONE/SLAVE] switch
* The factory default setting is
SLAVE position.
Speed pulse cord
Connect to speed pulse signal cord of the
vehicle. If you already own DXZ748RMP and use
it with Auto Volume, disconnect the speed pulse
cord and replace with the speed pulse cord
provided with this unit, then perform calibration.
