DVH943 15
English

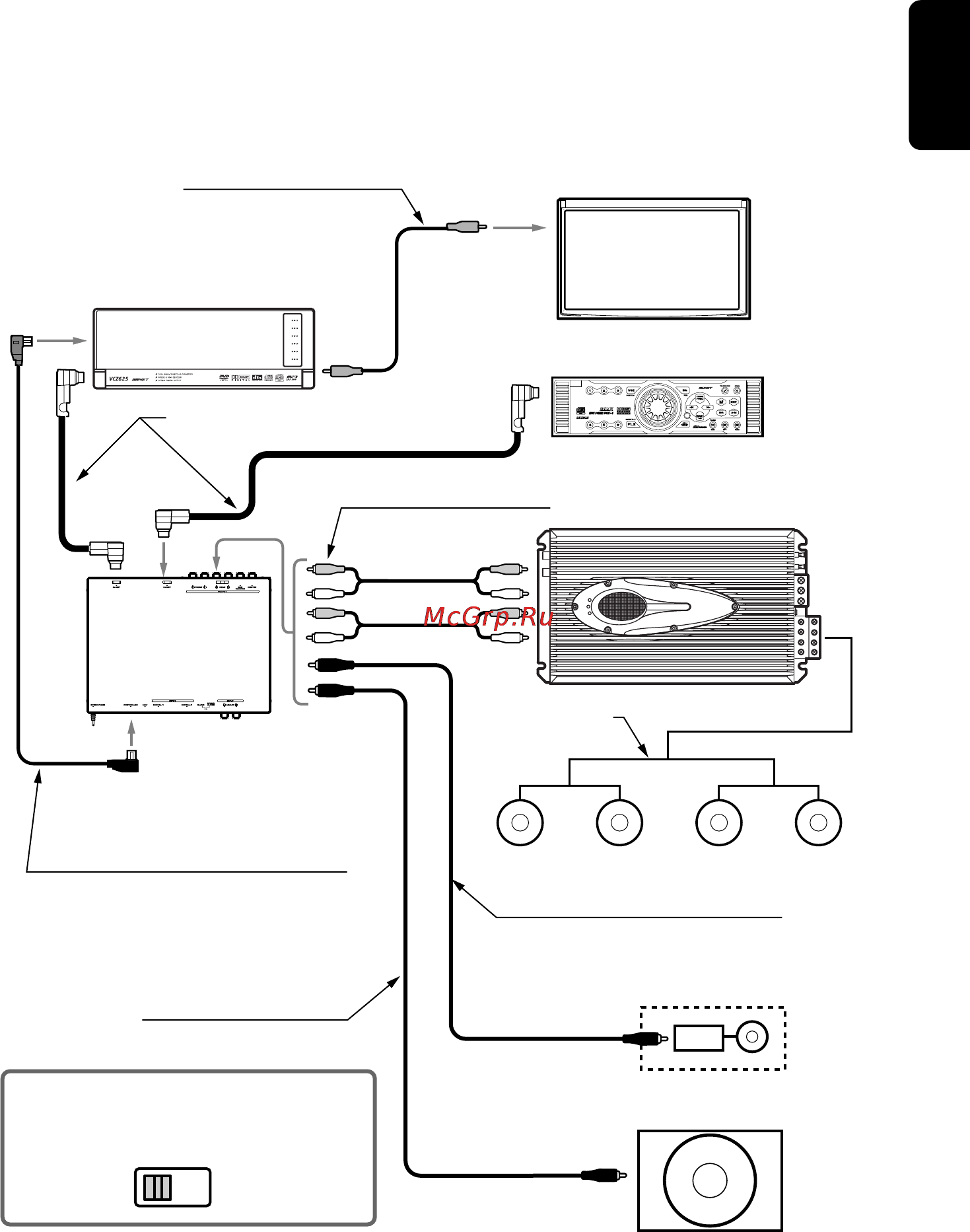

SLAVE
STAND
ALONE
Monitor
Gray
RCA video cable (yellow);
(furnished with DVD
changer)
CeNET DVD Changer
RCA pin cable
(sold separately)
4CH power amplifier
5.1ch surround
decoder
Set the 5.1ch surround decoder’s
[STAND-ALONE / SLAVE] switch to
the [SLAVE] position.
Speaker wire
Front speakers
Rear speakers
Powered centre speaker
Built-in amplifier
Amplifier
RCA pin cable
(furnished with centre speaker)
Powered sub-woofer
Built-in amplifier
RCA pin cable
(sold separately)
Optical Digital cable
DCA-005
(5 m) (furnished)
DCA-008
(1.5 m)
(sold separately)
*
Connect properly in accordance
with color of connectors
CeNET Cable (furnished with
component to be connected)
1-DIN Centre Unit
(DXZ938R)
Black
