DVH943 13
English
7. INSTALLATION
Installation Precautions
Installation Example (for installation beneath seat)

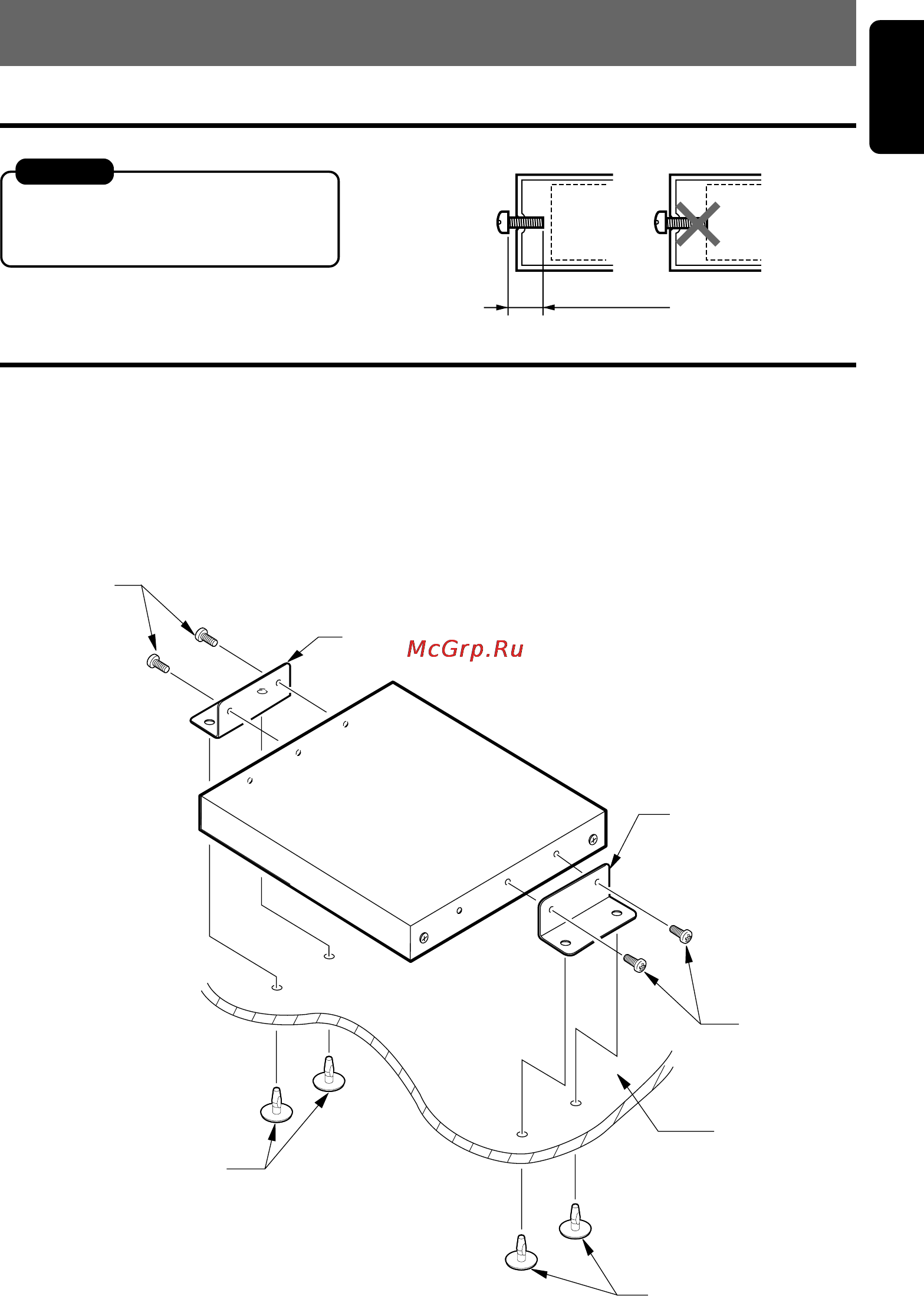

1. Use the supplied screws (M4x8) to attach the accessory mounting bracket to the sides of the unit.
• The main unit’s case has been provided with 3 screw holes on either side. Select the screw
holes required for your installation conditions.
2. Position the unit on the floor mat, then mark and open holes in the floor mat so they are aligned
with the mounting bracket’s holes.
3. Press the accessory canoe clips from the underside upward through the mat and into the mounting
bracket holes.
Canoe clips
CAUTION!
• Install correctly, using only the screws
supplied as accessories. Using other
screws may result in damage or injury.
Case Case
Damage
8 mm max.
Mounting
screws
Mounting bracket
Mounting
bracket
Canoe clips
Mounting
screws
Floor mat
