Assembly

Power Supply of the Construction Site Radio

The power supply of the construction site radio can take place

via the power-supply plug 20 or via a lithium-ion battery 19.

Operation with Battery Pack

Note: Use of batteries not suitable for the construction site ra-

dio can lead to malfunctions of or cause damage to the con-

struction site radio.

Note: The battery pack is supplied partially charged. To ensure

full capacity of the battery pack, completely charge the battery

pack in the battery charger before using for the first time.

 Use only the chargers listed in the technical data. Only

these chargers are matched to the lithium-ion batteries

permitted for use in your construction site radio.

The lithium-ion battery can be charged at any time without re-

ducing its service life. Interrupting the charging procedure

does not damage the battery.

Insert a battery into the battery port 15 in such a manner that

the connections of the battery face against the connections in

the battery port 15, and allow the battery to engage in the bat-

tery port.

The battery charge-control indicator b appears on the display

as soon as a battery pack with sufficient voltage is inserted

and the construction site radio is not connected to the mains

supply via the power-supply plug 20.

The battery charge-control indicator b indicates the current

battery pack status. When the battery charge-control indica-

tor flashes, the battery pack must be charged.

To remove the battery 19, press the release button on the

battery and pull it out of the battery port 15.

Operation with Power-supply Plug

 Observe the mains voltage! The voltage of the power

source for the power-supply plug must correspond with

the data on the type plate of the power-supply plug.

Open the protective cap of the 12 V connection socket 24. In-

sert the plug-in connector 21 of the 12 V power-supply plug

into the 12 V connection socket 24. Connect the power-sup-

ply plug to the mains supply.

 Use only the original Bosch power-supply plug intend-

ed for your construction site radio. This measure will en-

sure proper operation of the construction site radio.

After removing the plug-in connector, reattach the protective

cap of the 12 V connection socket 24 to protect against

dirt/debris.

Inserting/Replacing the Back-up Battery

In order to store the time in the construction site radio, back-

up batteries have to be inserted. Using alkali-manganese bat-

teries is recommended for this purpose.

To open the battery compartment, loosen screw 22 and re-

move battery lid 23. Insert the back-up batteries. When in-

serting, pay attention to the correct polarity according to the

representation on the outside of the battery lid.

Mount the battery lid 23 again and tighten it with screw 22.

Replace the back-up batteries when the time indication e be-

comes weaker and the construction site radio no longer

stores the time.

Always replace all batteries at the same time. Only use batter-

ies from one brand and with the identical capacity.

 Remove the back-up batteries from the construction

site radio when not using it for longer periods. When

storing for longer periods, the back-up batteries can cor-

rode and discharge themselves.

Operation

 Protect the construction site radio against moisture

and direct sunlight. The construction site radio is suitable

only for indoor use.

Audio Operation

Switching On and Off

To switch on the construction site radio, press the On/Off

button 2. The display 1 goes on and the last set audio source

after switching off the construction site radio is activated.

Note: When operating the first time via battery pack or when

not having used the construction site radio for a longer peri-

od, it may be necessary to press the On/Off button 2 several

times or longer, to switch the radio on.

Each time after pressing a button, the display 1 is illuminated

for several seconds.

To switch off the construction site radio, press the On/Off

button 2 again. The current audio source setting is stored.

To save energy, only switch the construction site radio on

when using it.

Adjusting the Volume

After switching on the construction site radio, a mean volume

level (value 10) is always set.

To increase the volume, press the “Vol +” button 5; to reduce

the volume, press the “Vol –” button 3. The volume setting

“VL” is indicated with a value between 0 and 20 for a few sec-

onds in indicator e on the display.

Before adjusting or changing a radio station, set the volume to

a lower setting; before starting an external audio source, set

the volume to medium.

The sound can be switched off by pressing the “Mute” button

12. To switch the sound on again, either press the “Mute”

button 12 once more or either of the “Vol +” 5 or “Vol –” but-

tons 3.

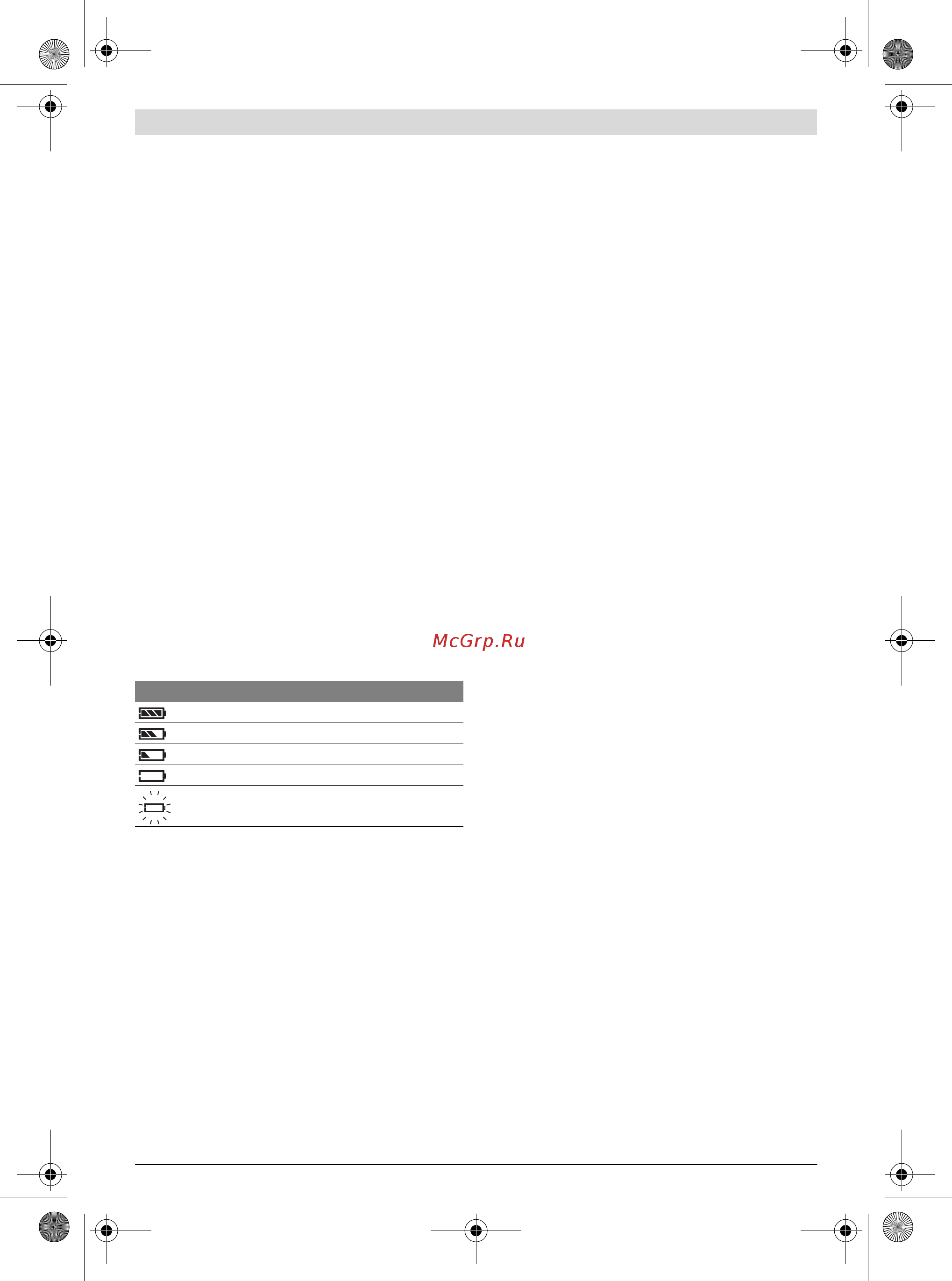

Indication Capacity

 2/3

 1/3

<1/3

Reserve

Battery pack empty
