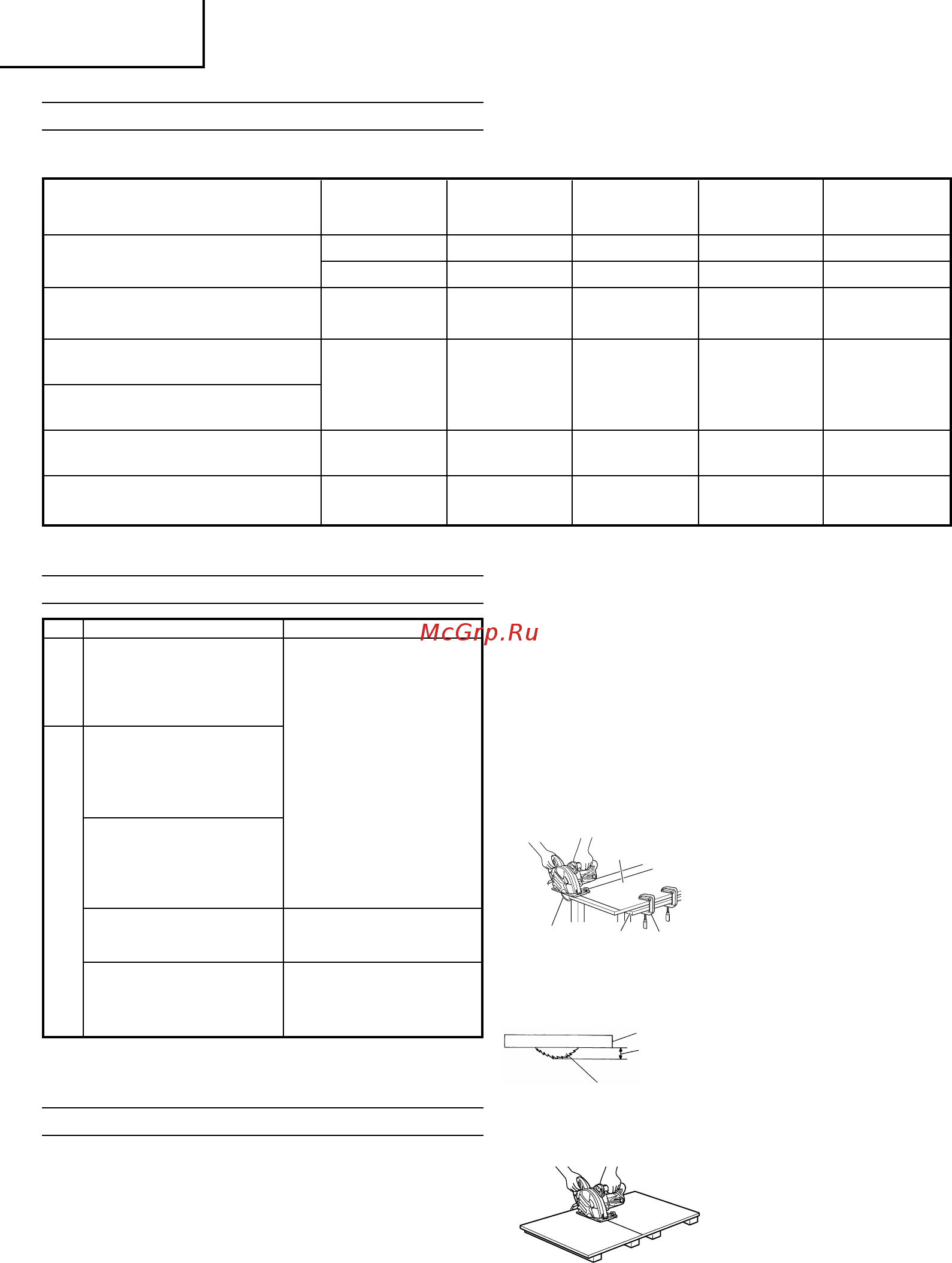

OPTIONAL ACCESSORIES (sold separately)
Carbide tipped saw blade
Blade
Outer Hole Tip Thickness of Number
diameter diameter width saw blade of teeth
For cutting soft steel materials
180 mm 20 mm 1.8 mm 1.5 mm 34 teeth
185 mm 20 mm 2.0 mm 1.6 mm 38 teeth
For cutting soft steel materials
185 mm 20 mm 2.0 mm 1.6 mm 38 teeth
(Low noise type)
For cutting thin,
soft steel materials
185 mm 20 mm 2.0 mm 1.6 mm 48 teeth
For cutting thin, soft steel
materials (Low noise type)
For cutting aluminium sash
185 mm 20 mm 2.0 mm 1.4 mm 60 teeth
materials
For cutting stainless steel
materials
180 mm 20 mm 1.8 mm 1.4 mm 56 teeth
Optional accessories are subject to change without notice.
APPLICATION
Blades
Soft steel use blade
Tipped saw blades:
For cutting soft steel
materials
For cutting soft steel
materials (Low noise type)
Tipped saw blades:
For cutting thin, soft steel
materials
For cutting thin, soft steel
materials (Low noise type)
Tipped saw blades:
Aluminum sash material
cutting use
Tipped saw blades:
Stainless steel material
cutting use
Uses
嘷
For cutting various types
of soft steel materials
such as flat steel strips,
pipe, steel channels (“C”
channels, “L” angles,
etc.).
∗
Caution: Cannot be used
for cutting tempered
steel materials.
嘷
For cutting aluminum
sash materials only.
嘷
For cutting stainless
steel materials such as
flat steel sheets, round
pipes, etc.
Standard
accessories
Optional accessories
䡬 Refer to Page 11: “SELECTING THE CORRECT TIPPED
SAW BLADE FOR DIFFERENT MATERIALS”
PRIOR TO OPERATION
1. This product has double insulation. However, to
avoid electric shocks, be sure to use a power source
that is equipped with a circuit breaker to cope with
power leakage and sudden surges.
2. Power source
Ensure that the power source to be utilized con-
forms to the power requirements specified on the
product nameplate.
3. Power switch
Ensure that the power switch is in the OFF position.
If the plug is connected to a receptacle while the
power switch is in the ON position, the power tool
will start operating immediately, which could cause
a serious accident.
4. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
5. Preparing a wooden work bench
The outer edge of the
tipped saw blade projects
from the bottom of the
work piece being cut.
Therefore, the material
should be placed on a work
bench when cutting.
In addition, care should be
taken to see that the tipped
saw blade and lower guard
do not come into contact
with the surface below the
work piece (e.g., the surface
of the work bench or the
ground, floor, etc.). To
make sure that this does
not happen, the work piece
(material to be cut) should
be at a height above the
surface below the work
piece that is equal to at
least three times the
distance (width) that the
blade projects below the
bottom of the work piece.
In situations like this, it is safer to make sure that
the material is firmly secured in place using a vise
so that both hands can be used to operate the
metal cutting saw.
Work piece
Work piece to
be cut
ViseWork
bench
Tipped
saw blade
Projection
distance of
the tipped
saw blade
Tipped saw
blade
