5
English
APPLICATIONS
Rotation and hammering function
○ Drilling anchor holes
○ Drilling holes in concrete
○ Drilling holes in tile
Rotation only function
○ Drilling in steel or wood
(with optional accessories)
○ Tightening machine screws, wood screws
(with optional accessories)
Hammering only function
(Model DH25DAL and DH36DAL only)
○ Light-duty chiselling of concrete, groove digging and
edging.
SPECIFICATIONS
The specifi cations of this machine are listed in the Table on
page 158.
NOTE
Due to HITACHI’s continuing program of research and
development, the specifi cations herein are subject to
change without prior notice.

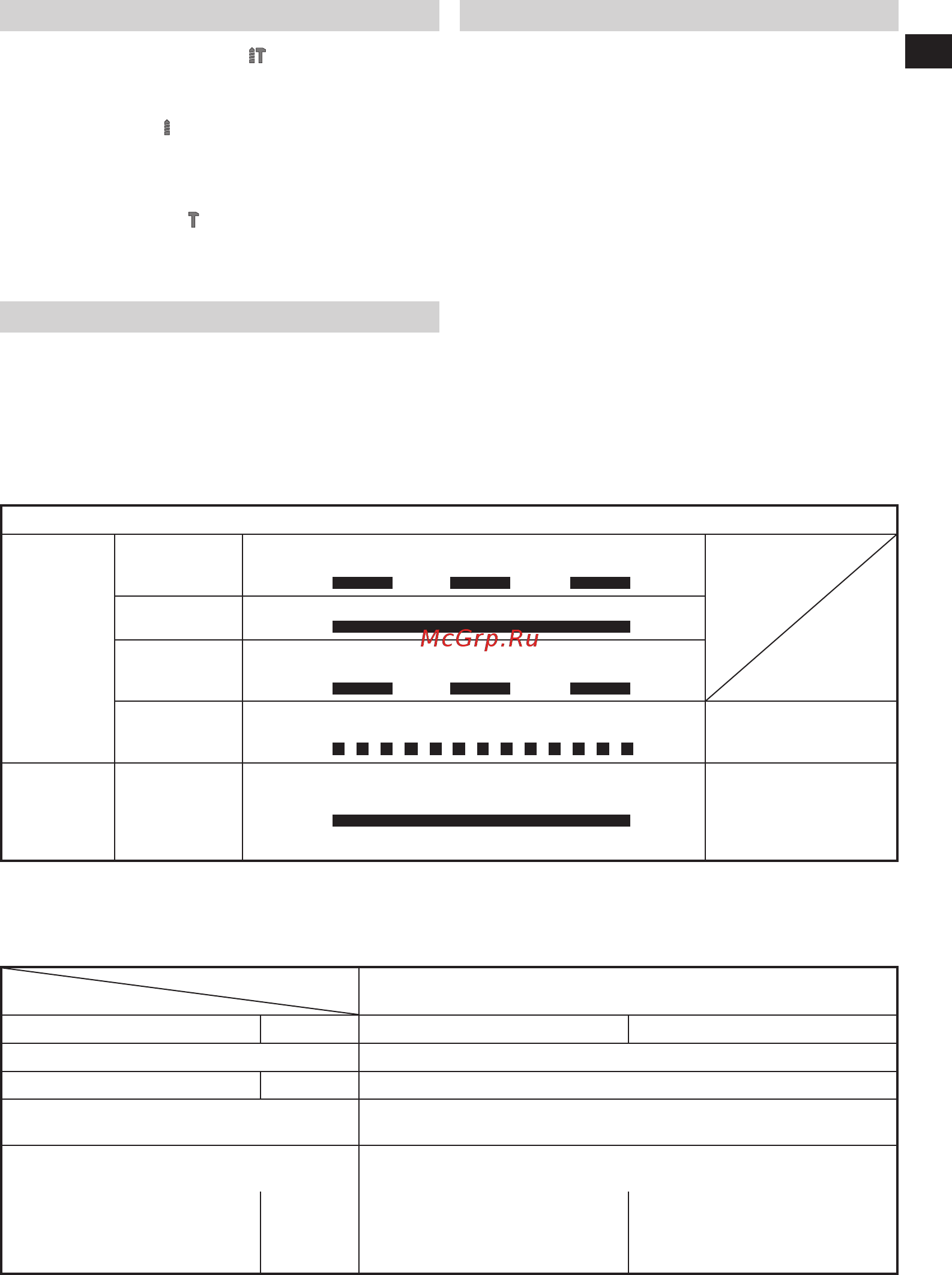

Table 1
Indications of the pilot lamp
The pilot
lamp lights or
blinks in red.
Before
charging
Blinks
Lights for 0.5 seconds. Does not light for 0.5
seconds. (off for 0.5 seconds)
While charging Lights
Lights continuously
Charging
complete
Blinks
Lights for 0.5 seconds. Does not light for 0.5
seconds. (off for 0.5 seconds)
Charging
impossible
Flickers
Lights for 0.1 seconds. Does not light for 0.1
seconds. (off for 0.1 seconds)
Malfunction in the
battery or the charger
The pilot
lamp lights in
green.
Overheat
standby
Lights
Lights continuously
Battery overheated.
Unable to charge.
(Charging will
commence when
battery cools)
(2) Regarding the temperatures and charging time of the battery
The temperatures and charging time will become as shown in Table 2.
Table 2
Charger
Battery
UC36YRSL
Charging voltage V 25.2 36
Type of battery Li-ion
Weight kg 0.7
Temperatures at which the battery can be
recharged
0oC – 50oC
Charging time for battery capacity, approx.
(At 20oC)
2.0 Ah
2.5 Ah
2.6 Ah
3.0 Ah
min.
min.
min.
min.
40 (7 cells)
–
–
60 (14 cells)
60 (10
cells
)
75 (10
cells
)
80 (20
cells
)
–
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle.
When connecting the plug of the charger to a receptacle,
the pilot lamp will blink in red (At 1-second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig. 2.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light continuously in
red.
When the battery becomes fully recharged, the
pilot lamp will blink in red (At 1-second intervals).
(See Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or the
rechargeable battery.
0000Book_DH25DL.indb 50000Book_DH25DL.indb 5 2014/11/11 10:04:412014/11/11 10:04:41
