English

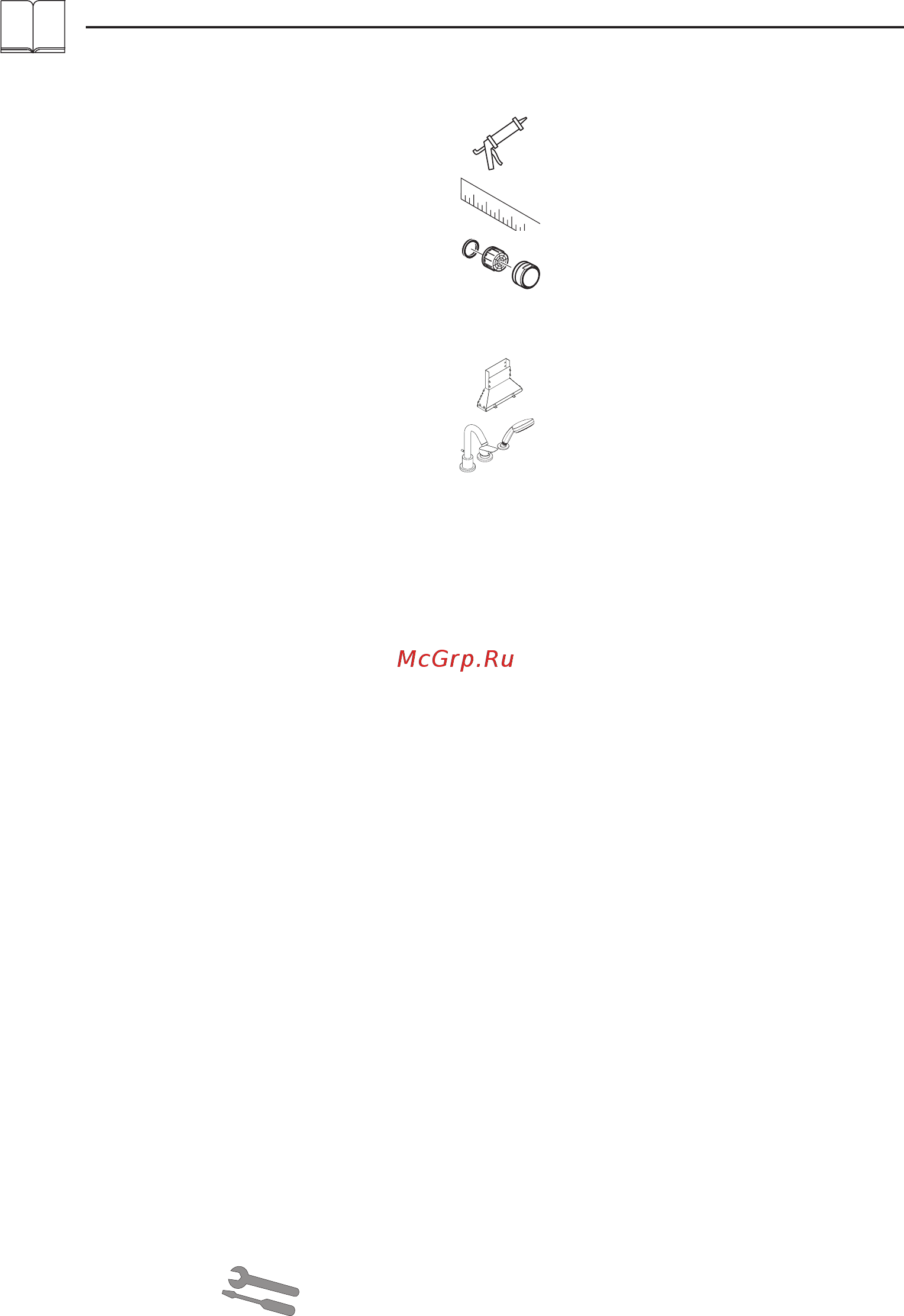

Finish set (see page 36)

Special accessories (order as an

extra)

Secuﬂex Box #28389000 (see page 35)

Spare parts (see page 35)

Dimensions (see page 34)

Do not use silicone containing acetic acid!

Symbol description



Safety Notes

 Gloves should be worn during installation to prevent

crushing and cutting injuries.

 The hot and cold supplies must be of equal pres-

sures.

Installation Instructions

• Prior to installation, inspect the product for transport

damages. After it has been installed, no transport or

surface damage will be honoured.

• The pipes and the ﬁxture must be installed, ﬂushed

and tested as per the applicable standards.

• The plumbing codes applicable in the respective

countries must be observed.

• When installing the bath ﬁtting set, it must be guar-

anteed, that each part can be within reached and if

necessary removed.To avoid damages of entering

water by the passage of the hose, the area under the

tub must be protected against leacking water.

• Do a leak test once a year.

Technical Data

Operating pressure: max. 1 MPa

Recommended operating pressure: 0,1 - 0,5 MPa

Test pressure: 1,6 MPa

(1 MPa = 10 bar = 147 PSI)

Hot water temperature: max. 70°C

Recommended hot water temp.: 65°C

Thermal disinfection: max. 70°C / 4 min

The product is exclusively designed for drinking water!

Assembly see page 31
