User Manual of 4-inch High Speed Dome

Chapter 1 Overview

1.1 Description

Integrated with the built-in pan/tilt unit, the high speed dome features highly sensitive response

and reliable performance. The speed dome can be adopted in various surveillance fields with its

full-integral functions and features, such as corridor, large venue, meeting room, station, community,

etc.

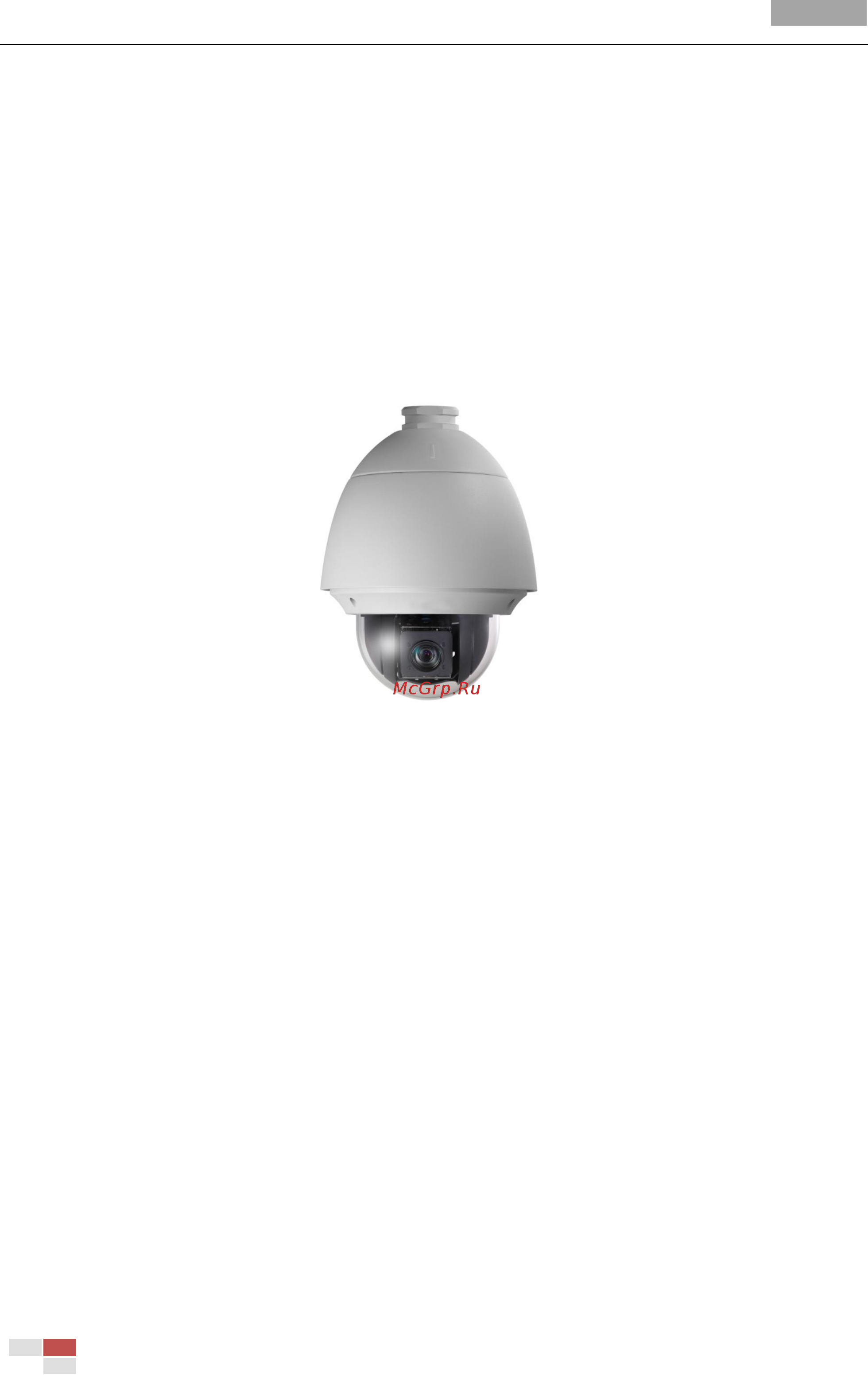

Figure 1-1 Appearance

1.2 Functions

OSD (On Screen Display)

The on-screen display is an image superimposed on a screen picture, used for displaying

information and menu.

Self-adaptive Protocol

The speed dome is compatible with PELCO-D, PELCO-P, PRIVATE-Code, VICON and KALATEL-312

protocol, etc., and is capable of being self-adaptive to these protocols without selecting protocol by

DIP switch settings.

Keyboard Control

The pan/tilt movement and zoom actions of dome can be controlled by the control keyboard, DVR,

matrix, etc.

Limit Stops

The dome can be programmed to move within the limit stops (left/right, up/down) which are

configurable by the control keyboard, DVR or client application software.

Auto Scan

The dome provides 5 scanning modes: pan scanning, tilt scanning, frame scanning, random scanning
