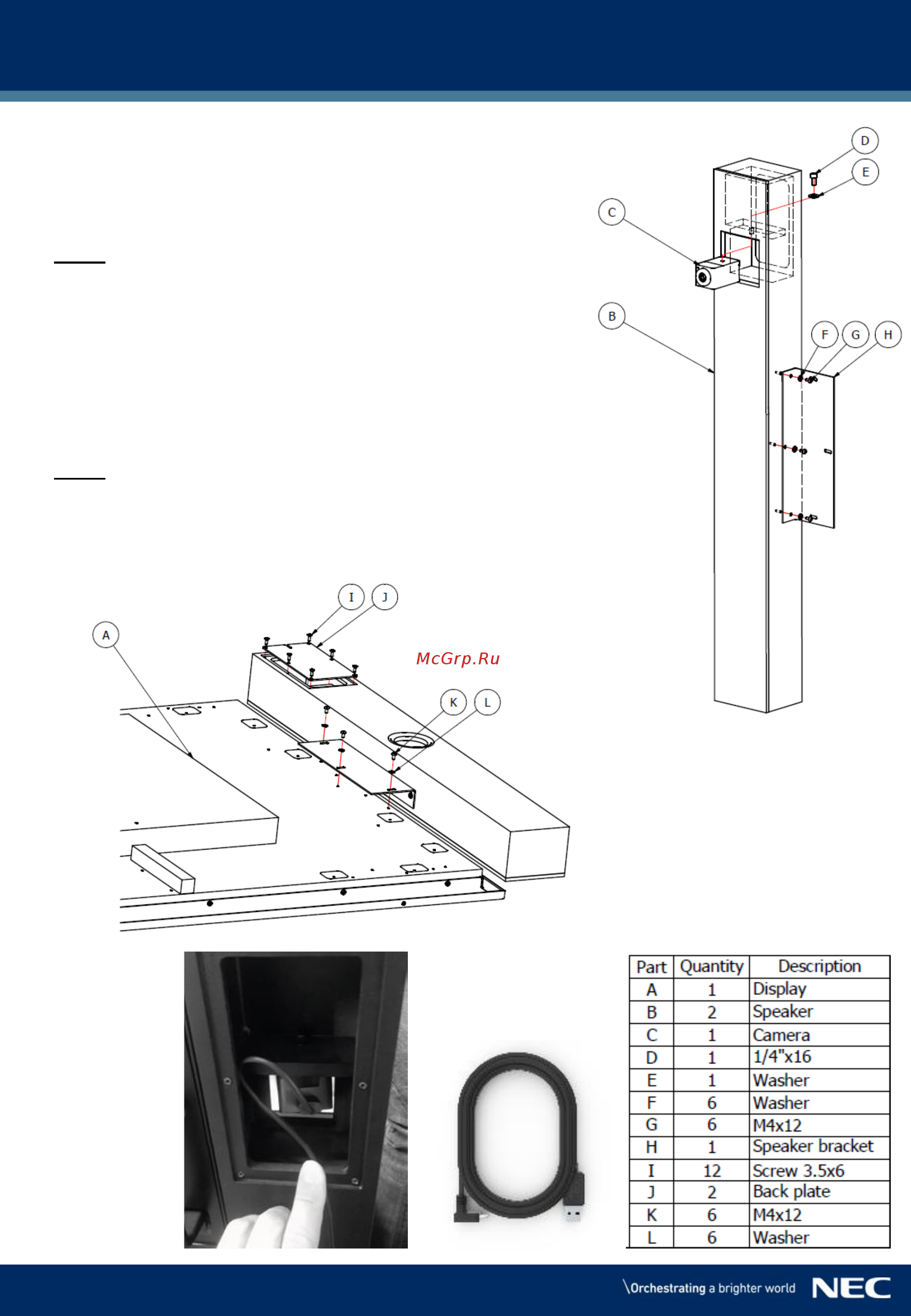

Assembly | 65” Speaker System & Camera

Picture 2

Picture 1

1) Mount the speaker brackets (H) onto the speakers (B) using

6x M4x12 screws (G) and 6x washers (F)

2) Mount the Huddly camera (C) into the opening of the left

(seen from the front) speaker (B) using ¼”x16 screw (D)

and washer (E)

NOTE: Do not torque the screw too tightly. That way you will

still be able to mechanically adjust the position of the Huddly

camera after the installation.

3) Connect the 1m angled USB 3.0 Type C cable (as shown on

picture 1) to the Huddly camera

4) Mount the back plates (J) onto the rear side of the speakers

(B) using 12x 3.5x6 screws (I)

5) Carefully guide the USB cable of the Huddly camera through

the long hole of the speaker back plate (J)

NOTE: If you loop the USB cable (as shown in picture 2)

you will be able to manually adjust the position of the

camera.

6) Mount the speakers (B) to the 65” InfinityBoard display (A)

using 6x M4x12 screws (K) and 6x washers (L)
