Nec InfinityBoard 65" [7/14] Assembly

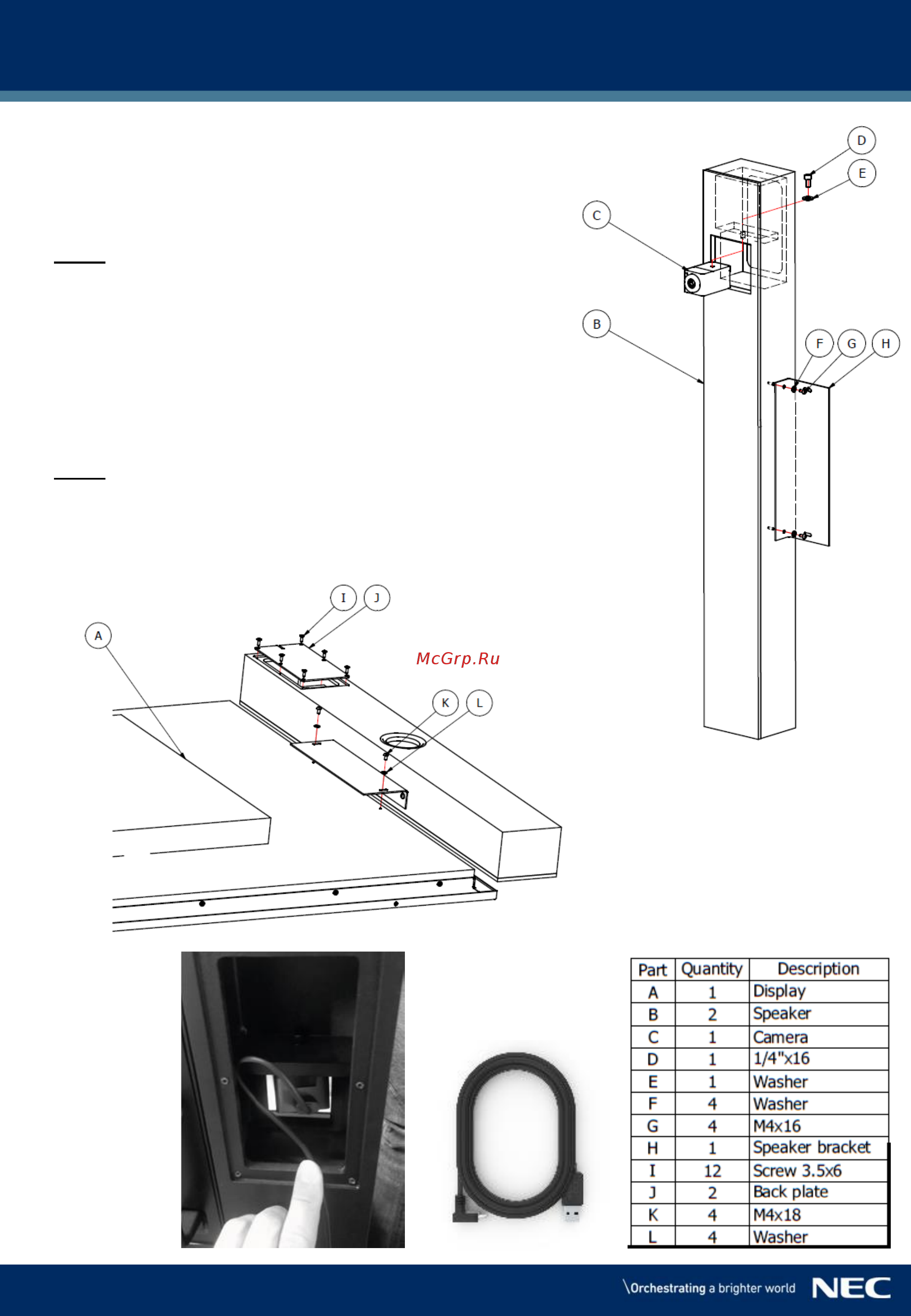

Assembly | 84” Speaker System & Camera

Picture 2

Picture 1

1) Mount the speaker brackets (H) onto the speakers (B)

using 6x M4x16 screws (G) and 6x washers (F)

2) Mount the Huddly camera (C) into the opening of the

left (seen from the front) speaker (B) using ¼”x16

screw (D) and washer (E)

NOTE: Do not torque the screw too tightly. That way you

will still be able to mechanically adjust the position of the

Huddly camera after the installation.

3) Connect the 1m angled USB 3.0 Type C cable (as shown

on picture 1) to the Huddly camera

4) Mount the back plates (J) onto the rear side of the

speakers (B) using 12x 3.5x6 screws (I)

5) Carefully guide the USB cable of the Huddly camera

through the long hole of the speaker back plate (J)

NOTE: If you loop the USB cable (as shown in picture 2)

you will be able to manually adjust the position of the

camera.

6) Mount the speakers (B) to the 84” InfinityBoard display

(A) using 6x M4x18 screws (K) and 6x washers (L)
