Connecting Cables

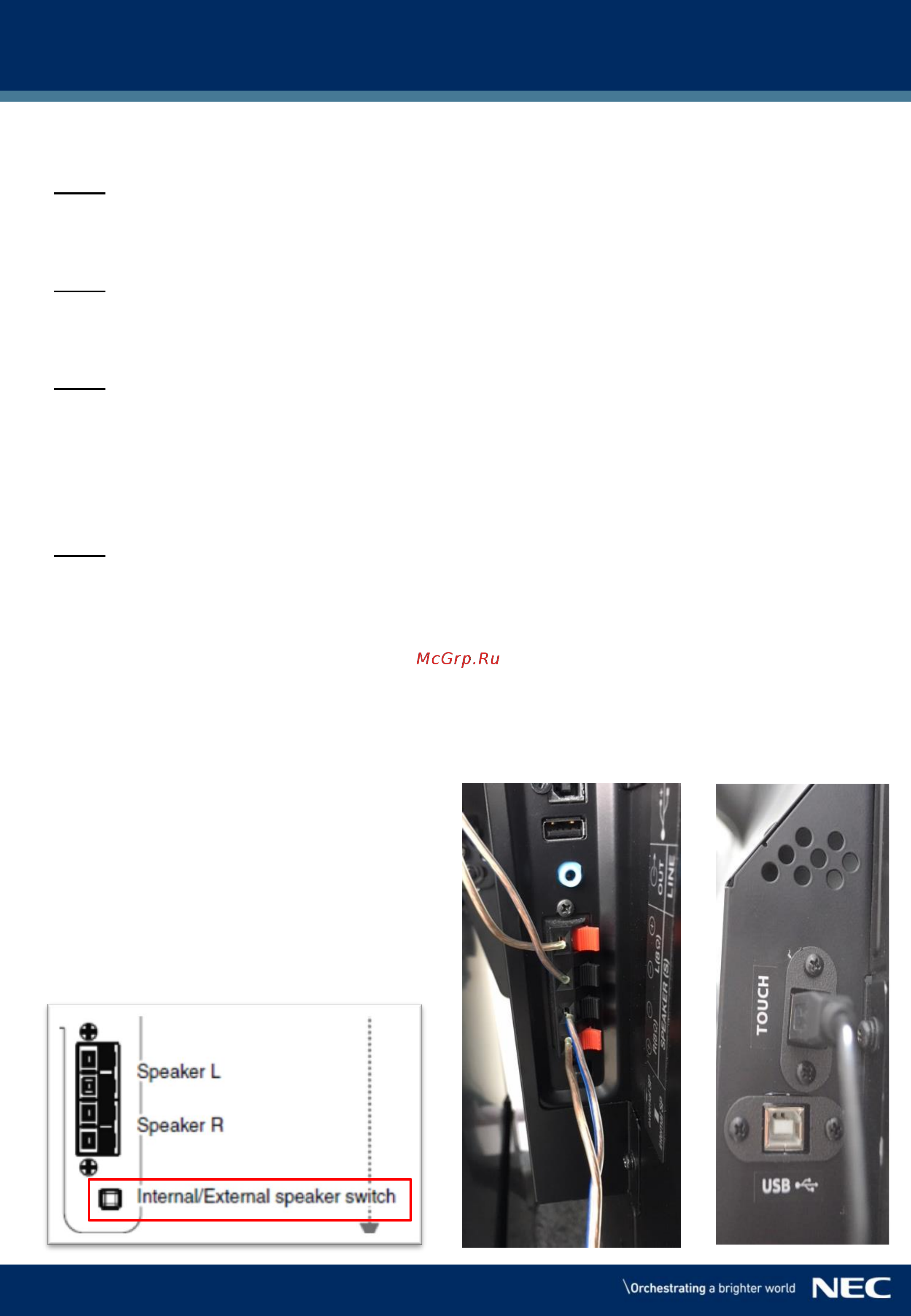

1) Enable the USB Hub: Connect the USB Type-B (marked with “USB”) to one USB

input of the OPS PC

NOTE: For use with external PC, connect the USB Type-B (marked with “USB”) to

the USB input of the external PC.

2) Connect the Huddly camera: Connect the USB cable of the camera to one USB

input of the OPS PC

NOTE: For use with external PC, NEC can provide certified USB extension cables to

connect the Huddly camera.

3) Enable the touch functionality: Connect the USB Type-B (marked with “TOUCH”) to

one USB input of the InfinityBoard USB hub

NOTE: For use with external PC, connect the USB Type-B (marked with “TOUCH”) to

the USB input of the external PC (as shown on picture 5).

4) Connect the speakers: Connect the audio cables to the terminals on the speakers

and to the speaker terminals on the InfinityBoard displays (as shown on picture 6).

Red terminal is plus (+) and black terminal is minus (-).

5) Push the button “Internal/External speaker switch” below the speaker terminals on

the display to enable the external speakers (as shown on picture 7)

NOTE: Please power off the InfinityBoard when you use the Internal/External

speaker switch.

Picture 5

Picture 6

Picture 7
