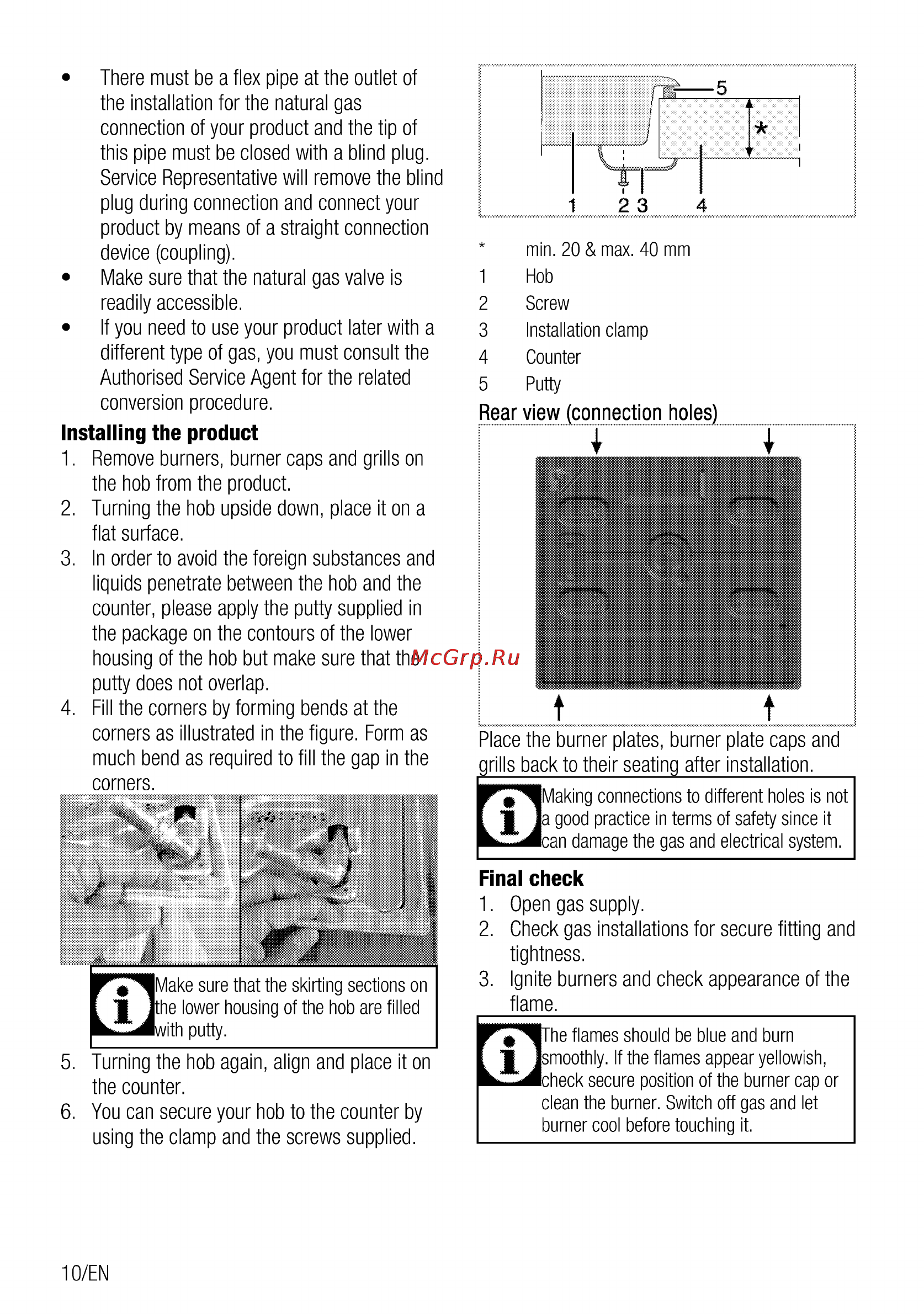

There must be a flex pipe at the outlet of the installation for the natural gas connection of your product and the tip of this pipe must be closed with a blind plug Service Representative will remove the blind plug during connection and connect your product by means of a straight connection device coupling Make sure that the natural gas valve is readily accessible If you need to use your product later with a different type of gas you must consult the Authorised Service Agent for the related conversion procedure min 20 max 40 mm 1 Hob 2 Screw 3 Installation clamp 4 Counter 5 Putty Installing the product 1 Remove burners burner caps and grills on the hob from the product 2 Turning the hob upside down place it on a flat surface 3 In order to avoid the foreign substances and liquids penetrate between the hob and the counter please apply the putty supplied in the package on the contours of the lower housing of the hob but make sure that the putty does not overlap 4 Fill the corners by forming bends at the corners as illustrated in the figure Form as much bend as required to fill the gap in the Place the burner plates burner plate caps and grills back to their seating after installation Making connections to different holes is not a good practice in terms of safety since it can damage the gas and electrical system S Final check 1 Open gas supply 2 Check gas installations for secure fitting and tightness 3 Ignite burners and check appearance of the flame ___________________________ 5 Turning the hob again align and place it on the counter 6 You can secure your hob to the counter by using the clamp and the screws supplied 10 EN F e lihe flames should be blue and burn I 1 Jsmoothly If the flames appear yellowish heck secure position of the burner cap or clean the burner Switch off gas and let burner cool before touching It
