4.4 CLIMBING HOLD REPLACEMENT

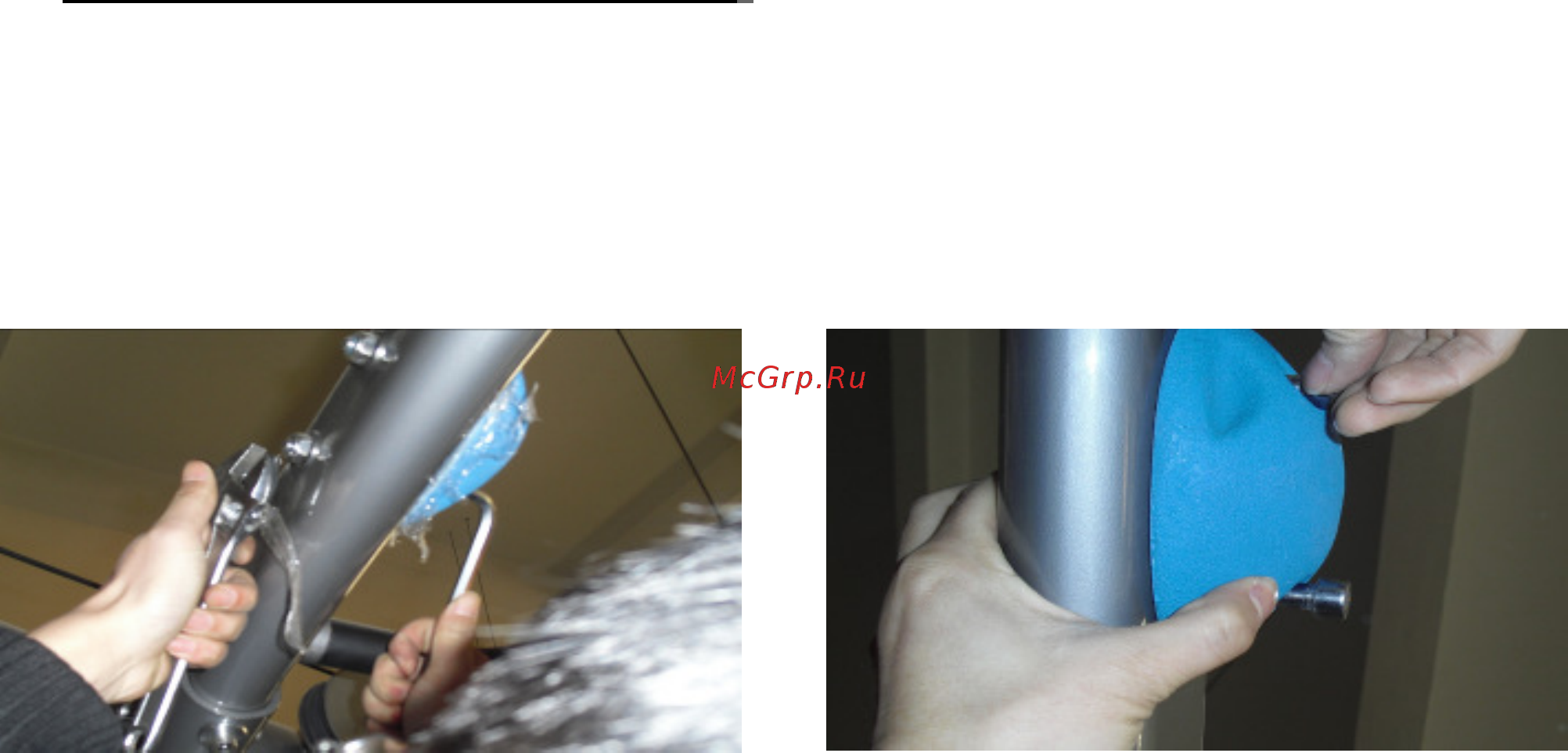

1) Use a 17MM Open-Ended Wrench And 8MM L-Shaped Allen Wrench to take off the old

adjustment pin set (Figure A).

2) Install a new Climbing Hold(Figure B).

Figure A Figure B
