Clarion MAX678RVD [73/77] Wire connection
![Clarion MAX678RVD [73/77] Wire connection](/views2/1003800/page73/bg49.png)
77
MAX678RVD
English
INSTALLATION
MANUAL

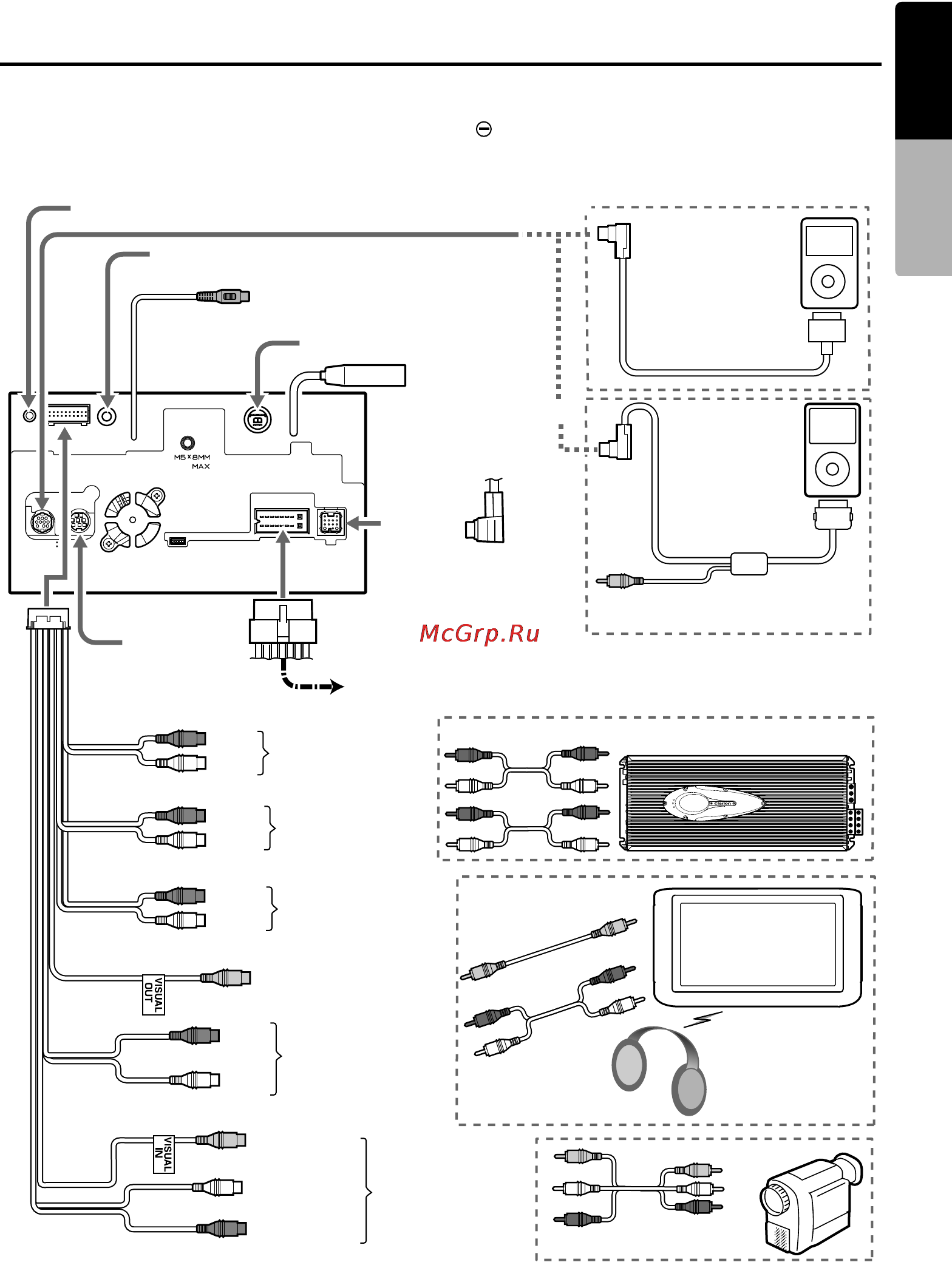

7. WIRE CONNECTION
Note:
*1: Do NOT connect the NAX943DV or NAX9500E to the CCD terminal of the main unit; they can only be
connected to the RGB input terminal of the main unit via RGB cable.
iPod
(CCA-670)
(CCA-673)
Connector cable
(or)
Connect to the video of
visual input terminal.
iPod
with video
(WH143H/
WH253H)
• Before installing, be sure to disconnect the negative cable of the car battery.
• In the optional devices, the RCA Pin and the Connector cable are separately-sold items.
Note:
CeNET
terminal
Red
White
Red
White
Right
left
Front audio output
terminal
Right
left
Rear audio output
terminal
Right
left
Non fader
output terminal
Grey
Black
Purple
Red
White
Yellow
Yellow
White
Red
Video output terminal
TV tuner input terminal
Video
Audio (left)
Audio (right)
Visual input
terminal
Optical output terminal
Radio
antenna jack
Connector cable
Wireless
Headphone
VTR etc.
4-Channel Amplifier
Right
Left
(2-ZONE
output terminal)
Grey
Rear monitor
Black
Red
Green
Red
White
CCD terminal (* 1)
RGB input
terminal
Steering wheel remote control input terminal
Refer to the following page.
