CP894 Series

Impact Wrench

Original Instructions

contents or part thereof is prohibited. This applies in particular to

trademarks, model denominations, part numbers and drawings.

Use only authorized parts. Any damage or malfunction caused

by the use of unauthorized parts is not covered by Warranty or

Product Liability.

MANUFACTURER’S LIMITED WARRANTY

Limited Warranty: The “Products” of the Chicago Pneumatic Tool

Co. LLC (“CP”) are warranted to be free from defects in material and

workmanship for one year from the date of purchase. This Warranty

applies only to Products purchased new from CP or its authorized dealers.

Of course, this Warranty does not apply to products which have been

abused, misused, modied, or repaired by someone other than CP or its

Authorized Service Representatives. If a CP Product proves defective in

material or workmanship within one year after purchase, return it to any

CP Factory Service Center or Authorized Service Center for CP tools,

transportation prepaid, enclosing your name and address, adequate

proof of date of purchase, and a short description of the defect. CP will,

at its option, repair or replace defective Products free of charge. Repairs

or replacements are warranted as described above for the remainder of

the original warranty period. CP’s sole liability and your exclusive remedy

under this Warranty is limited to repair or replacement of the defective

Product. (There Are No Other Warranties Expressed Or Implied And

CP Shall Not Be Liable For Incidental, Consequential, Or Special

Damages, Or Any Other Damages, Costs Or Expenses Excepting

Only The Cost Or Expense Of Repair Or Replacement As Described

Above.)

English

Noise & Vibration Declaration

Sound pressure level 100 dB(A), uncertainty 3 dB(A), in

accordance with EN ISO 15744. For sound power, add 11

dB(A).

Vibration value:

8.3 m/s², uncertainty k = 2.7 m/s², re. ISO 28927-2.

Declaration of noise and vibration emission

All values are current as of the date of this publication. For the

latest information please visit cp.com.

These declared values were obtained by laboratory type

testing in accordance with the stated standards and are

suitable for comparison with the declared values of other

tools tested in accordance with the same standards. These

declared values are not adequate for use in risk assessments

and values measured in individual work places may be higher.

The actual exposure values and risk of harm experienced by

an individual user are unique and depend upon the way the

user works, the workpiece and the workstation design, as well

upon the exposure time and the physical condition of the user.

We, Chicago Pneumatic, cannot be held liable for the

consequences of using the declared values, instead of

values reecting the actual exposure, in an individual risk

assessment in a work place situation over which we have no

control.

This tool may cause hand-arm vibration syndrome if its use is

not adequately managed. An EU guide to managing hand-arm

vibration can be found at http://www.humanvibration.com/EU/

VIBGUIDE.htm

We recommend a programme of health surveillance to

detect early symptoms which may relate to noise or vibration

exposure, so that management procedures can be modied to

help prevent future impairment.

INSTRUCTION MANUAL

Machine Type:

This product is designed for installing and removing threaded

fasteners in wood, metal and plastic. No other use permitted.

For professional use only.

Air Supply Requirements

1. Supply tool with 90 psig (6.2 bar) of clean, dry air. Higher

pressure drastically reduces tool life.

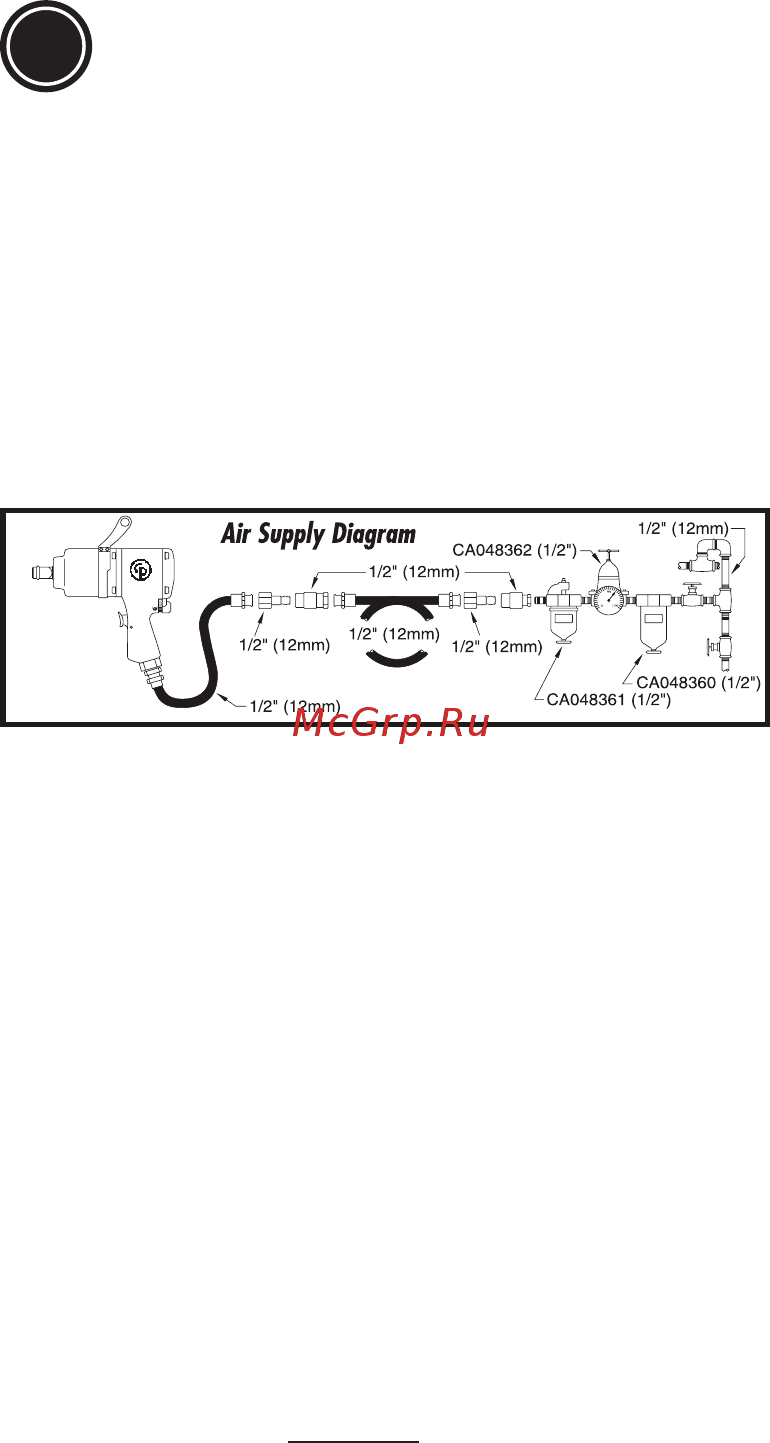

2. Connect tool to air line using pipe, hose and tting sizes

shown in the diagram below.

Lubrication

1. Use an air line lubricator with SAE #10 oil, adjusted to

two (2) drops per minute. If an air line lubricator cannot be

used, add air motor oil to the inlet once a day.

2. Check clutch oil once each month. Use 3.3 oz. (100ml) of

SAE #30 oil or equivalent.

Operation

1. The intended use of this impact wrench is with impact rated

sockets operating upon threaded fasteners. To operate,

pull trigger on handle. To operate in forward rotation, push

the reverse pin. To operate in reverse, pull the reverse pin.

2. This impact wrench is equipped with a regulator to enable

adjustment of output power. Turn the regulator knob

counter-clockwise for maximum power, clockwise to reduce

power.

Maintenance

1. After rst year, disassemble and inspect air motor and

impacting clutch every three (3) months if the tool is used

every day. Replace damaged or worn parts.

2. High wear parts are underlined in the parts list.

3. To keep downtime to a minimum, the following service kits

are recommended:

Tune-Up Kit: see part list 8940169231

Technical Data

Free speed; 4100RPM
