English

6. INSTALLATION

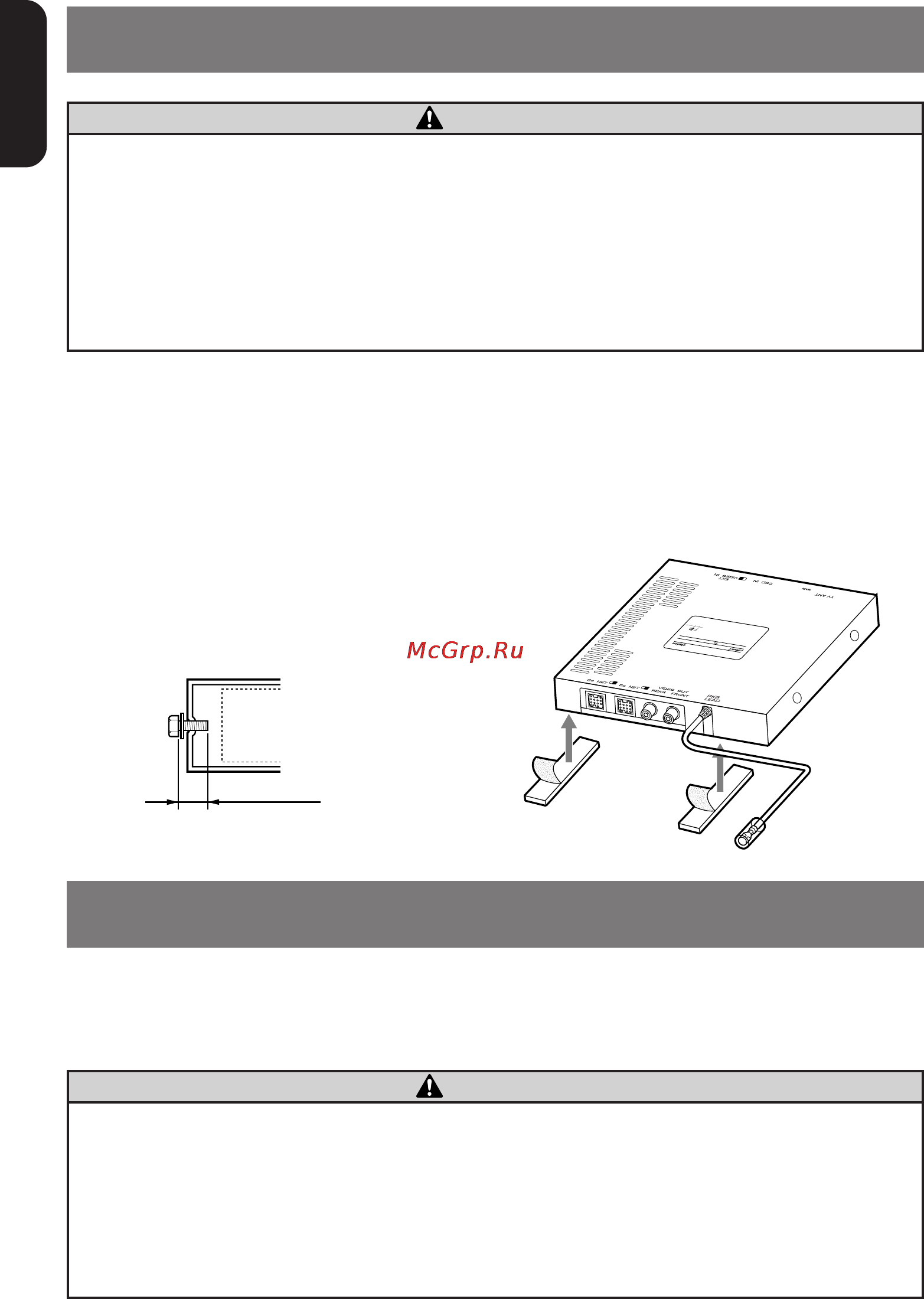

■ Installation Using Screws

1. When using the installation holes at the sides

of the unit, use M4 ✕ 8 screws. Using screws

other than the specified screws may cause a

malfunction.

2. If you are going to drill holes in the dashboard,

make sure beforehand that there are no

harnesses behind the dashboard at that

position or nearby.

Max. 8 mm

Chassis

■ Installation Using Velcro Tape

1. Apply Velcro tape to the bottom surface of the

unit.

2. Attach the unit to the floor carpet beneath the

seat.

7. CAUTIONS ON WIRING

Pay particular attention to the following points when laying out the cords.

• Keep the unit’s cables as far away as possible from the vehicle’s wiring bundles.

• Keep the unit’s RCA pin cord and the power cord separated as far as possible.

CAUTION

• Disconnect the battery negative cable before connecting the wiring.

• If you are making holes in the vehicle body in order to install the unit, first confirm the

position of pipes, tanks and electrical wiring to avoid contact and interference.

• When installing the wiring for connection cords on a vehicle equipped with airbags, do

not install the wiring where it may affect the airbag system.

• Do not cover the ventilation holes and heat-radiating parts of the tuner.

CAUTION

• When you have finished connecting the cords, secure them with clamps and insulating

tape for protection.

• Make sure that the connection cables will not get caught on burrs and edges of the metal

parts under the seat. It could damage the cables and cause noise from the unit.

• To assist safe driving, connect the parking brake connection terminal to the lead wire on

the lamp side of the parking brake lamp switch.
