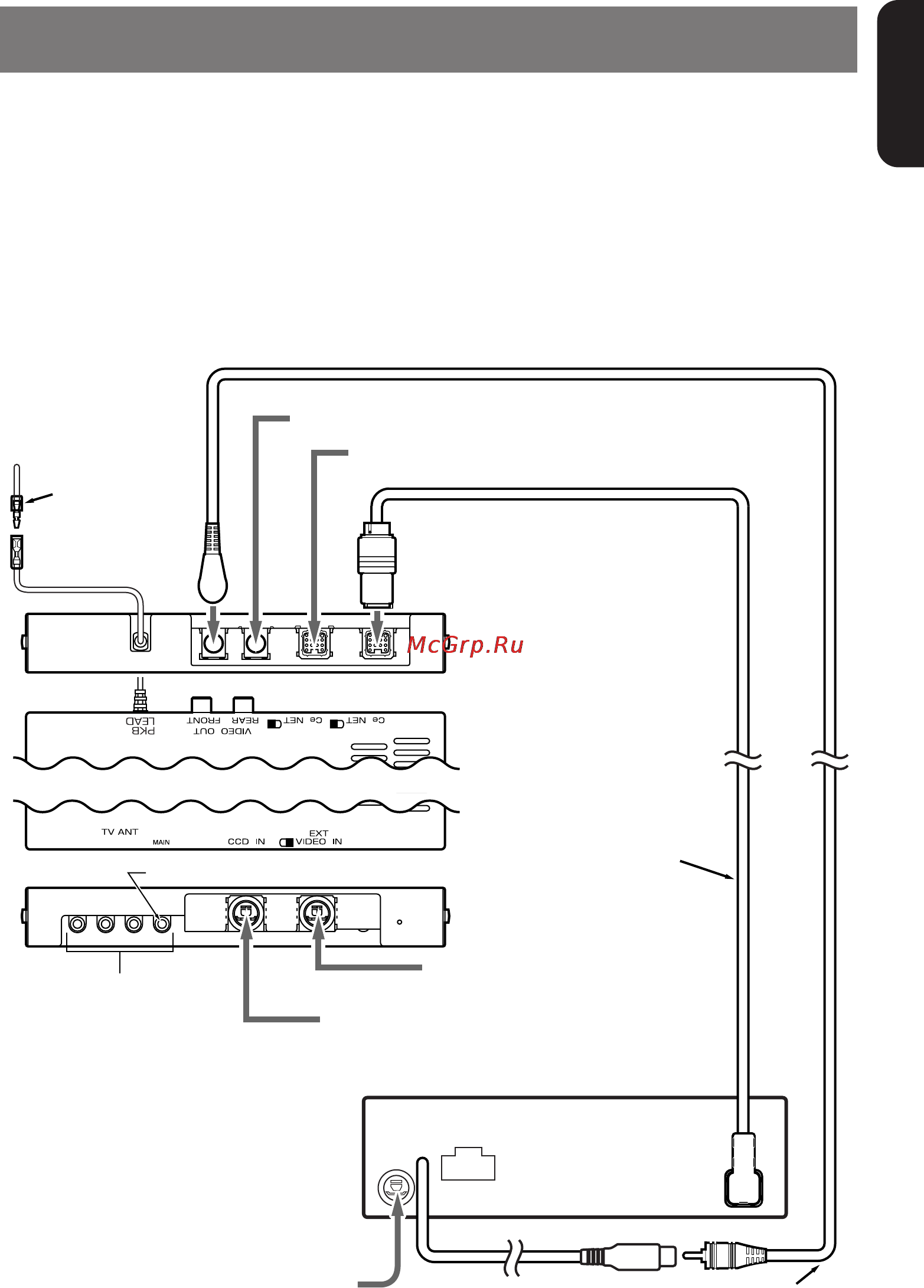

8. WIRING CONNECTIONS

Connect the unit as follows.

Notes:

*1 Connect the cable to the terminal of equipment (center unit) that is connected by connection cables

(CeNET cable) with the L-shaped terminals.

*2 Connection requires a CCA-389 conversion cord (RCA3P → mini DIN8P) which is sold separately.

*3 If you are connecting an antenna other than a 4 system diversity antenna, connect it to the MAIN

terminal on the far right.

*4 Connect the terminal to the lead wire on the lamp side of the parking brake lamp switch. After

connection, apply the parking brake, then check that the TV displays an image.

• If the PKB cable is not connected to the side brake, some units may not operate.

This unit (TTX7503z)

For connection of the Clarion CD changer (sold separately) for CeNET use.

For connection of the rear seat monitor (sold separately).

For connection of the monitor (such as the Clarion VRX633R, sold separately).

Supplied RCA video cable (∗ 1)

For connection of a video appliance (∗ 2)

such as a handy camera (sold separately).

Antenna main (MAIN) terminal

Terminal (∗ 4) for connection

to parking brake.

Supplied PKB cable

To parking brake

NAVI/CCD terminal.

Supplied CeNET cable (∗ 1)

For connection (∗ 3) of a Clarion

antenna such as ZCP-104 (sold

separately).

For connection of a Clarion CCD camera (sold separately).

For connection of VRX633R, connect the CCD camera to the

NAVI/CCD terminal of VRX633R.

Main unit (such as the Clarion VRX633R)
