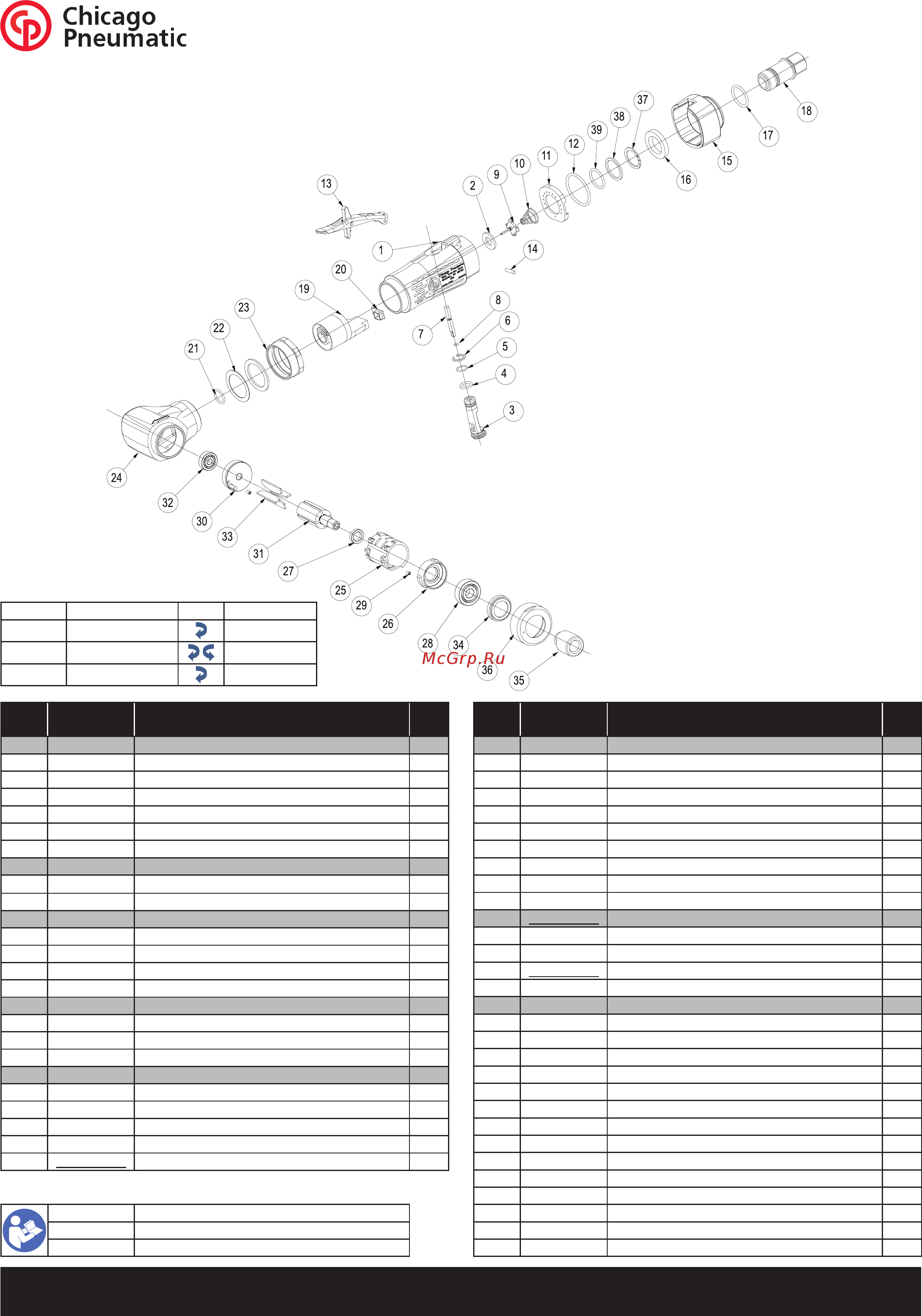

CP5080-3260D12

Belt sander

Index

Part

Ref

Description Qty

A 6154600400 REGULATOR ASSEMBLY

3 REGULATOR 1

4 O-RING 8.1x1.6 1

5 O-RING 8x1 1

6 SPRING RING WR9 1

7 VALVE STEM 1

8 O-RING 2x1 1

B 2050546343 VALVE KIT

9 TIP VALVE 1

10 SPRING 1

C 2050546353 FRONT PLATE ASSEMBLY

26 FRONT PLATE 1

27 WASHER 1

28 6157581380 BEARING 8x22x7608Z 1

29 PIN SPRING 2.5x4 1

D 2050546363 REAR PLATE ASSEMBLY

29 PIN SPRING 2.5x4 1

30 REAR PLATE 1

32 6157580630 BEARING 5x16x5625ZZ 1

E 2050546373 MOTOR ASSEMBLY

C 2050546353 FRONT PLATE ASSEMBLY 1

D 2050546363 REAR PLATE ASSEMBLY 1

25 6154001500 CYLINDER 1

31 6154261210 ROTOR M8 1

2050547783 BLADES (SET OF 4) 1

Index

Part

Ref

Description Qty

F 2050546413 SMALL PARTS KIT

6 SPRING RING WR9 1

8 O-RING 2x1 1

12 O-RING27x2 1

14 NEEDLE 2.5x11.8 1

17 O-RING 17x2 1

21 O-RING 10.5x1.5 1

37 EXTERNAL RING 1

38 SPACER 1

39 O-RING 15.6x1.78 1

2050546403 TUNE-UP KIT CP3000, CP3030, CP5080

2 SEAL 1

16 FELT 1

2050547783 BLADES (SET OF 4) 1

22 PAPER GASKET 1

1 2050547773 HANDLE ASSY (incl. Part # 15) 1

11 6155740660 AIR CONTROL RING 1

13 2050541493 SAFETY LEVER 1

15 REAR CAP 1

18 2050542533 INLET ASSY 1

19 6153212410 INSERT 1

20 6156561900 RUBBER GASKET 1

23 6157301890 NUT 1

24 6155653210 MOTOR HOUSING 1

34 6156452300 SPACER 1

35 6159901830 WHEEL 1

36 6156731400 COVER 1

2050554263 3MM HEX. WRENCH 1

6158727980 WARNING STICKER 1

2050552903 EC declaration

6159948770 Safety instructions

2050552743 Operator's manual

Spare parts without part number are not sold separately

2050552753 rev. 

Assembly instructions

Item # Tightening torque Dir. Glue

1-18 10

Loctite™ 222

23-24-1 35

Loctite™ 222

35-31 10
