CP5080-4200D24

Belt sander

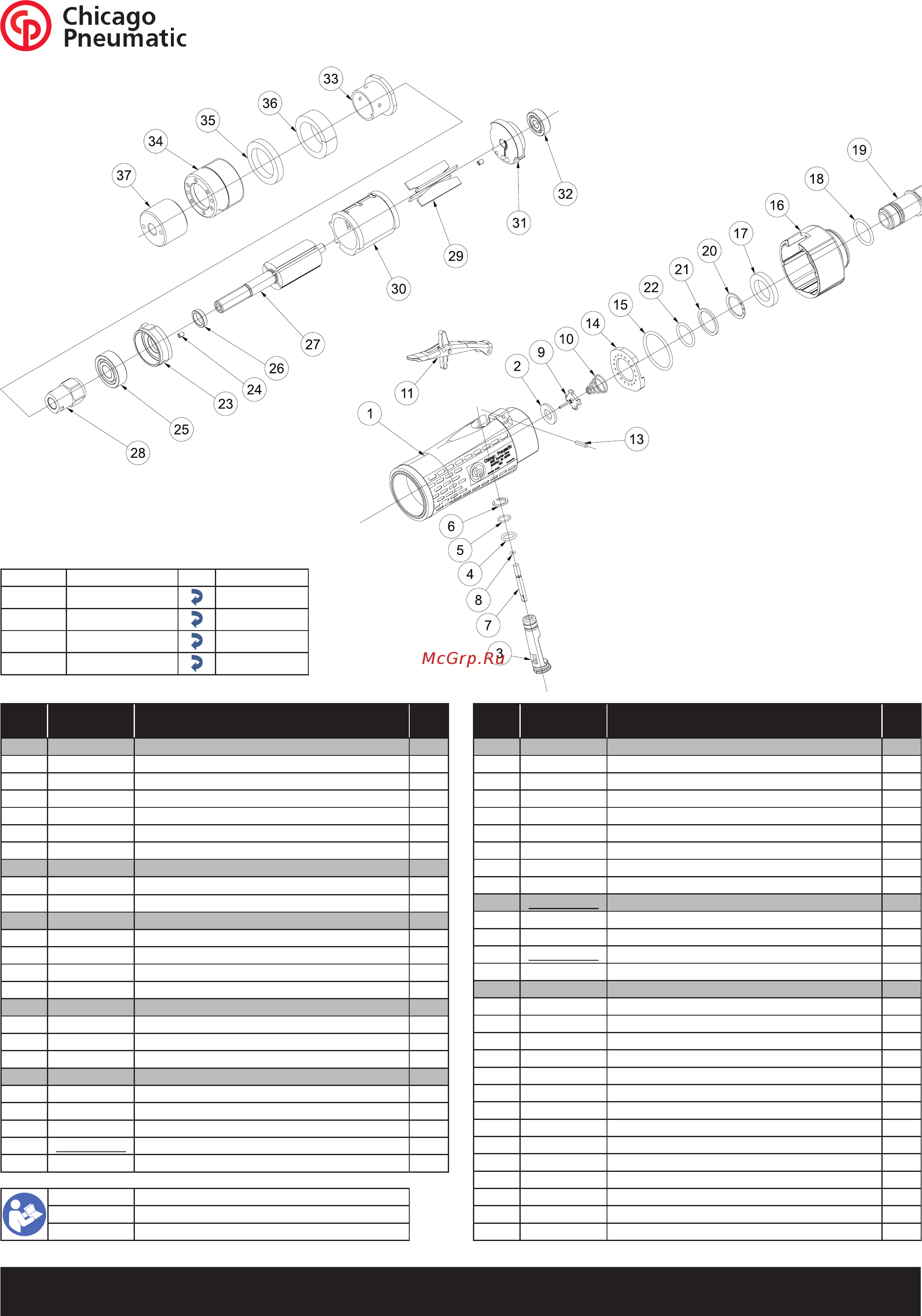

Assembly instructions

Item # Tightening torque Dir. Glue

1-19 7,5 ft.lb - 10 Nm

Loctite™ 222

37-27 7,5 ft.lb - 10 Nm

28-27 11 ft.lb - 15 Nm

1 - 34 11 ft.lb - 15 Nm Loctite™ 222

Index

Part

Ref

Description Qty

A 2050547823

REGULATOR ASSEMBLY

3 REGULATOR 1

4 O-RING 8.1x1.6 1

5 O-RING 8x1 1

6 SPRING RING WR9 1

7 VALVE STEM 1

8 O-RING 2x1 1

B 2050546343 VALVE KIT

9 TIP VALVE 1

10 SPRING 1

C 2050547893 FRONT PLATE ASSEMBLY

23 FRONT PLATE 1

24 PIN SPRING 3x4 1

25 6157580520 BEARING 10x26x8 1

26 WASHER 1

D 2050547843 REAR PLATE ASSEMBLY

24 PIN SPRING 3x4 1

31 REAR PLATE 1

32 6157581390 BEARING 6x19x6 626ZZ 1

E 2050547853 MOTOR ASSEMBLY

C 2050547893 FRONT PLATE ASSEMBLY 1

D 2050547843 REAR PLATE ASSEMBLY 1

27 6154261220 ROTOR 1

2050547793 BLADES (SET OF 4) 1

30 6154001490 CYLINDER 1

Index

Part

Ref

Description Qty

F 2050546413 SMALL PARTS KIT

6 SPRING RING WR9 1

9 O-RING 2x1 1

13 NEEDLE 2.5x11.8 1

15 O-RING 27x2 1

18 O-RING17x2 1

20 RING 1

21 SPACER 1

22 O-RING 15.6x1.78 1

2050547863 TUNE-UP KIT

2 SEAL 1

17 FELT 1

2050547793 BLADES (SET OF 4) 1

23 PAPER GASKET 1

1 2050547813 HANDLE ASSY (incl. Part # 15) 1

11 2050541493 SAFETY LEVER 1

14 6155740710 AIR CONTROL RING 1

16 REAR CAP 1

19 2050542533 INLET ASSY 1

28 6156080520 ROTOR NUT 1

33 2050550023 BLOCK PLATE 1

34 6156731420 COVER 1

35 2050549963 ROUND FELT 1

36 2050549973 FELT 1

37 2050547533 WHEEL 1

6158727980 WARNING STICKER 1

2050547993 WAVE SPRING (NOT SHOWN) 1

2050554273 9/64" HEX. WRENCH 1

2050552903 EC declaration

6159948770 Safety instructions

2050552743 Operator's manual

Spare parts without part number are not sold separately

2050552763 rev. 
