1. Technical Data (see Fig 2.)

CP7200 random orbital sander

CP7201 polisher

CP7202 rotary sander

max pressure 6.3 bar (90 psi)

:Vibration level, k Uncertainty ; L

Sound pressure level dB(A), K

= K

= 3 dB Uncertainty.

Declaration of noise (ISO 15744) and vibration emission (ISO 28927-3)

All values are current as of the date of this publication. For the latest information please visit www.cp.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared va-

lues of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user.

We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reecting the actual exposu-

re, in an individual risk assessment in a work place situation over which we have no control.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed. An EU guide to managing hand-arm vibration can be found at www.

pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management proce-

dures can be modied to help prevent future impairment.

2. Machine Type:

Power tool equipped with a flexible disc fitted with abrasive paper for sanding - No other use is permitted.

3. Implementation and Operation

• Connect device as shown in Fig.1.

• Fix the accessories properly to the tool.

• To switch rotation, turn the switch (B) as shown in Fig. 1

• To start the machine, simply pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the trigger to stop.

• To adjust output power, turn the regulator (B) as shown in Fig 1

4. Lubrication

•

Motor Lubrication

Use an air line lubricator with SAE #10 oil, adjusted to two (2) drops per minute. If

an air line lubricator cannot be used, add air motor oil to the inlet once a day.

5. Maintenance

• Follow local country environmental regulations for safe handling and disposal of all components

• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.

• Always ensure that the machine is disconnected from energy source (compressed air) to avoid accidental operation.

• High wear parts are underlined in the parts list.

• To keep downtime to a minimum, the following service kits are recommended:

Tune-Up Kit: see part list

6. Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

7. Declaration of conformity

We : CHICAGO PNEUMATIC Tool Co. 1800 Overview Drive Rock Hill, SC 29730 - USA

Declare that the product(s): Sander/Polisher

Machine type(s) : CP7200, CP7201,CP7202 Serial Number: From 00001 to 99999

Origin of the product : Taiwan

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC (17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-8:2012

Name and position of issuer : Nicolas Lebreton (R&D Manager)

Place & Date : Saint-Herblain, 01/02/2014

Technical le available from EU headquarter. Nicolas Lebreton R&D Manager LLC CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France

Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not covered by Warranty or Product Liability.

Original Instructions

Model

Pad Size

Free

Speed

Pad Type

Spindle

Thread

Overall Length Weight

Air

Consumption

@load

Air

Inlet

Inner

Hose

Dia.

Sound

Pressure

LpA

Sound

Power

LwA

Vibrations

ahd K

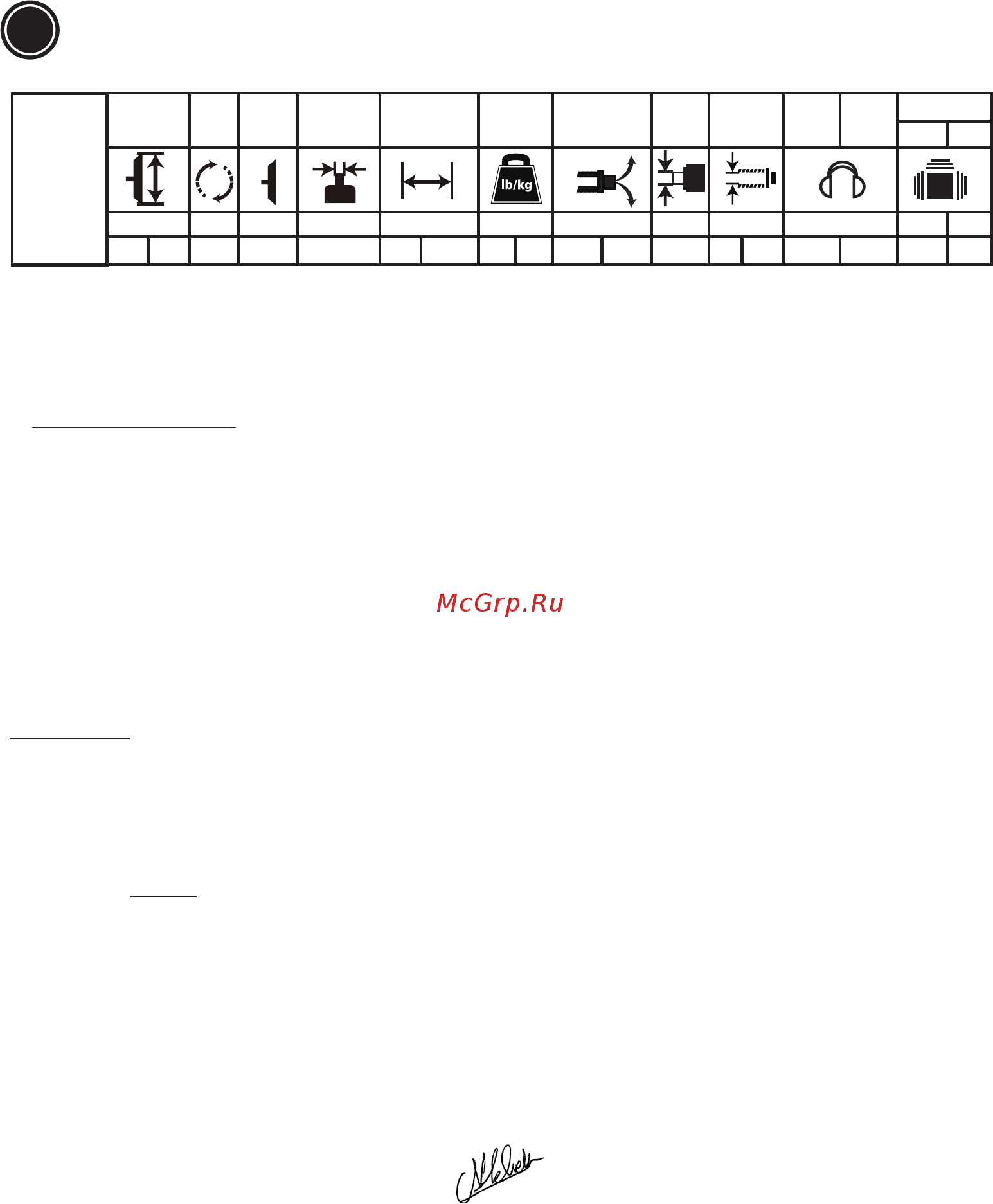

1 2 3 4 5 6 7 *8 *9 10 11 12

[mm] [inch] [rpm] [inch] [mm] [inch] [Kg] [lb] [Nl/s] [SCFM] [inch] [mm] [inch] [dB(A)] [dB(A)]

[m/s²] [m/s²]
