6159943760 Rev 02

Technical Data

Noise & Vibration Declaration

B15B - B16B - B15M - B16M

Chisel Scalers

Original Instructions

or part there of is prohibited. This applies in particular to trademarks,

model denominations, part numbers and drawings. Use only

authorized parts. Any damage or malfunction caused by the use of

unauthorized parts is not covered by Warranty or Product Liability.

INSTRUCTION MANUAL

Machine Type:

1. This product is designed for removing material using a chisel or

suitable needles.

2. No other use is permitted.

3. For professional use only

Air Supply Requirements

1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher

pressure drastically reduces tool life.

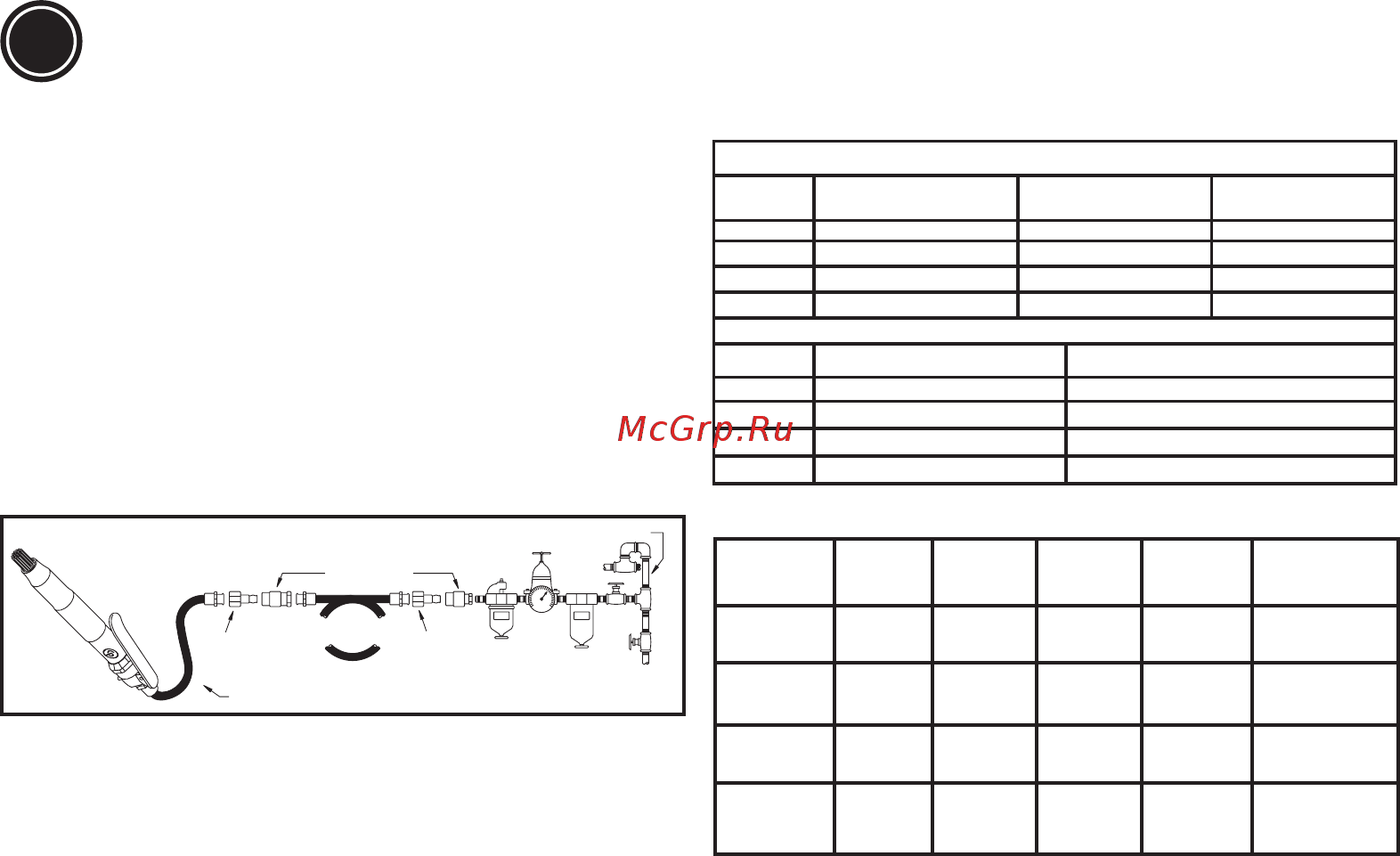

2. Connect tool to air line using pipe, hose and tting sizes shown

in the diagram below.

Using The Tool

Remember that it is always the tool that must do the work. There

is no need for the operator to apply extra pressure on the tool

when it is working.

Maintain the contact with the work surface by applying enough

pressure to stop the tool from bouncing

Warning

1. Do not keep a tool running at free speed as this will lead to

premature wear of the moving parts.

2. Always use the right type of needle.

Lubrication

1. The hammer is lubricated with oil type like SHELL Natural HF or

CASTROL Carelube HTG 22 oil.

2. Daily check the oil level in the lubricator and oil ow adjustment.

Maintenance

1. To obtain maximum efciency from the pneumatic tool, preserve

its features and avoid repeated repairs, a routine inspection and

repair programme are recommended at least every 1,000 hours,

the intervals between the various inspections depending on the

amount of exertion on the power tool.

2. Disassemble the tool, clean the parts with an appropriate solvent

and check them carefully.

3. Lubricate and reassemble the unit.

English

1/2" (12 mm)

3/8" (10mm)

All values are current as of the date of this publication. For the latest in-

formation please visit cp.com. These declared values were obtained by

laboratory type testing in accordance with the stated standards and are

suitable for comparison with the declared values of other tools tested in

accordance with the same standards. These declared values are not

adequate for use in risk assessments and values measured in individual

work places may be higher. The actual exposure values and risk of harm

experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon

the exposure time and the physical condition of the user. We, Chicago

Pneumatic, cannot be held liable for the consequences of using the de-

clared values, instead of values reecting the actual exposure, in an indi-

vidual risk assessment in a work place situation over which we have no

control. This tool may cause hand-arm vibration syndrome if its use is not

adequately managed. An EU guide to managing hand-arm vibration can

be found at www.pneurop.eu/uploads/documents/pdf/PN3-02-NV_Decla-

ration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symp-

toms which may relate to noise or vibration exposure, so that manage-

ment procedures can be modied to help prevent future impairment.

Soundpressure: ISO 15744

Model Soundpressure dB(A) Soundpower dB(A)

Uncertainty KpA=KWA

dB(A)

B15B

86 97

B16B

86 97

B15M

97 108

B16M

100 111

Vibrations: ISO 28927-9 (3 axis)

Model Vibrations a

m/s² k: Uncertainty m/s²

B15B

12 3,8

B16B

24 4

B15M

10,6 6,3

B16M

12,5 7,5

Model Weight Bore Stroke Blow

frequency

air consumption

B15B

1,5 kg 18 30 3800

1.4 l/s

(3 cfm)

B16B

2 kg 23,5 35,6 3000

2.6 l/s

(5.5 cfm)

B15M

1,6 kg 18 30 3800

1.4 l/s

(3 cfm)

B16M

2,6 kg 23,5 35,6 3000

2.6 l/s

(5.5 cfm)
