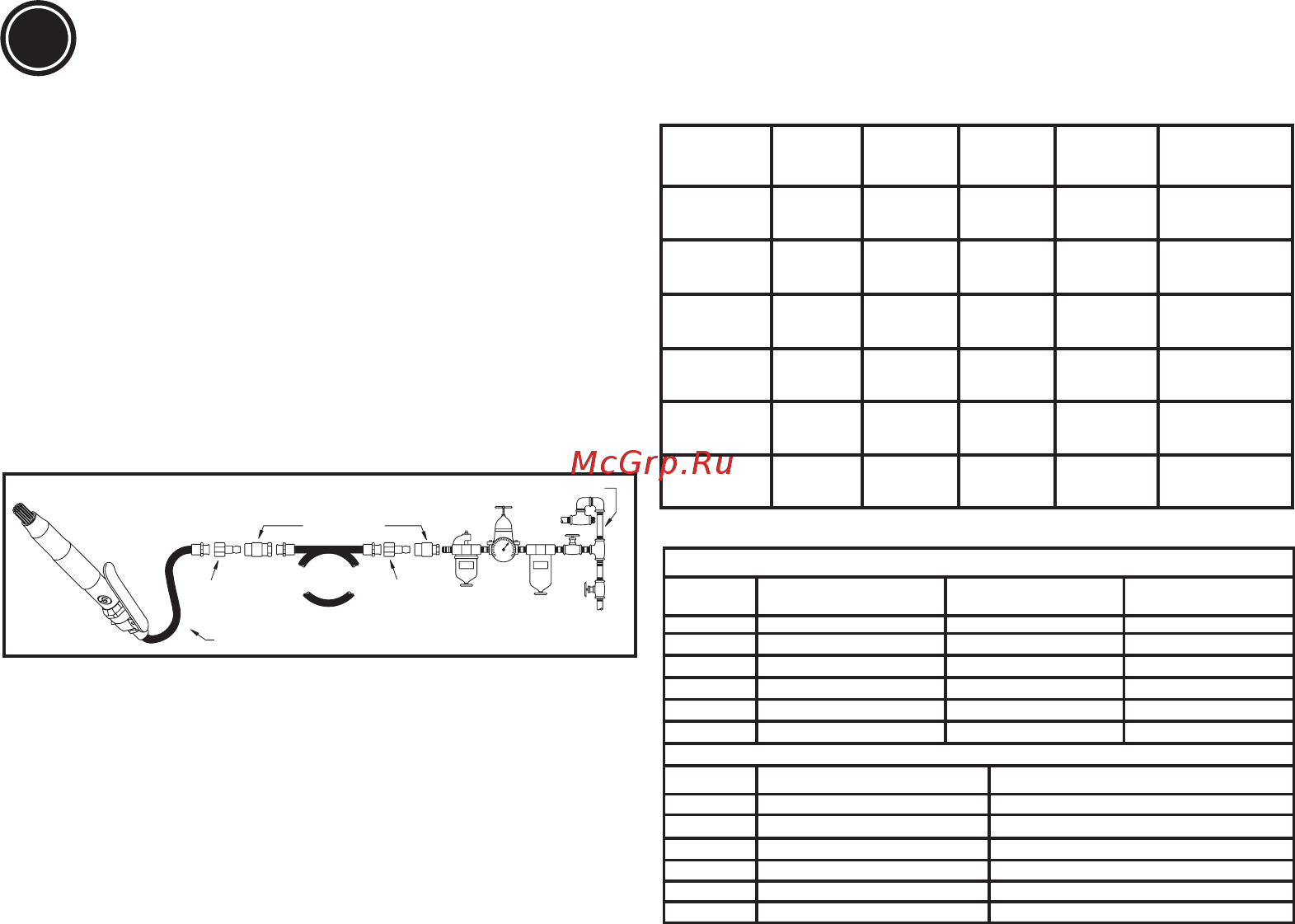

Chicago Pneumatic B18BV [2/32] B16mv b18mv b19mv b16bv b18bv b19bv

6159948610 Rev 06

Technical Data

Noise & Vibration Declaration

B16MV - B18MV - B19MV

B16BV - B18BV - B19BV

Needle scaler /Scaler

Original Instructions

or part there of is prohibited. This applies in particular to trademarks,

model denominations, part numbers and drawings. Use only

authorized parts. Any damage or malfunction caused by the use of

unauthorized parts is not covered by Warranty or Product Liability.

INSTRUCTION MANUAL

Machine Type:

1. This product is designed for removing material using a chisel or

suitable needles.

2. No other use is permitted.

3. For professional use only

Air Supply Requirements

1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher

pressure drastically reduces tool life.

2. Connect tool to air line using pipe, hose and tting sizes shown

in the diagram below.

Using the tool

Remember that it is always the tool that must do the work. There

is no need for the operator to apply extra pressure on the tool

when it is working.

Maintain the contact with the work surface by applying enough

pressure to stop the tool from bouncing. In this way, the rust will

be removed from the surface more quickly. Use the tool on rigid

surfaces and prevent it from moving away from the edge, as this

can damage the needles.

Warning

1. Do not keep a tool running at free speed as this will lead to

premature wear of the moving parts.

2. Always use the right type of needle.

Lubrication

1. The hammer is lubricated with oil type like SHELL Natural HF or

CASTROL Carelube HTG 22 oil.

2. Daily check the oil level in the lubricator and oil ow adjustment.

Maintenance

1. To obtain maximum efciency from the pneumatic tool, preserve

its features and avoid repeated repairs, a routine inspection and

repair programme are recommended at least every 1,000 hours,

the intervals between the various inspections depending on the

amount of exertion on the power tool.

2. Disassemble the tool, clean the parts with an appropriate solvent

and check them carefully.

3. Lubricate and reassemble the unit.

English

1/2" (12 mm)

3/8" (10mm)

All values are current as of the date of this publication. For the latest information

please visit cp.com. These declared values were obtained by laboratory type test

ing in accordance with the stated standards and are suitable for comparison with

the declared values of other tools tested in accordance with the same standards.

These declared values are not adequate for use in risk assessments and values

measured in individual work places may be higher. The actual exposure values

and risk of harm experienced by an individual user are unique and depend upon

the way the user works, the workpiece and the workstation design, as well upon

the exposure time and the physical condition of the user. We, Chicago Pneumatic,

cannot be held liable for the consequences of using the declared values, instead

of values reecting the actual exposure, in an individual risk assessment in a work

place situation over which we have no control. This tool may cause hand-arm

vibration syndrome if its use is not adequately managed. An EU guide to manag-

ing hand-arm vibration can be found at www.pneurop.eu/uploads/documents/pdf/

PN3-02-NV_Declaration_info_sheet_0111.pdf

We recommend a programme of health surveillance to detect early symptoms

which may relate to noise or vibration exposure, so that management procedures

can be modied to help prevent future impairment.

Model Weight Bore Stroke Blow

frequency

air consumption

B16BV 2.79 kg 23,5 mm 11 mm 2400

2.4 l/s

(5.1 cfm)

B18BV 3,07 kg 23,5 mm 11 mm 2400

2.0 l/s

(4.2 cfm)

B19BV 4,06 kg 34,4 mm 20 mm 3000

2.1 l/s

(4.4 cfm)

B16MV 2,41 kg 23,5 mm 11 mm 2400

2.4 l/s

(5.1cfm)

B18MV 2,66 kg 23,5 mm 11 mm 2400

2.0 l/s

(4.2 cfm)

B19MV 3,56 kg 34,4 mm 20 mm 3000

2.1 l/s

(4.4 cfm)

Soundpressure: ISO 15744

Model Soundpressure dB(A) Soundpower dB(A)

Uncertainty KpA=KWA

dB(A)

B16MV 86,3 97,3 3

B18MV 85,9 96,9 3

B19MV 88,4 99,4 3

B16BV 88,6 99,6 3

B18BV 88,4 99,4 3

B19BV 92,8 103,8 3

Vibrations: ISO 28927-9 (3 axis)

Model Vibrations a

m/s² k: Uncertainty m/s²

B16MV

2,7 1,2

B18MV

2,7 1,3

B19MV

4,2 2,6

B16BV

4,8 2,2

B18BV

5 1,9

B19BV

4,6 1,7
