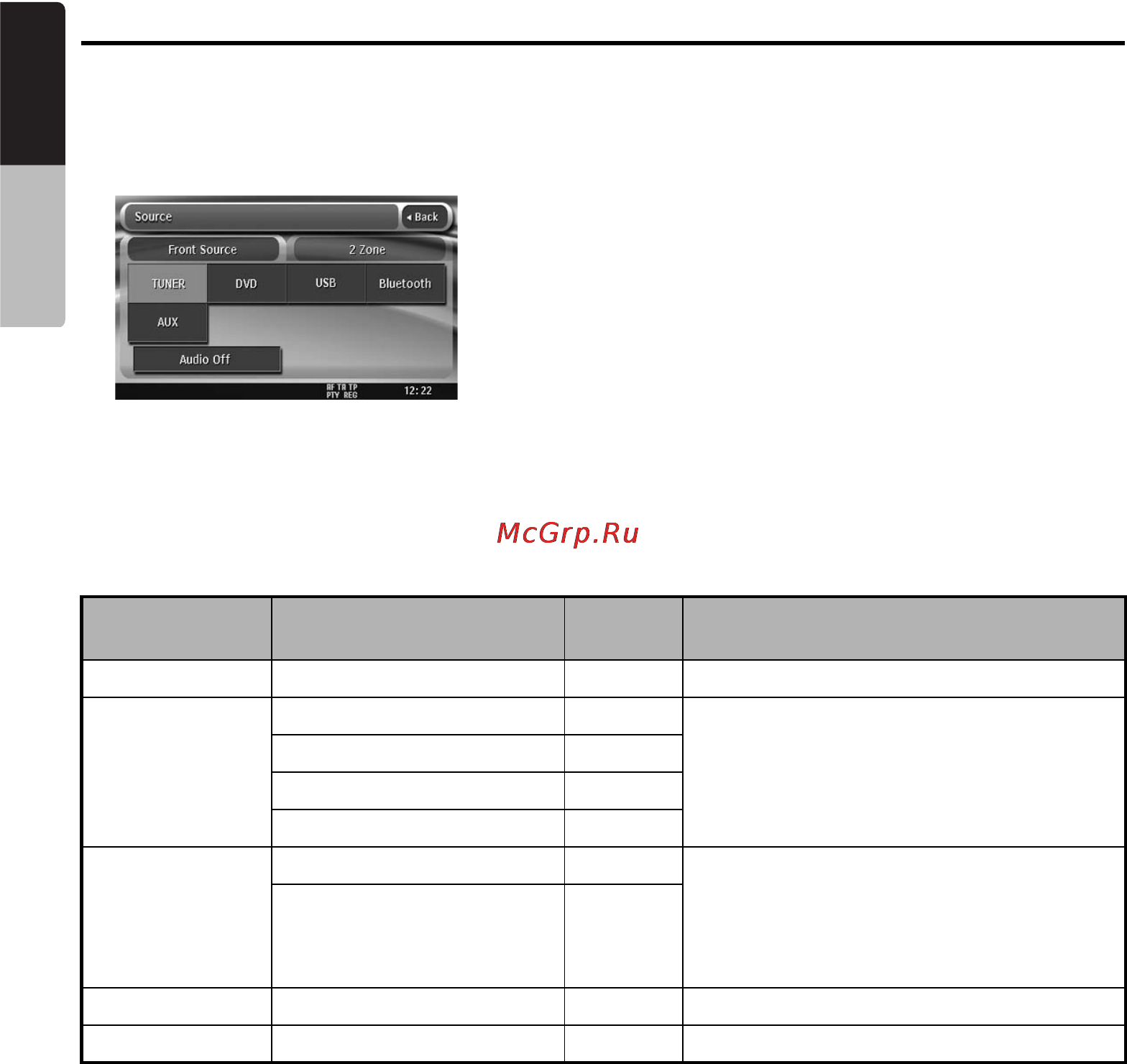

Selecting a Media Source
Changing the souce mode
1. Press the [SRC] button to display the Source
screen.
2. Touch the desired Source key you wish to
change to.
The system is switched to the corresponding
source media mode.
Available media sources
Note:
• When the USB mode is selected, video images input from the AUX terminal will be output to the rear monitor.
This is normal.
To select the BT Phone or Navigation mode
You can select the BT Phone or Navigation mode from the Menu screen displayed by pressing the
[MENU] button.
• For details of the BT Phone mode operations, see “Bluetooth Telephone Operations” (page 52).
• For details of the Navigation mode operations, see “Navigation System Operations” (page 57).
Source mode Corresponding source
media mode
Refer to Description
TUNER mode TUNER mode page 26 —
DVD mode DVD Video mode page 31 The source media mode differs depending
on the data format of the disc set in the
DVD player.
When no disc is set in the DVD player,
“NO DISC” will be displayed.
CDDA mode page 38
MP3/WMA/AAC mode page 40
DivX mode page 43
USB mode iPod mode page 45 The source media mode differs depending
on the type of the USB media device
connected to the USB connector.
When no USB media device is connected,
“NO MEDIA” will be displayed.
USB Memory mode page 49
Bluetooth mode Bluetooth mode page 50 —
AUX mode AUX mode page 58 —
