5. SOURCE OPERATIONS
Radio Operations
Listening to the radio
1. Press the [SRC] button, and touch the
[TUNER] key.

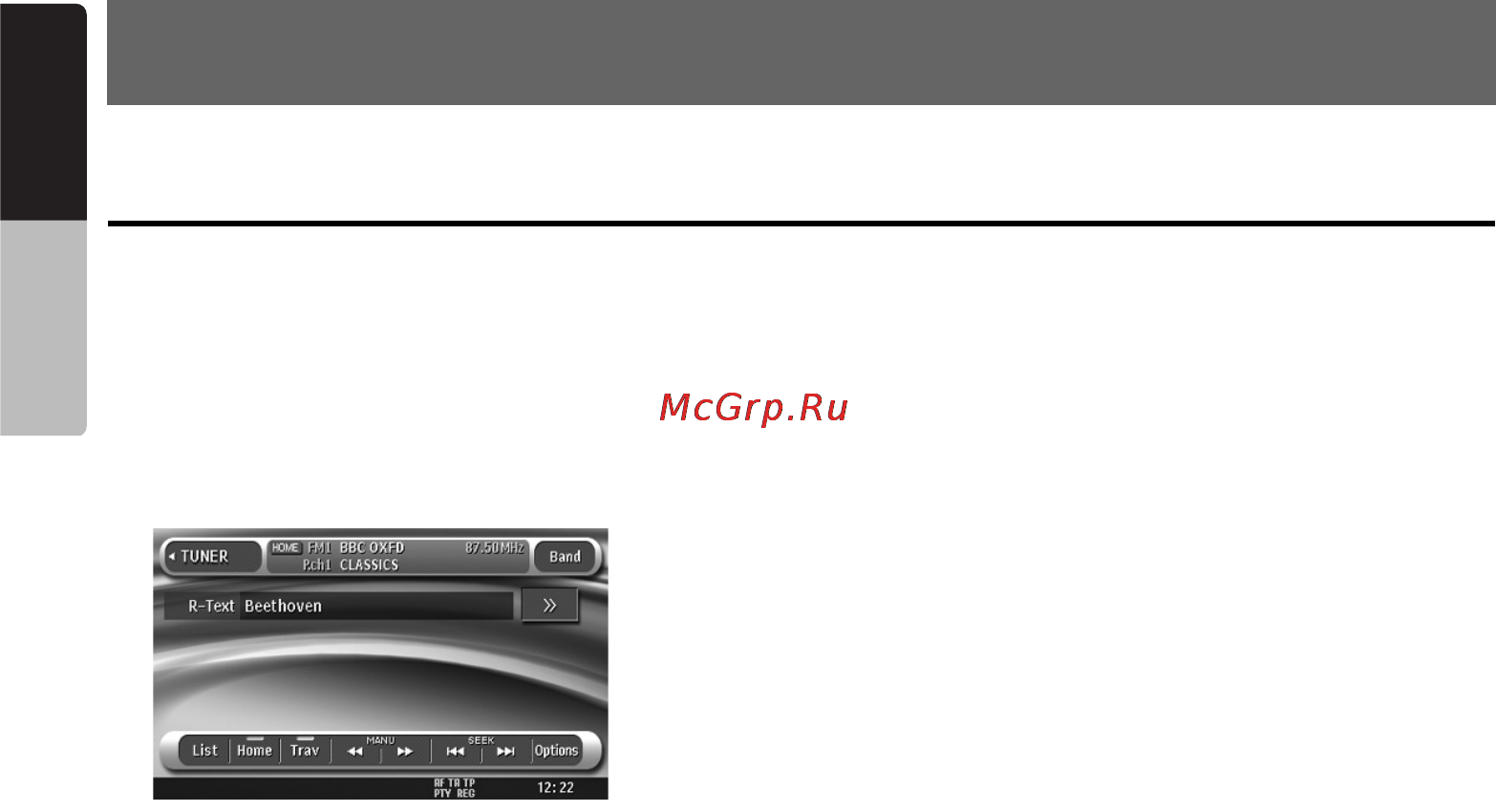

The TUNER mode screen is displayed, and
the system resumes the last status of the
TUNER mode.
2. Touch the [Home] or [Trav] key to select the
Home or Travel mode.
The Home/Travel modes are provided to
manage the preset stations separately in your
home location and in a location during a trip.
3. Touch the [Band] key to select the radio band.
Each time the key is touched, the radio
reception band changes in the following
order:
• In Home mode: FM Home 1 or 2 ➜ AM
Home (MW/LW) ➜ FM Home 1 or 2... (The
last FM band will be selected.)
• In Travel mode: FM Travel ➜ AM Travel
(MW/LW) ➜ FM Travel...
4. Press the [R] or [F] button to tune in the
previous or next preset station.
Seek tuning
There are 2 types of seek tuning: DX SEEK and
LOCAL SEEK.
The DX SEEK can tune in to receivable
broadcast stations, and the LOCAL SEEK can
tune in to only broadcast stations with a good
reception condition.
1. Touch the [Band] key to select the desired
band (FM or AM (MW, LW)).
2. Tune in to a station.
• If “TA” is displayed on the screen, TP
stations are automatically sought.
● DX SEEK
Touch the [R] or [F] key to automatically
seek a station.
When the [F] key is touched, the station is
sought in the direction of higher frequencies; if
the [R] key is touched, the station is sought in
the direction of lower frequencies.
• When the DX Seek tuning starts, “DX SEEK”
appears on the screen.
● LOCAL SEEK
If you keep touching the [R] or [F] key more
than 1 second, the Local Seek tuning is carried
out.
The broadcast stations with good reception
sensitivity are automatically selected.
• When the Local Seek tuning starts, “LO SEEK”
appears on the screen.
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When it is in the step tuning mode, the frequency
changes one step at a time. In quick tuning mode,
you can quickly tune the desired frequency.
1. Touch the [Band] key to select the desired
band (FM or AM (MW/LW)).
2. Tune into a station.
Quick tuning:
Touch and hold the [TT] or [tt] key to tune
in a station.
Step tuning:
Touch the [TT] or [tt] key to manually
tune in a station.
Recalling a preset station
There are total of 40 preset positions (8-FM
Home 1, 8-FM Home 2, 8-AM Home, 8-FM
Travel, and 8-AM Travel) to store individual radio
stations in memory.
There are 2 ways available to recall the preset
station.
● Using the [R] or [F] button
1. Touch the [Home] or [Trav] key and touch the
[Band] key to select the desired band.
2. Press the [R] or [F] button to recall the
previous or next stored station.
