ROCEDURE:

 Clean the base area, remove any sharp objects and penetrate it using a suitable penetrating solution.

 Create “pockets” in the base material where you will place connections for the heating components.

 Lay and affix the cable onto the surface so that it cannot move when you apply the sealing cement.

 Measure the heating circuit resistance and the insulation resistance or the leakage current resistance

and record the values in the certificate of warranty.

 Draw the scheme of the heating cable layout in the certificate of warranty.

 Use flexible adhesive sealing cement and a notched spreader to smooth the floor surface (be careful

not to damage the cable by the sharp edge of the notched spreader).

 Before laying the floor tiles, measure the heating circuit again and record both values in the certificate

of warranty.

 Lay the floor tiles on the surface.

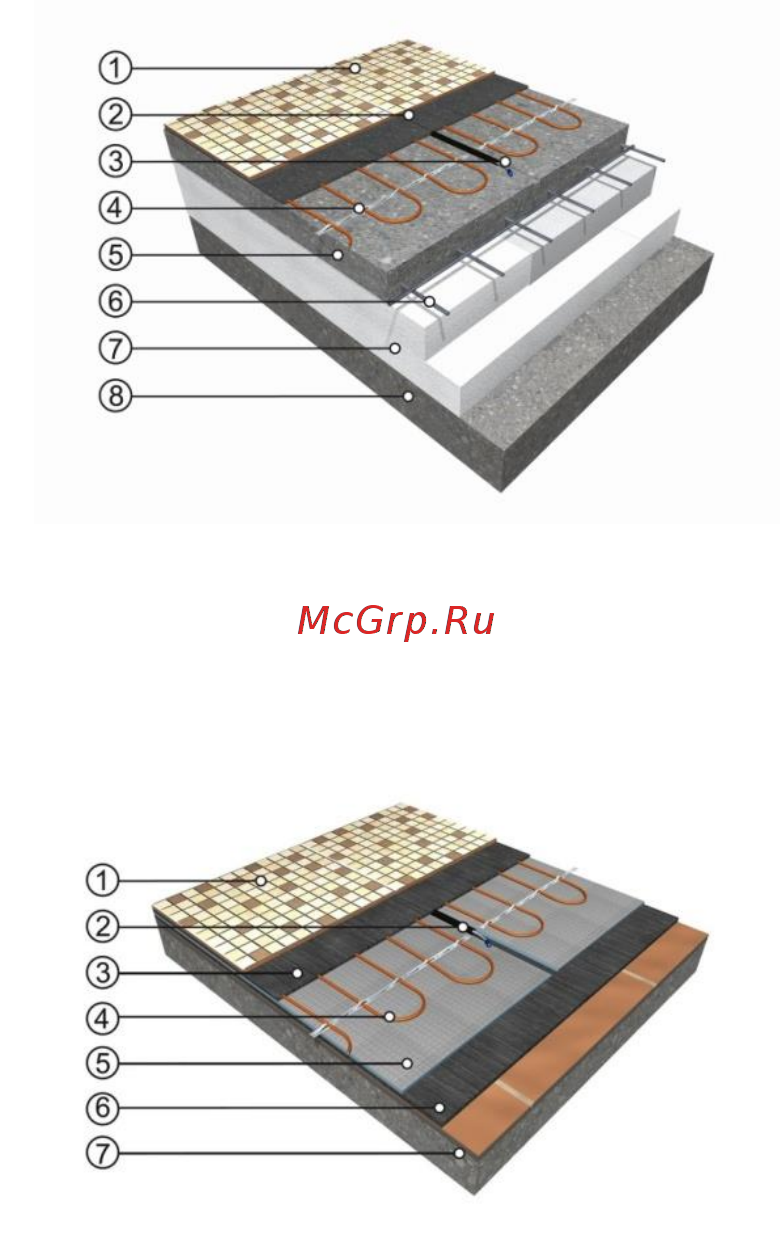

SECTIONAL VIEW OF THE FLOOR FOR PLACING CABLE INTO ADHESIVE SEALING CEMENT

Direct heating system — new constructions

Direct heating system — reconstruction

1) Floor tiles

2) Flexible adhesive sealing cement

3) Installation pipe with a floor probe

4) ECOFLOOR heating cable

5) Spread layer

6) Reinforcing steel grid (KARI)

7) Thermal insulation 80–100 mm

8) Base

1) New floor tiles

2) Installation pipe with a floor probe

3) Flexible adhesive sealing cement

4) ECOFLOOR heating cable

5) Thermal insulation F-BOARD

(optional)

6) Flexible adhesive sealing cement

7) Original floor tiles or another base
