SP 500
Version 2.0 © TROTEC Produktions- u. Vertriebs GmbH
32 / 51
Technical changes reserved Freilingerstraße 99, A-4614 Marchtrenk
www.troteclaser.com

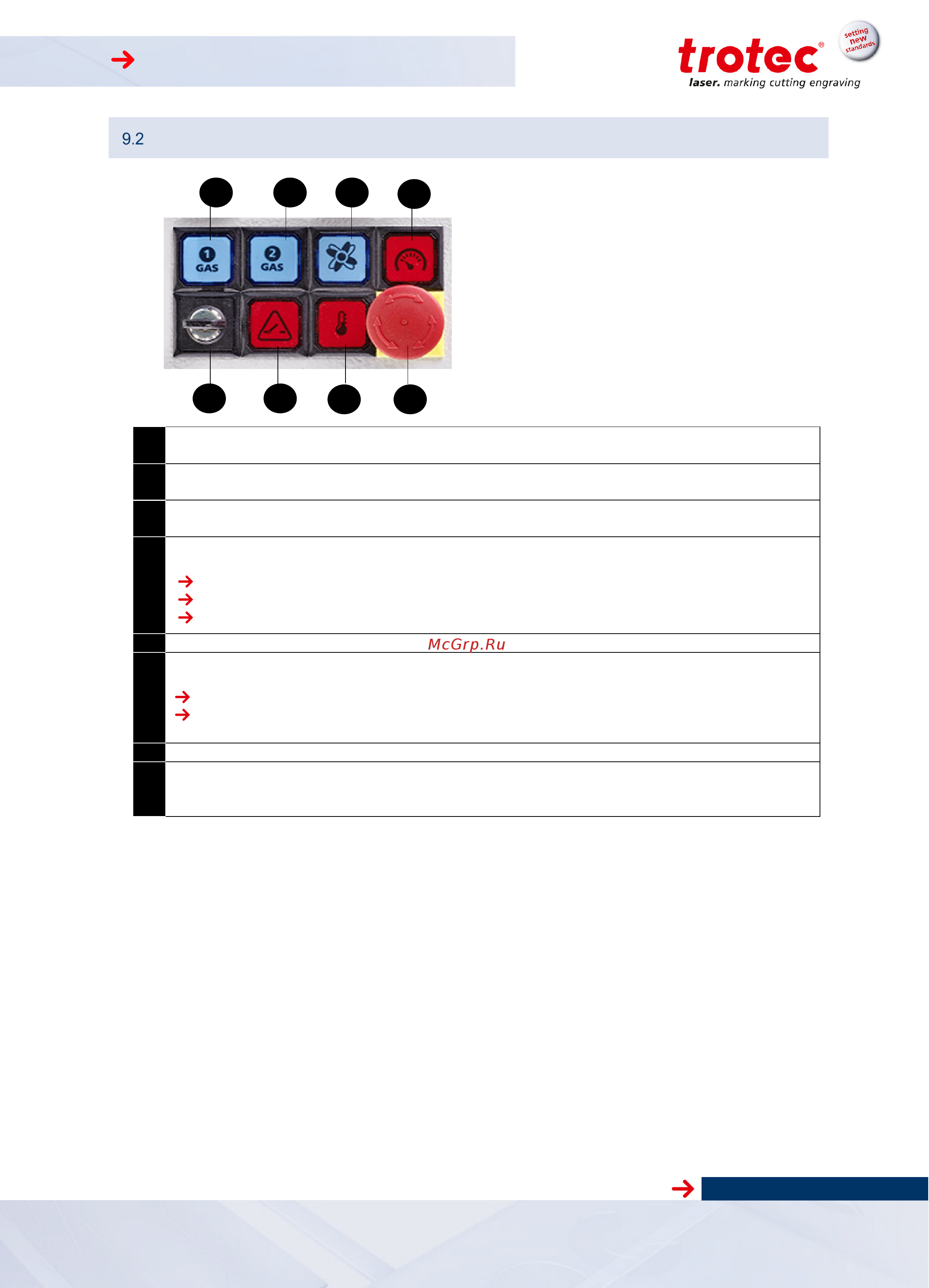

Key pad – Description
1
Gas 1
Gas 1 on/off key
2
Gas 2
Gas 2 on/off key
3
Air Assist
Switch on/off the
air assist
4
Compressed air, Voltage (AC, DC)
indicator
Lights in following conditions:
Compressed air missing
AC-Voltage failure (L1, L2, L3, N)
DC-Voltage failure (power supplies)
5
Key switch
6
Interlock on/off indicator
Interlock indicator lights when the machine is turned on, and:
Guard door or door is open
Cover plate is not installed
If the Interlock Indicator is unlit, the machine is ready for production.
7
Cooling on/off indicator
8
EMERGENCY
STOP
push
button
Pressing this button shuts the machine down completely.
The EMERGENCY OFF pushbutton must be unlocked to start up the machine again.
4
3
5
6
7
8
2
1
