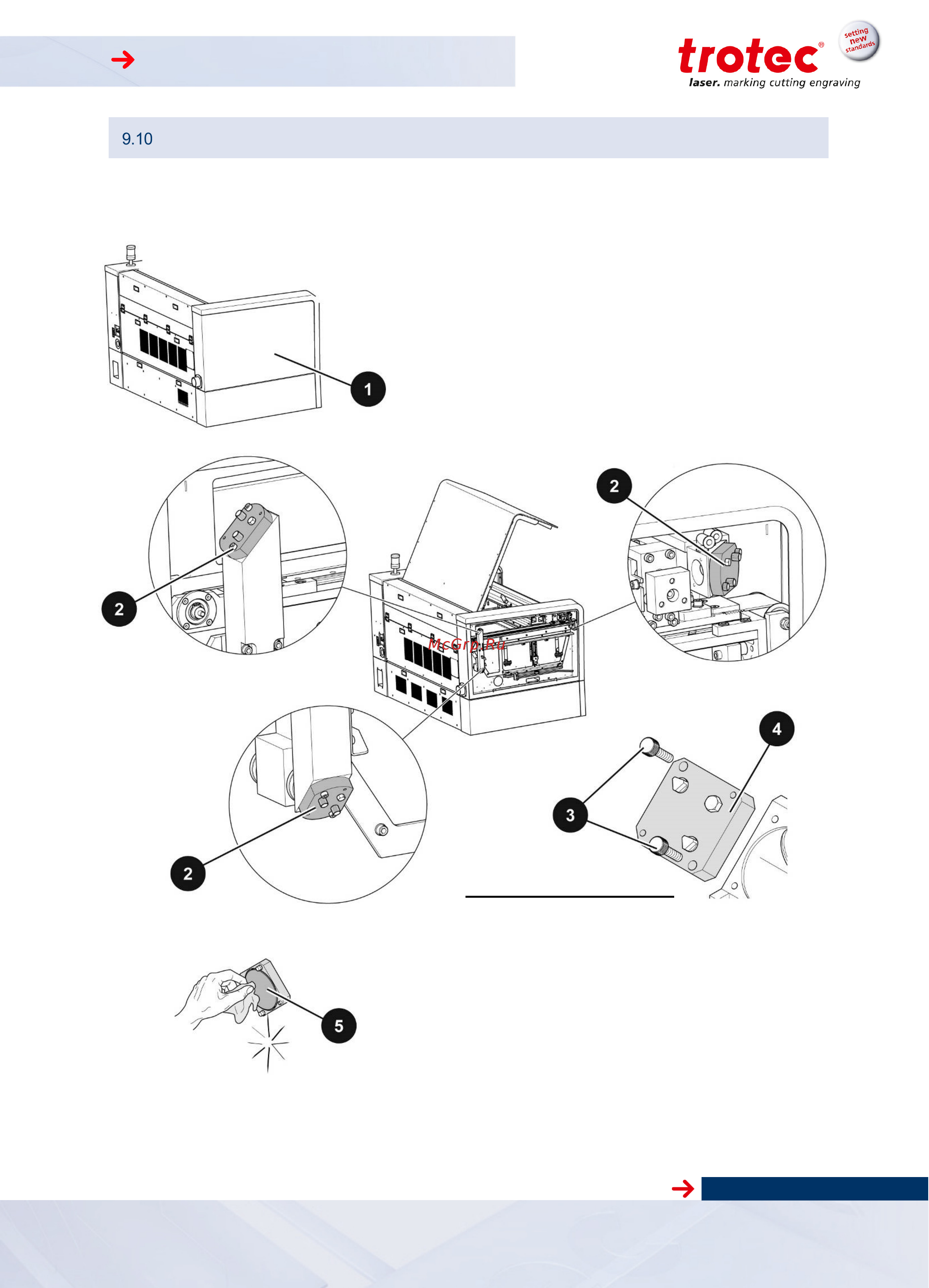

Cleaning the Mirrors
•
Unlock cover (1)
- Tool: Metric Allen wrench No. 10
•
Remove cover (1) by pulling on the handles
3 mirrors (2) must be cleaned:
•
Loosen both screws (3)
•
Remove mirror mount (4)
•
Check mirror (5) for damage
•
Clean mirror (5)
•
Cleaning liquid and cleaning tissue
•
Check mirror (5) once again for damage
•
Put on mirror mount (4) and secure with
two screws (3)
