AEG SDH 175 15,6 Twin [23/60] Installation for contractors

Installation - for contractors

 

Power consumption subject to area in W/m²

Direct underfloor heating 100-160

Underfloor buffer cylinder heating system 100-180

Edge zone heating 200

 

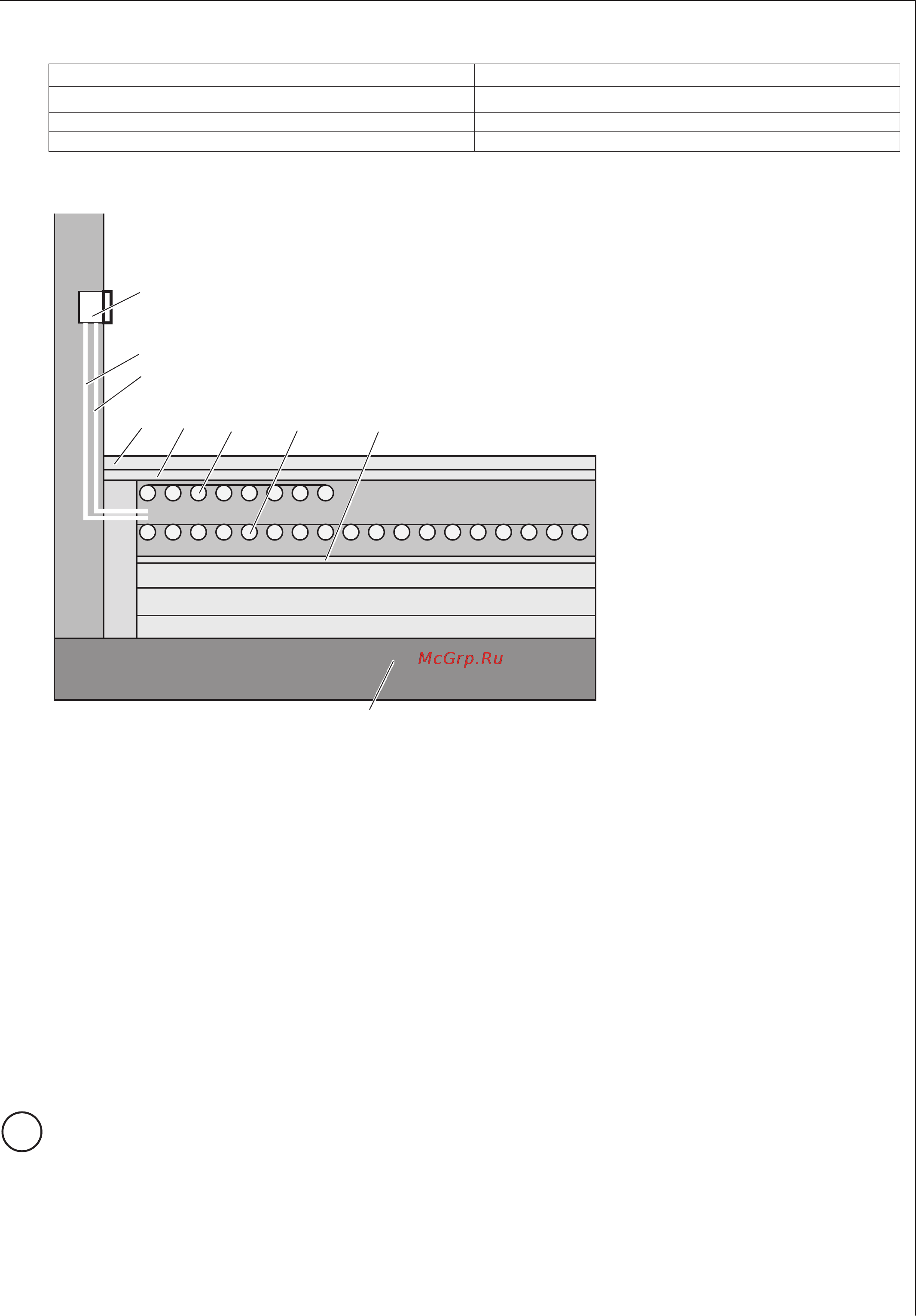

26_07_29_0093

4 5 6 7 8

1 Electronic room temperature controller

2 Protective pipe with sensor sleeve for residual heat sensor

3 Protective pipe with sensor sleeve for temperature limiter

4 Floor covering

5 Floor adhesive

6 Heating mats for edge zone heating

7 Heating mats (installation depth in the lower third of the screed layer)

8 Damp proof membrane: 0.2 (0.5) mm PE or bitumen paper 250 g

9 Cement screed (8-14 cm subject to storage volume of the walls surrounding the room and the charge time. Average value

approx. 9-10 cm when charge time is 8 + 2 hours)

10 Edge insulation strips

11 Upper insulation layer, for example mineral fibre insulation

12 Lower insulation layer, for example foam PS 20

13 Damp proof membrane (only when ground below), 0.5 mm PR or bitumen paper 500 g

14 Unfinished concrete or ground

» Lay edge zone heating mats in front of external windows or doors approx. 20 mm below the screed surface up to 1 m

into the room.



The power consumption subject to area must not exceed 250 W/m
