English 20
Figure 17
OPERATION - (For Mechanical Models)
The air conditioner has the
following features:
On-unit
operation control
Indicator control
lights
Warning light
Thermostat

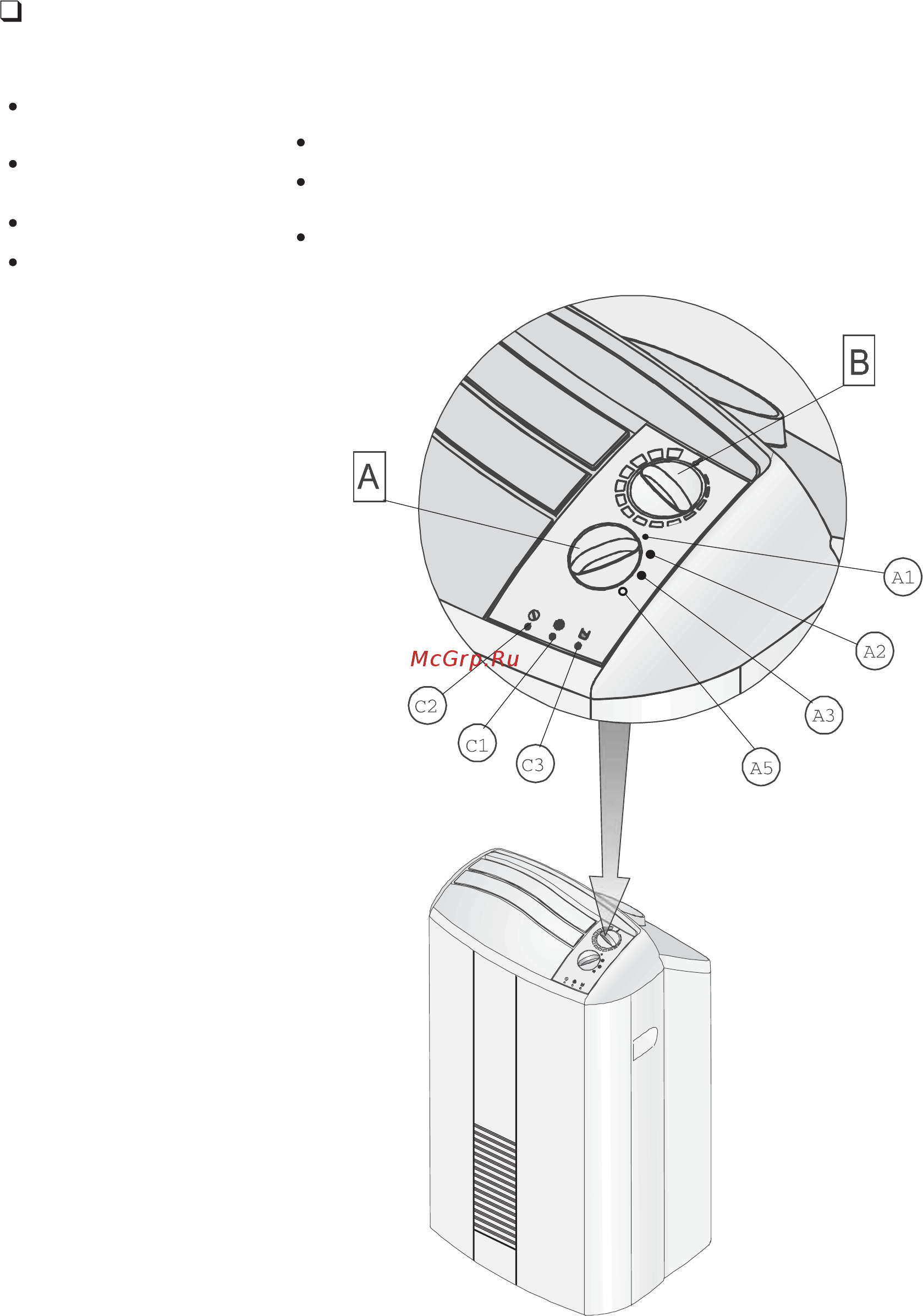

ON UNIT CONTROL AND DISPLAY P ANEL (See Figure17)
In order to obtain maximum comfort and economical operation, please make
sure to:
Follow the instructions for Installation For Cooling on page 5.
Be sure that th air outlet and inlet openings on the unit are
unobstructed.
Shade the room from direct sunrays and avoid excessive
sources of heat in the room.
e
A - Selector switch knob
Selector switch positions
A1. Off
A2. Fan only - High
A3. Cooling - High
A4. Cooling - Low
B - Temperature control knob
C - Indicators
C1. Cooling indicator
C2. Operation indicator
C3. Overflow indicator
