APPLICATION OF QUICK CONNECTORS (OPTIONAL)
The quick disconnect feature is used when installing the flexible interconnecting hose through a window or a wall. It
enables temporary separation between indoor and outdoor units when passing the hose through and opening in an
external wall.

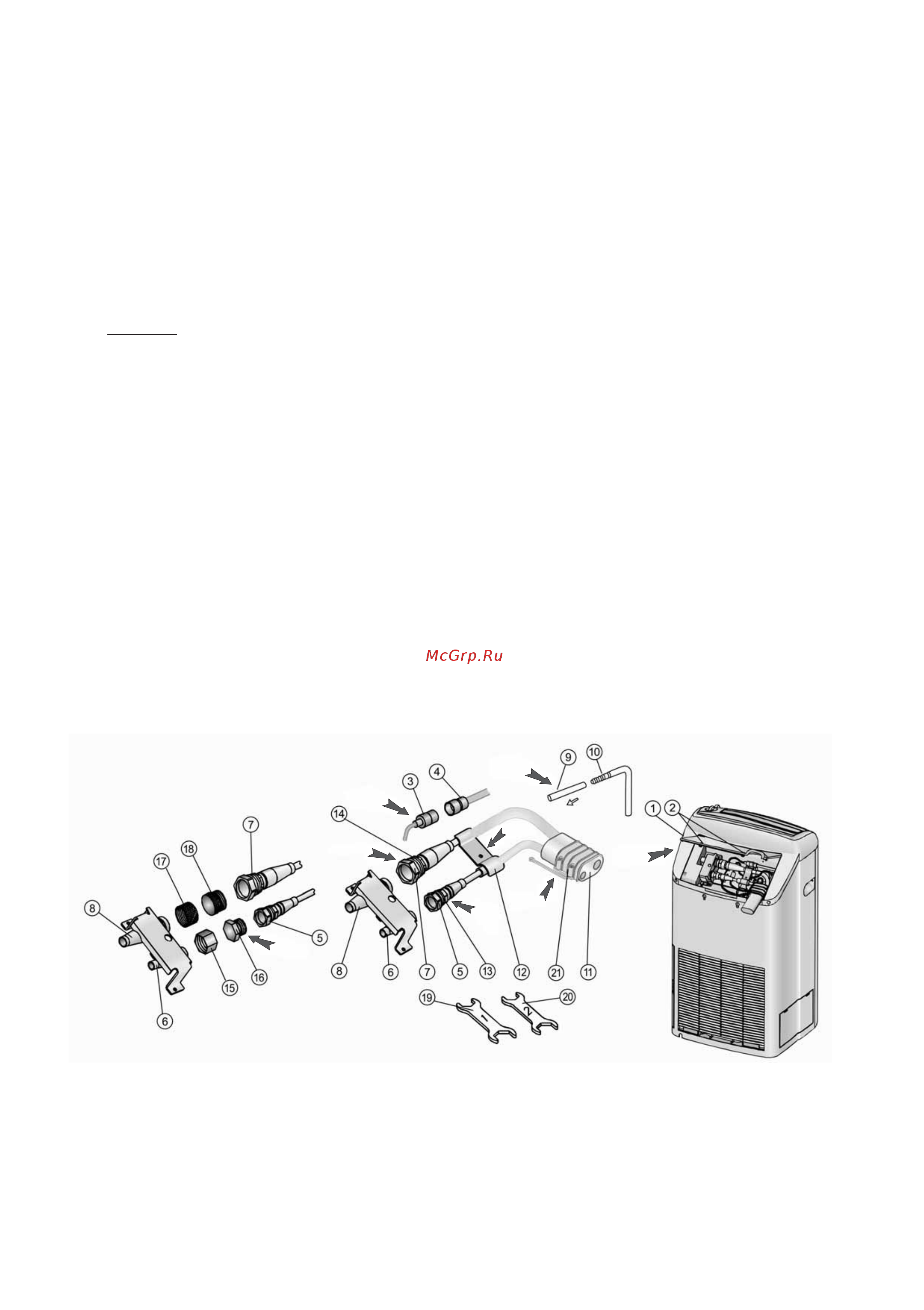

DISCONNECTING THE UNITS (See Figures 10 and 11)
WARNING: Make sure to disconnect the unit from power supply.
STEP 1.
STEP 2.
STEP 3.
STEP 4.
STEP 5.
STEP 6.
STEP 7.
STEP 8.
Unscrew the fastening screw (2) and remove cover (1).
Unplug the electrical plug (3) and pull it out from its socket (4).
Disconnect drain hose (9) from the drain pan connector (10)
Remove the tube clamp (12) by unscrewing its fastening screw.
Unscrew the liquid line quick disconnect (5) from its mating part (6) as follows:
- Retain lock-nut (13) with the supplied wrench No. 2 (20) and open with the supplied wrench No. 1 (19) the
hexagonal nut (5).
- Slowly turn nut (5), and open until part (5) is disconnected from part (6).
Unscrew the suction line quick disconnect (7) from its mating part (8)as follows:
- Retain lock-nut (14) with the supplied wrench No. 2 (20) and open with the supplied wrench No 1 (19) the
hexagonal nut (7).
- Slowly turn nut (7), and open until part (7) is disconnected from part (8).
Remove interconnecting hose clamp (21) by unscrewing its fastening screw.
To protect the tube openings from any foreign material or contamination, close them with the provided plugs
11. insert plug (16) into nut (5) , plug (18) into nut (7), Cover (15) onto
part (6) and cover (17) on part (8). Tighten all of these lightly.
AND COVERS; REFER TO FIGURE
To disconnect between the indoor and outdoor unit, perform the following steps:
The outdoor unit, together with the interconnecting flexible hose (11) may now be separated from the indoor unit,
and the hose can be passed through the wall opening.
English 8
Figure 11
Figure 10
STEP 8
STEP 6
STEP 2
STEP 3
STEP 4
STEP 1
STEP 7
STEP 5
