Page 8
6 - Installation
6.1 - Unit Handling 6.2 - Installation Location
Be careful to avoid rough handling on the unit. Do not lift
the unit by the motor support or by the coil connecting
headers. Use a lifting truck to facilitate the unit
installation.
Sharp edges and coil surfaces are a potential hazard.
Avoid contact with them.
Do not install the unit in a machinery shop or kitchen
where vapour from oil or its mist flows into the unit.
1. The units are designed to be installed at high position.
2. Install the unit in a position having sufficient strength to carry
the weight of the unit.

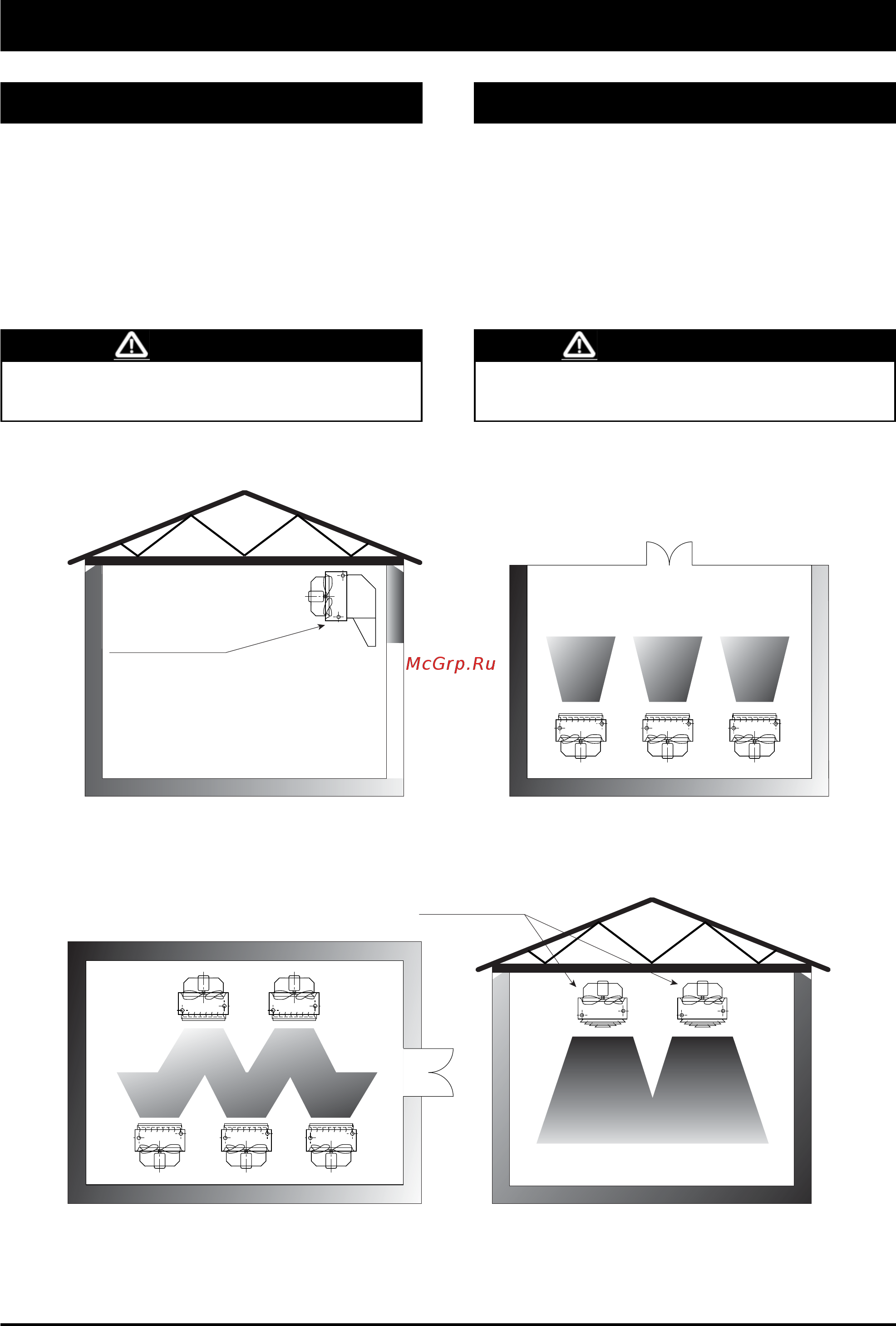

3. In accordance with the number of units which are to be installed
and for a maximum comfort, the air stream will be pointed to
maximum heat loss area (small area premises) - fig.1 - or
oriented in order to obtain a total homogeneity of temperatures
- fig.2 - (tertiary buildings and large volumes).
Warning Warning
Diffuser VR
Air curtain
Cold wall
Diffuser HP or HN
Figure 1
Figure 2
