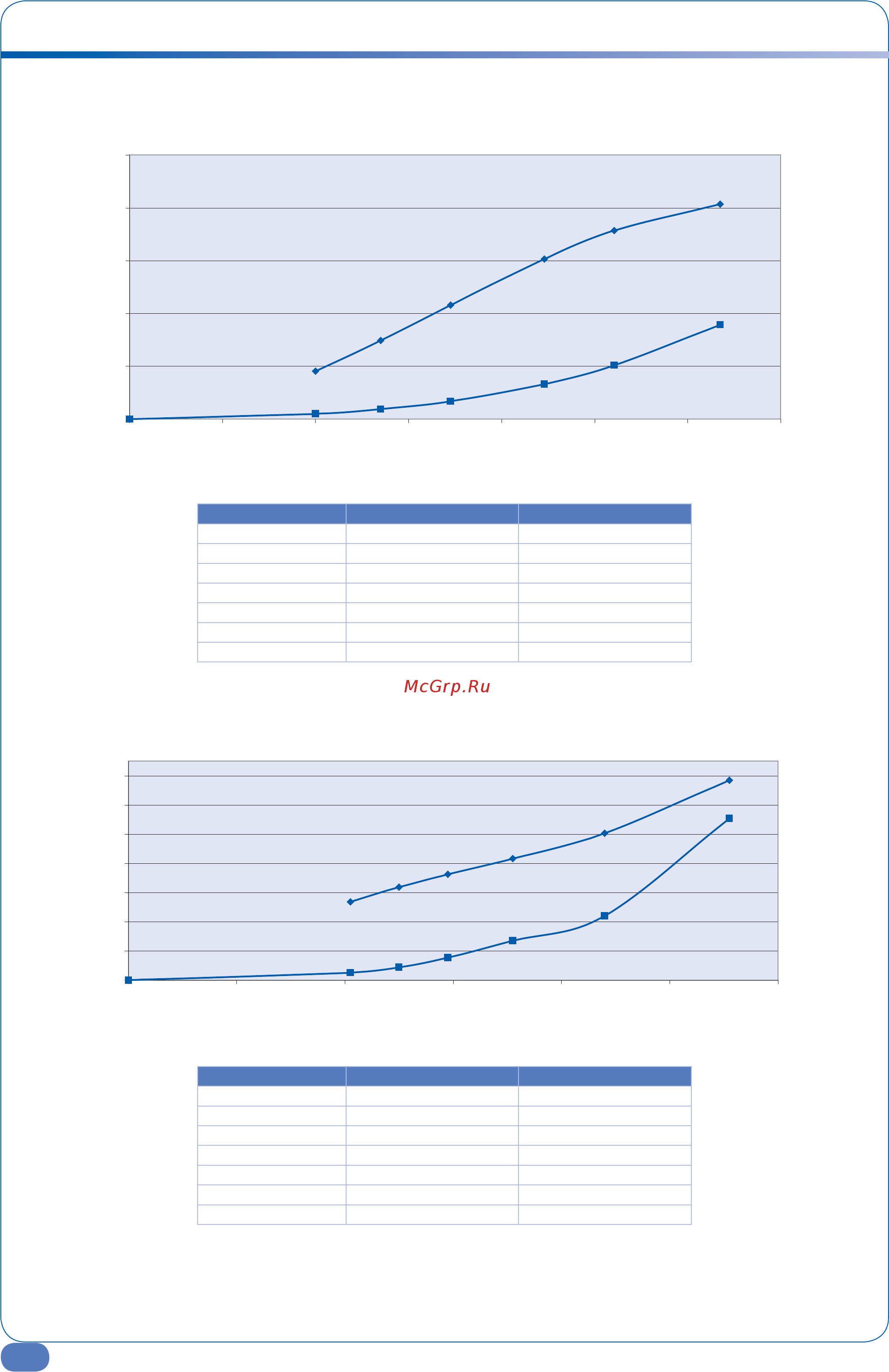

EC motor/AC motor Absorbed Power Comparison
Air flow (m
3
/h) AC motor absorbed power (W) EC motor absorbed power (W)
00
200 46 5
270 74 9
345 108 17
446 151 33
521 179 51
635 203 89
Air flow (m
3
/h) AC motor absorbed power (W) EC motor absorbed power (W)
00
410 54 5
500 64 9
590 72 15
710 83 27
880 101 44
1110 137 111
VH 03
VH 05
0
50
100
150
200
250
0 100 200 300 400 500 600 700
0
20
40
60
80
100
120
140
0 200 400 600 800 1000 1200
Air flow (m
3
/h) with 0 Pa
AC motor
AC motor
EC motor
EC motor
Air flow (m
3
/h) with 0 Pa
Absorbed power (W)Absorbed power (W)
