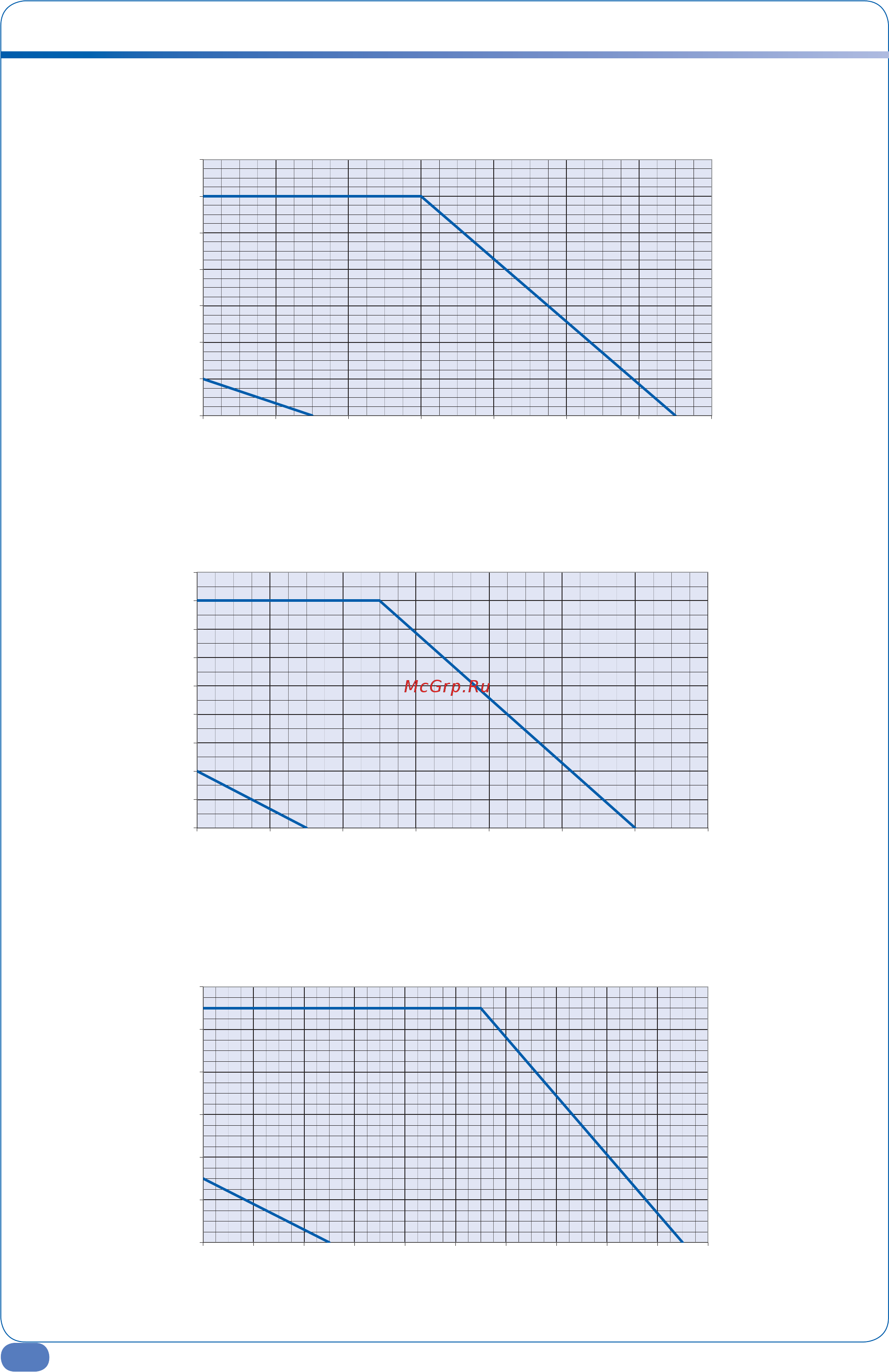

Operating Limits of VH 03 to 10 with EC Motor
0
0 100 200 300 400 500 600 700
20
40
60
80
100
120
140
10V
1.5V
0 200 400 600 800 1000 1200 1400
0
10
20
30
40
50
60
70
80
90
7V
3V
0 200 400 600 800 1000 1200 1400 1600 1800 2000
0
20
40
60
80
100
120
8V
3V
VH 03
VH 05
VH 07 & 10
Air flow (m
3
/h)
