Airwell Wespak 4.05 [21/28] Accessory dimensions mm

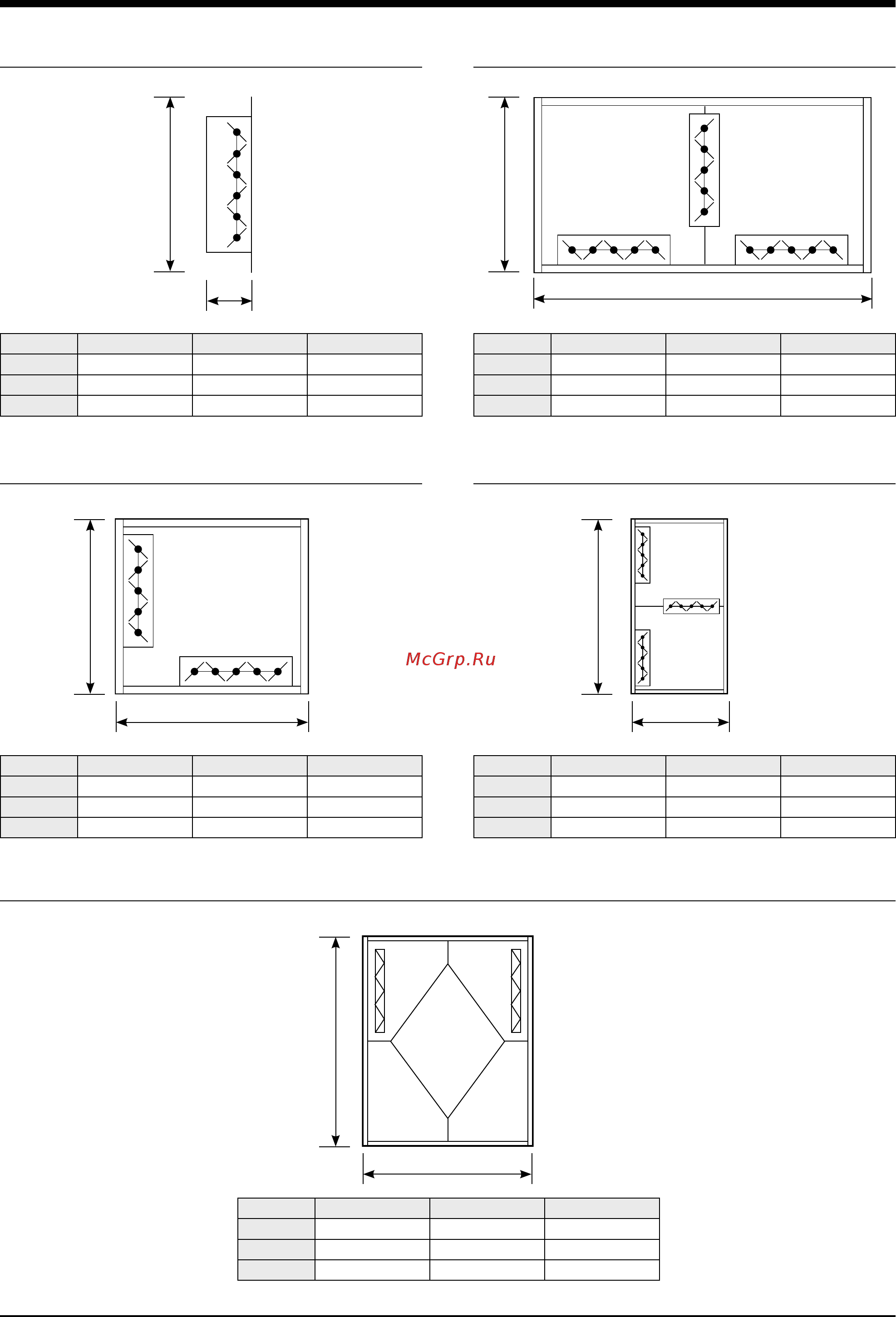

![Airwell Wespak 4.05 [21/28] Accessory dimensions mm](/views2/1408190/page21/bg15.png)
Page 21
L
H
Sizes L H Width
4.05 220 485 1550
5.05 220 485 1990
6.05 220 540 1990
L
H
Sizes L H Width
4.05 620 485 1550
5.05 620 485 1990
6.05 720 540 1990
L
H
Sizes L H Width
4.05 1237 485 1550
5.05 1237 485 1990
6.05 1438 540 1990
2-way mixing box MD1/2
In-line 3-way mixing box MD3Shut-off damper AG
Superposed 3-way mixing box MD3
Plate heat recuperator RP
Sizes L H Width
4.05 620 970 1550
5.05 620 970 1990
6.05 720 1080 1990
Sizes L H Width
4.05 1150 970 1550
5.05 1350 970 1990
6.05 1350 1080 1990
L
H
L
H
Accessory Dimensions (mm)
