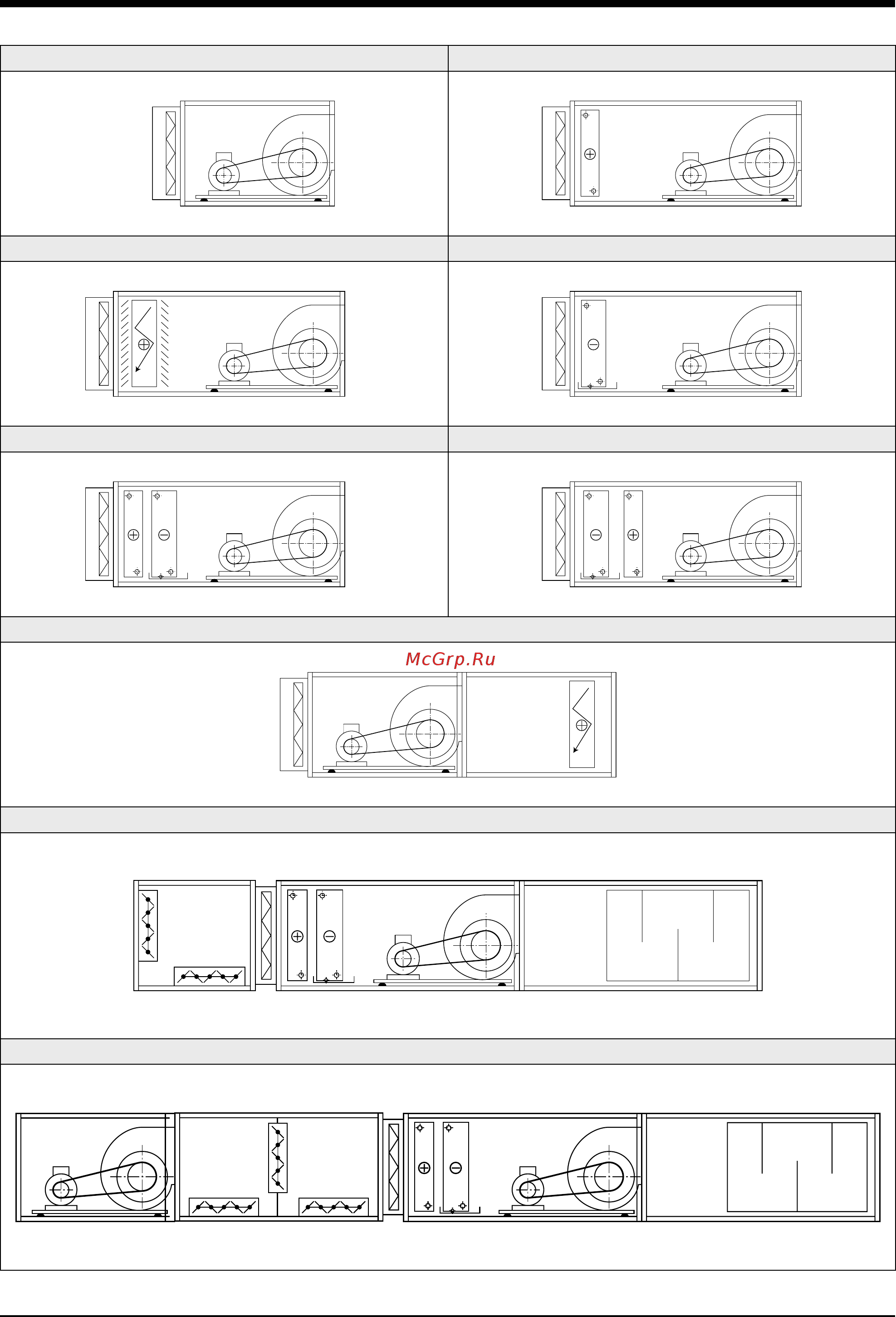

Airwell Wespak 4.05 [7/28] Examples of module combinations
![Airwell Wespak 4.05 [7/28] Examples of module combinations](/views2/1408190/page7/bg7.png)
Page 7
Filter + Fan (FA + HM9) Filter + Heating coil + Fan (FA + HP0)
Filter + Electric heater + Fan (FA + HP0 with BE) Filter + Cooling coil + Fan (FA + HP1)
Filter + Heating coil + Cooling coil + Fan (FA + HP2) Filter + Cooling coil + Heating coil + Fan (FA + HP3)
Filter + Fan + Discharge electric heater (FA + HM90)
2-way mixing box + Filter + Heating coil + Cooling coil + Fan + Discharge soung attenuator
Return fan + 3-way mixing box + Filter + Heating coil + Cooling coil + Supply fan + Discharge sound attenuator
Examples of Module Combinations
Note : Electric heater is supplied with upstream and downstream anti-radiation screens.
