Casing

Unit casing consists of structure and panels constructed from heavy

gauge galvanized sheet steel.

Panels are proposed in either single wall or double wall

construction.

Single skin panels are insulated with 10 mm thick synthetic foam

material, while double skin panels are filled with 25 mm thick glass

fiber insulation.

Each casing provides hole at four corners to allow for fitting of

suspension kit (by threaded rods), supplied as an option, in order to

minimize installation time.

Specifications

Removable side and bottom panels

Coil removal

Bottom access

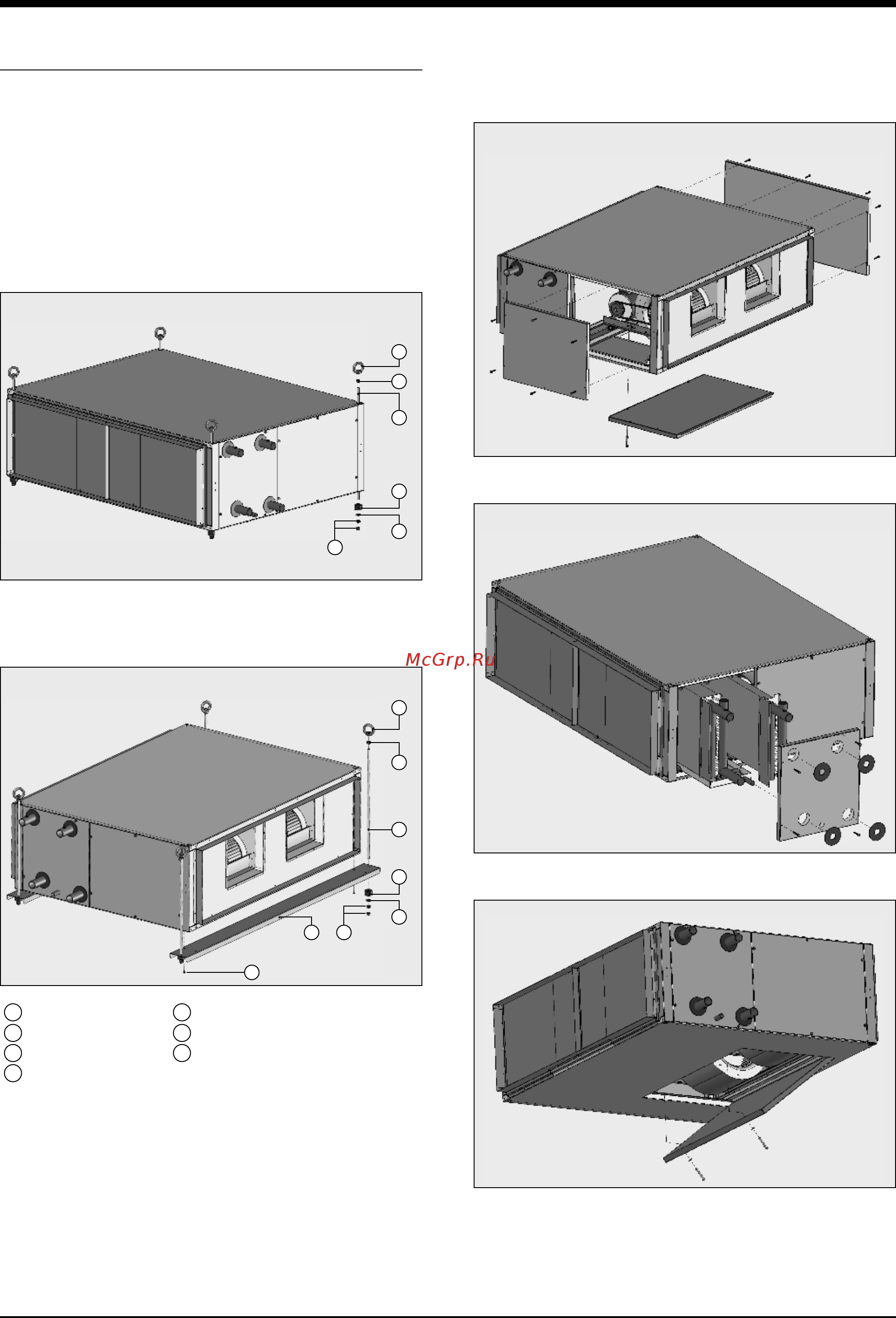

1 Lifting ring 5 Washer

2 Nuts 6 Hanger rail

3 Threaded rods 7 Hanger rail fixing screws

4 Rubber isolator

Another optional suspension kit (by threaded rods and hanger rails)

can be provided to quickly hang the multi casing units to the ceiling.

Again, this allows installers to save time during the installation

process.

Casing provides easy access with removable side and bottom

panels to facilitate unit cleaning and service.

Removable side panels allow fans and coils to be easily removed

from the unit casing for cleaning or replacement.

On the unit without heating coil located downstream cooling coil,

the bottom access panel of the fan section allows the cooling coil

drain pan to be inspected and cleaned without removing the coil.

Suspension kit by threaded rods only

Suspension kit by threaded rods and hanger rails
