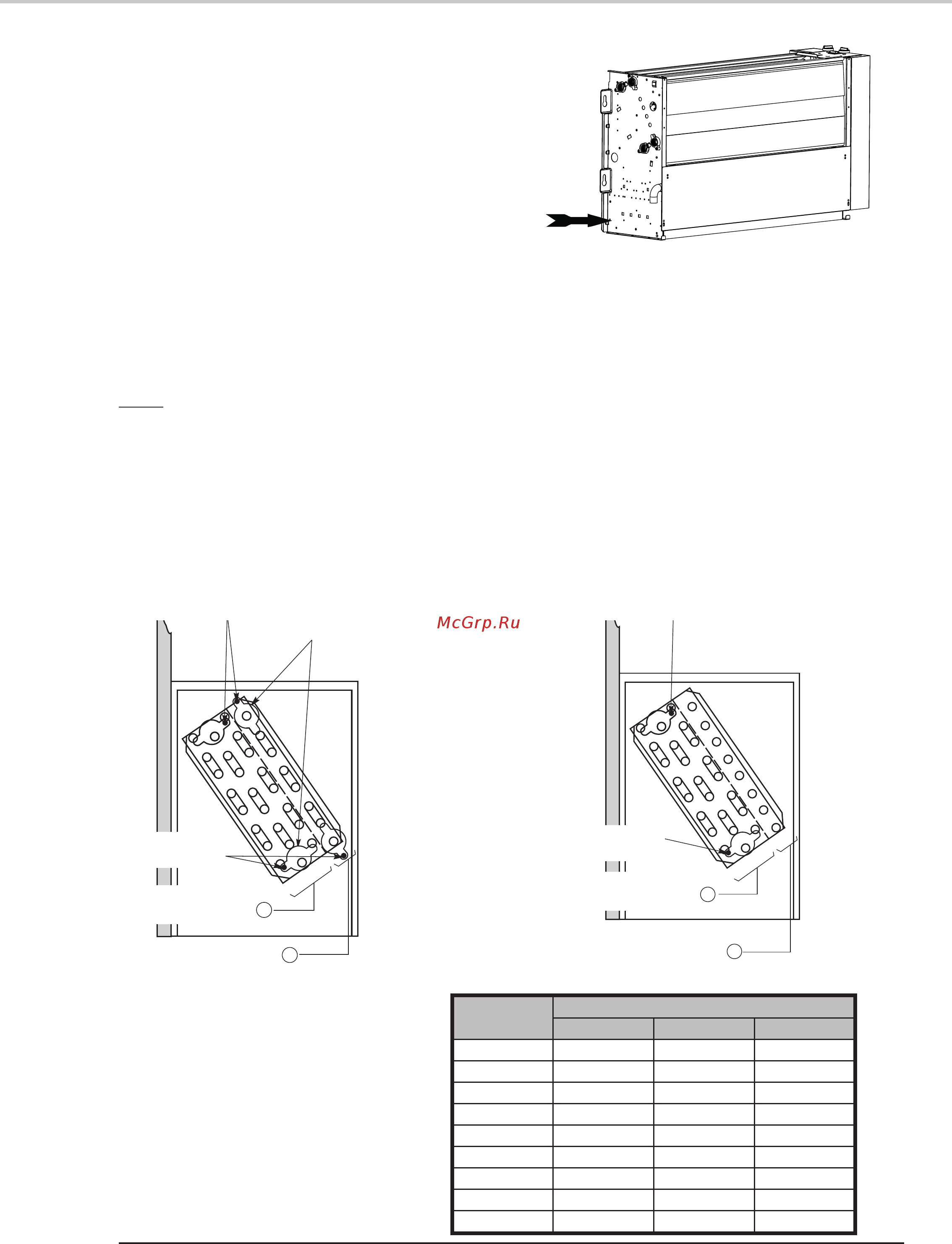

WATER CONNECTIONS
CHILLED WATER COIL - HOT WATER COIL
Fan coil units are equipped, in standard 2 pipe system configuration, with a main 2 row chilled water coil or
optional 3 row coil.
On 4 pipe system the unit will be factory mounted with 2 row or 3 row chilled water coil and 1 row complementary
heating coil.
-
+
-
+
Configuration with 3 row chilled water coil+1 row complementary heating coil or electric heater.
Left hand connections.
Coils 4 row
Electric heater with mono-
tube type heating elements
located in heat exchanger
Air vents orifices
Water coil headers
Drain
orifices
Drain
orifices
Chilled
water coil
Chilled
water coil
Complementary
heating coil
Additional row
for electric heater
Sizes
Water volume (liters)
1-row 2-row 3-row
10 0.17 0.29 0.41
20 0.24 0.43 0.62
30 0.34 0.62 0.90
40 0.43 0.80 1.18
50 0.52 0.99 1.46
60 0.61 1.17 1.73
70 0.69 1.49 2.19
80 0.92 1.76 2.60
90 1.06 2.04 3.60
WATER VOLUME OF COILS
OPERATING FACE
Air vents orifices
Note:
The 4 pipe battery comprises a single finned block for sizes 10.80.90.
The 4 pipe battery comprises two finned blocks for sizes 20.30.40.50.60.70.
Complementary row : 10 - 80 -90
Complementary coil: 20 to 70
The operating face of Left/Right versions is defined in relation to the
position of the hydraulic connections when the unit is viewed facing
the operator.
Note: In the example below, the operating face is on the left.
OPERATING
FACE
Minimum inlet temperature:+ 6 °C
Maximum inlet temperature:+ 90 °C
