7

UNIT INSTALLATION

AWN / AWC CONSOLE UNIT

All units are to be installed against a wall as a floor console with support feet, or wall mounting as per dimensional

data. On the fan coil units equipped with support feet, we recommend you to fix the unit to the wall through the

both oblong holes located on the upper part of the unit chassis.

On the AWC model, to hang the unit to the wall, it is necessary to remove the cabinet.

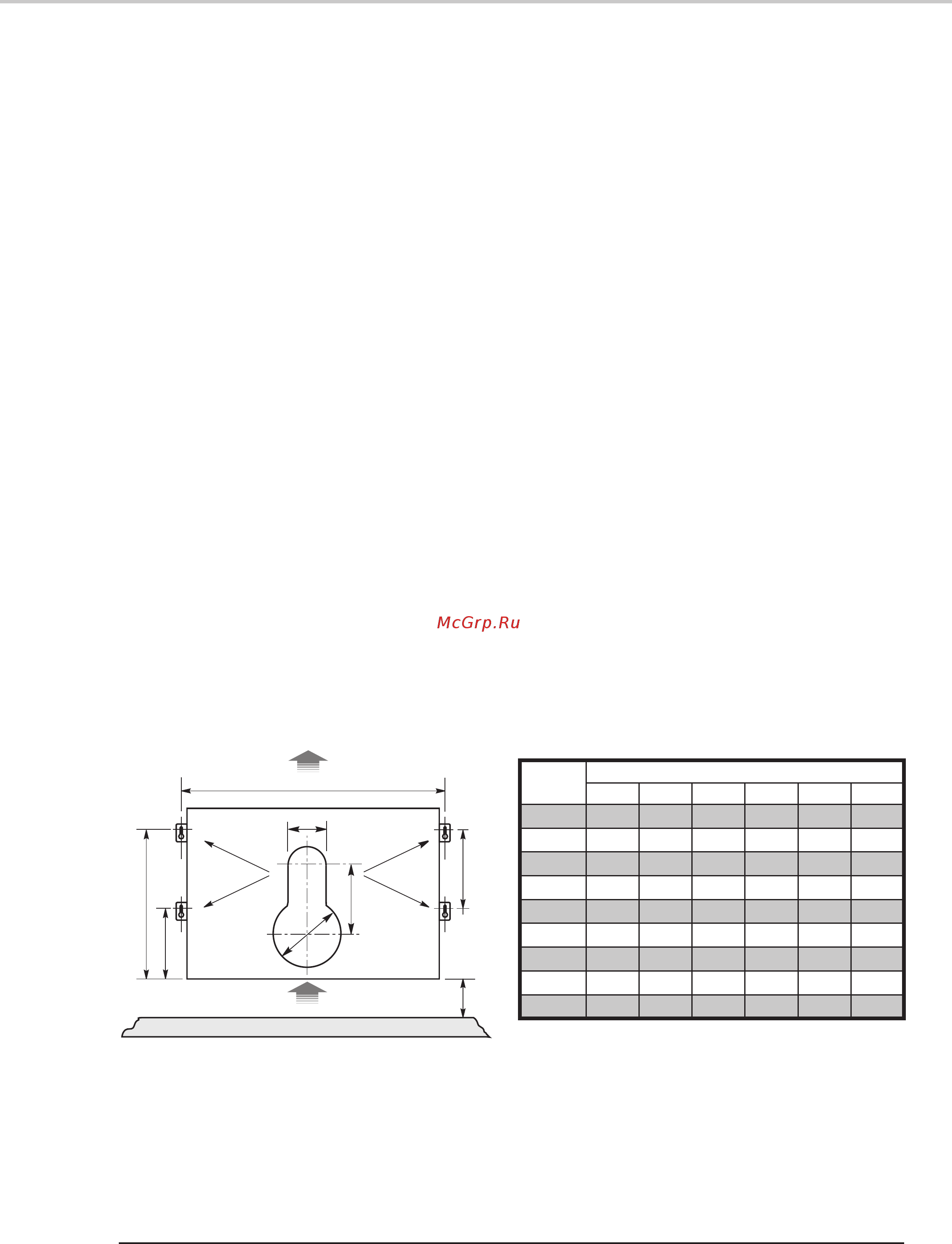

Drill holes on the wall in accordance to the dimensions mentioned. Install the fixing screws (contractor supply).

20 500 210 100 360 150 16

30 685 210 100 360 150 16

40 870 210 100 360 150 16

50 1055 210 100 360 150 16

60 1240 210 100 360 150 16

70 1055 208 100 365 157 18

80 1240 208 100 365 157 18

90 1425 208 100 365 157 18

* On units with front air intake, dimension C is not required.

** Not available on version AWC and AHC.

AHN / AHC CEILING UNIT

The AHN / AHC units are designed for ceiling mounting. Recommended fixing by M8 threaded rod or 8 mm

diameter anchor bolts (contractor supply).

When the AHN units are ducted at the inlet side, the controller return sensor must be located outside the fan

compartment in order to ensure its good operation.

For the AHC model with cabinet, it is necessary to remove the cabinet before installing it.
