Airwell AQH 70 [19/28] Heat exchanger water pressure drop
![Airwell AQH 70 [19/28] Heat exchanger water pressure drop](/views2/1408576/page19/bg13.png)
Page 19
0.00
50.00
100.00
150.00
200.00
250.00
0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50
20
25
30 / 35
kPa
0.00
20.00
40.00
60.00
80.00
100.00
120.00
140.00
0.00 1.00 2.00 3.00 4.00 5.00 6.00
40
50
60
70
80
kPa
Water flow (l/s)
Models 40, 50, 60, 70 & 80

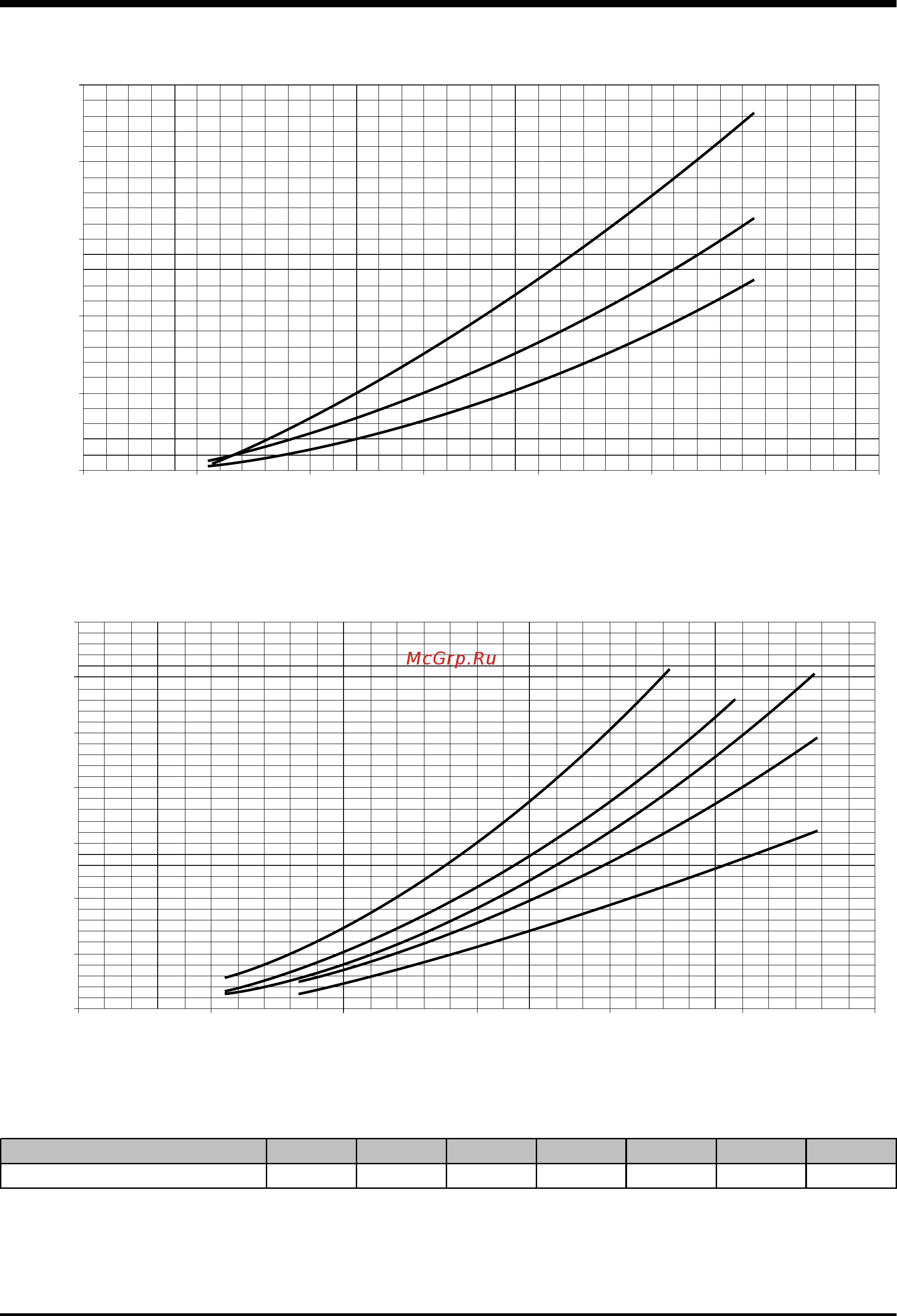

Heat exchanger water pressure drop
Models 20, 25, 30 & 35
Water flow (l/s)
Remark : the heat exchanger water pressure drop curves are based on water average temperature of 10 °C. For temperatures different
from 10 °C, use the correction factors as stated below :
5 101520304050
Correction factors 1.02 1.00 0.98 0.97 0.95 0.93 0.91
Water average temperature (°C)
