Page 21

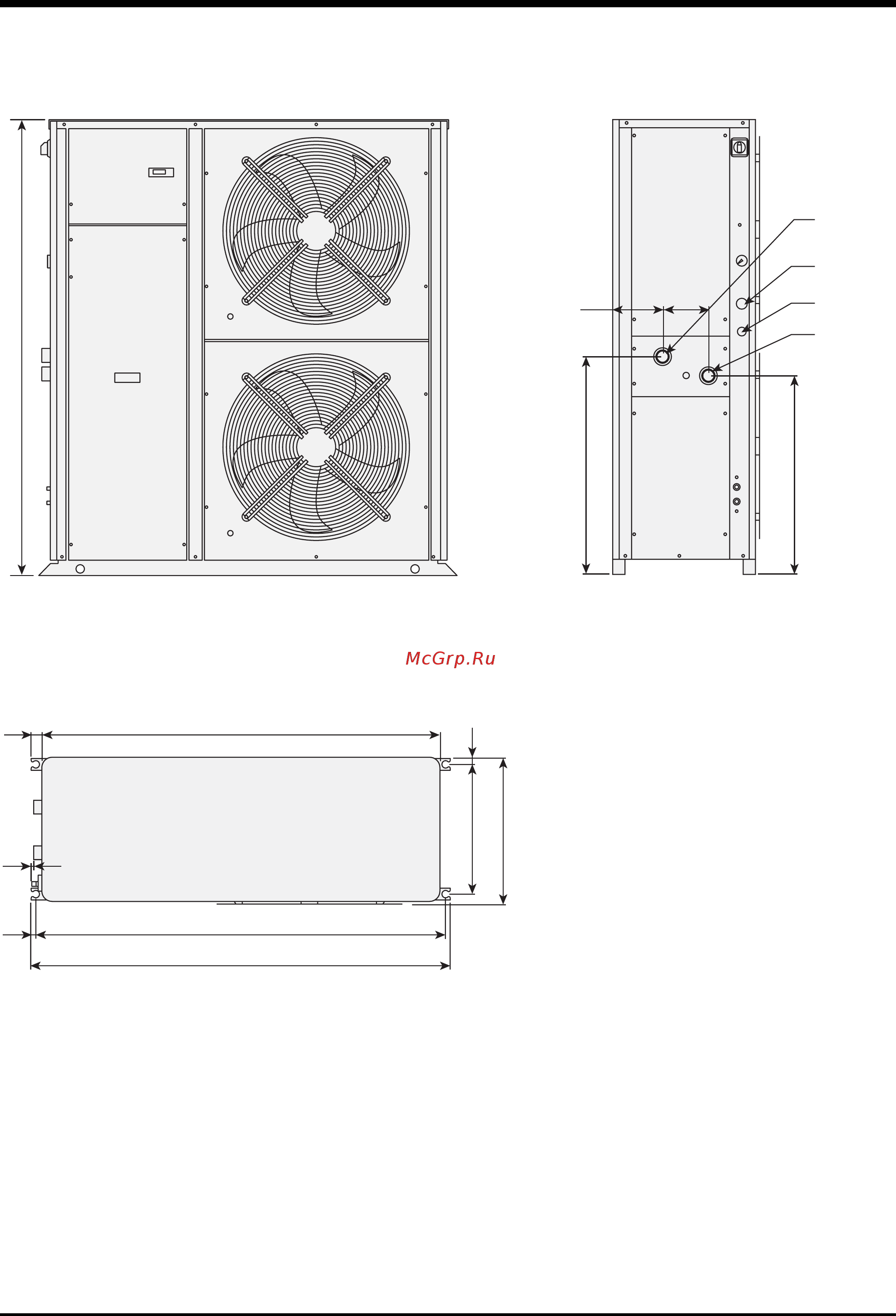

Dimensions - Aqu@Logic AQH sizes 20, 25, 30 and 35
1607
1408
457(*) 26
516
35
9.5
18
1441(*)
1477
173
767
700
161
A
D
C
B
Front view Side view
Top view
(*) Location of anti-vibration mounts.
Dimensions in mm.
A - Water inlet Ø1 1/2" gas
B - Water outlet Ø1 1/2" gas
C - Ancillary electric cables entry
D - Power supply cables entry
