OPERATION

6543

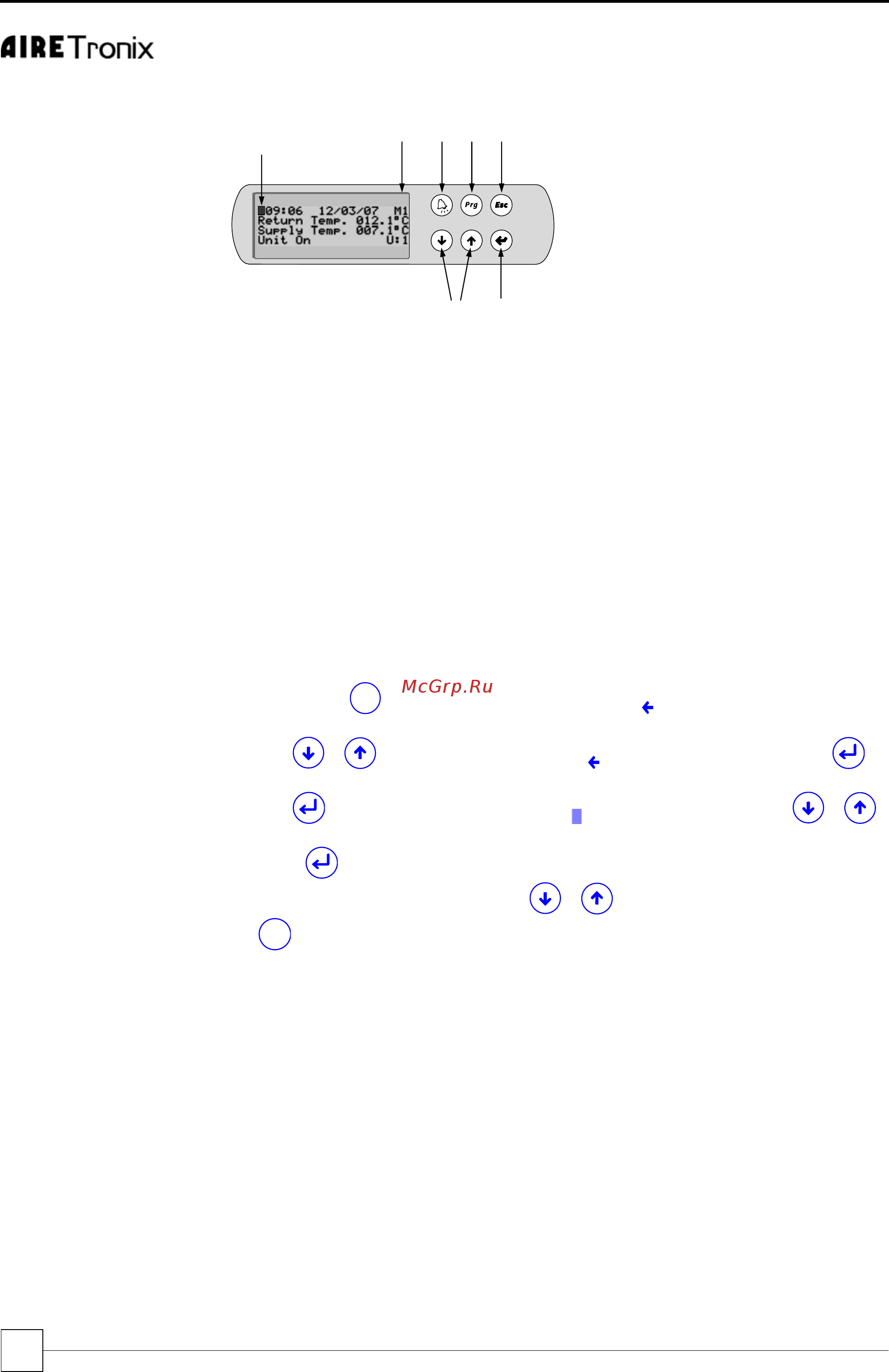

Display/keypad

1 UP/DOWN KEYS - To change Adjustable Fields & Scrolls up & down

available Menus

2 ENTER -Selects Menus & Moves Cursor to Adjustable Fields Green LED

3 ESC - Green LED lit when Operating Page displayed, Returns to Operating Page

Screen when pressed

4 PROGRAM - Opens the Available Menus

5 ALARM - Red LED Indicates Alarm Present

6 4 ROW LCD DISPLAY

7 CURSOR (FLASHING) Top Left Position = “HOME” Indicates adjustable Fields

Navigation

The display is used for Viewing Unit Operating Status and Adjusting Customer

Control Settings

by allowing the operator access to a series of Menus & sub-menus.

Viewing information is unrestricted, however set up and adjustment requires password

entry, refer to

Password Protection.

Initially, use the

Prg

key to access Menus, the symbol will appear top right and the

first menu will appear in CAPITALS, these

indicators shows which menu is selected.

Use the keys to move the indicator to the desired menu and press to

open the menu.

Use the

key to move the flashing cursor to adjustable fields and the

keys to change the values.

Press the

key to move the cursor to the next field or Home.

When the cursor is Home either use the keys to scroll to next sub-menu or

the

Esc

to exit and return to the Standard Operating page.
