Chillers ULTIMA WATER COOLED
Chillers
Installation & Maintenance : 903-126 IM E 10/04/A
9
Installation Data

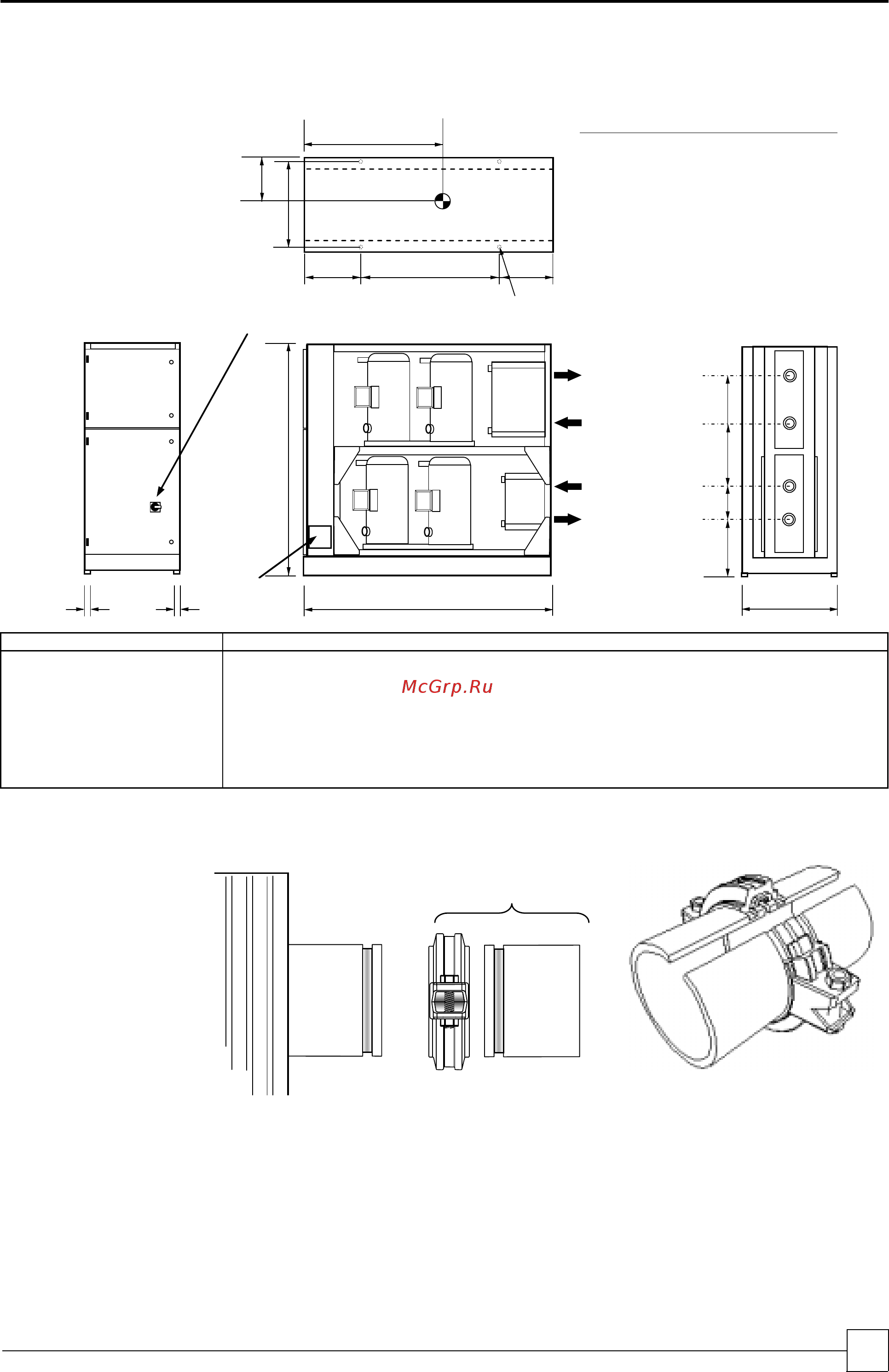

DIMENSIONS UWC75 – UWC250 (EXCEPT UWC240)
20mm Ø
Mounting Holes
Condenser
Water Out
Condenser
Water In
Evaporator
Water Out
Evaporator
Water in
A
760
1850 F
E D C B
G H J
P1
P
2
P3
P4
C of G
2
C of G1
Mains Electric
Isolator
Mains Cable
Entry
Controls
Panel
Water Connections - Victualic Type
UWC75 - 125 Evap 65mm
Cond 65mm
UWC150 - 200 Evap 65mm
Cond 80mm
UWC225 - 250 Evap 80mm
(Ex. 240) Cond 80mm
50
50
Model Size A BCDEFG H J
UWC75 mm 1800 383 397 482 397 710 462 876 462
UWC100 mm 1800 383 397 482 397 710 462 876 462
UWC125 mm 1800 383 397 438 397 710 462 876 462
UWC150 mm 2000 380 397 325 628 710 462 1076 462
UWC175 mm 2000 380 397 325 628 710 462 1076 462
UWC200 mm 2000 380 397 325 628 710 462 1076 462
UWC225 mm 2000 268 628 207 628 710 462 1076 462
UWC250 mm 2000 268 628 207 628 710 462 1076 462
The unit water services are designed to accept a Victaulic type fitting as illustrated.
VICTAULIC TYPE
FITTING
Optional Counter Pipe Kit
suitable for Victaulic Type
water connection
