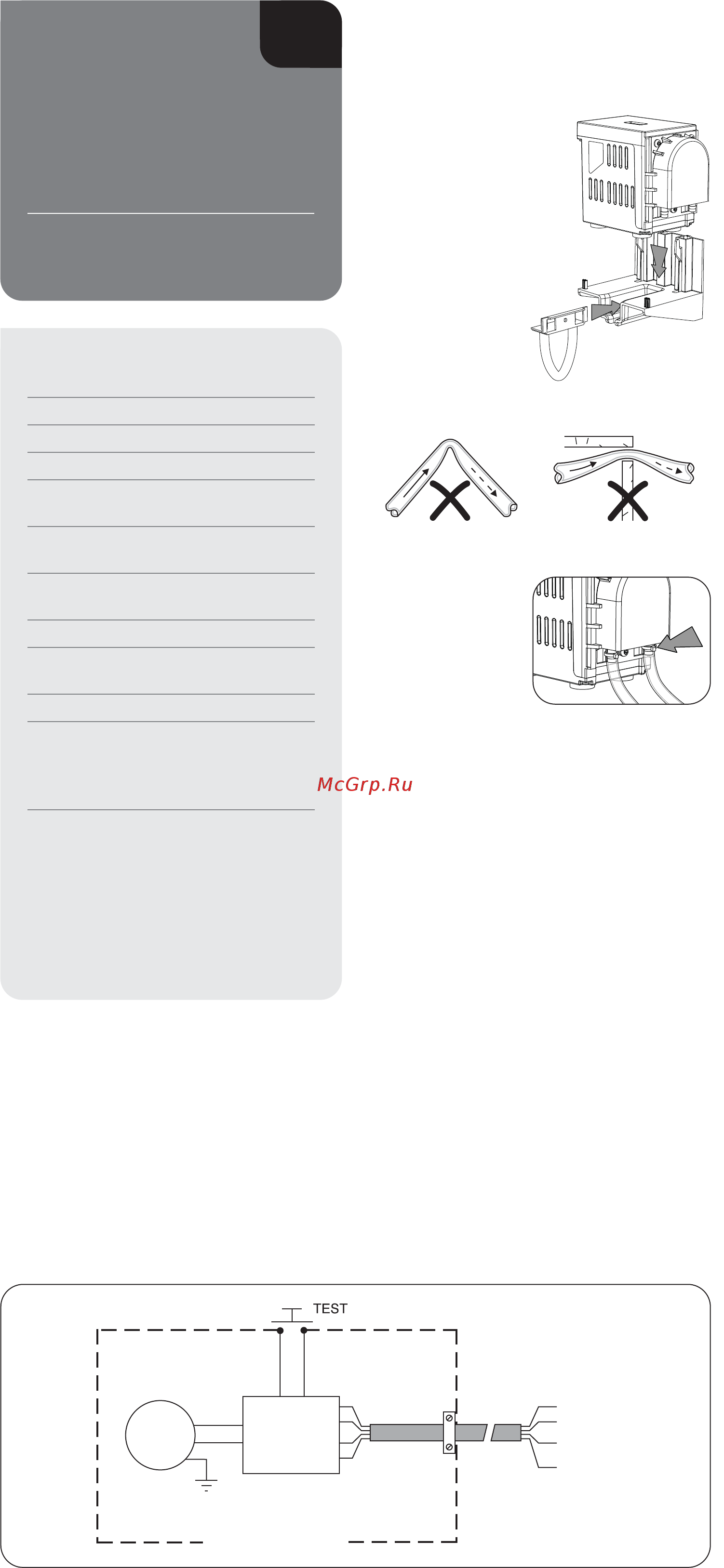

Description:
The pump is designed to be fitted in the ceiling
void and to lift condensated water where a gravity
drain is too obtrusive. It can be used on cassettes
fitted with an internal lift pump.
A run-on timer is fitted so that excess condensate
does not overflow the drip tray when the unit
switches off, either on thermostat or at the end
of use. The signal wire MUST be connected to the
compressor circuit or to the reversing valve so
when on ‘HEATING’ the pump does not run.
Installation
Notes:
Install a 1.0 amp
inline fuse in live line
between pump and
power source.
This pump is
designed to sit level
on its base and must
at all times have
adequate space around
it for good ventilation.
Ensure that there are
no kinks or trapped
parts in the piping,
which must have an
inside diameter of
6mm and an outside
diameter of 9mm. Fix the pipes with cable ties to
the pump inlet and outlet.
Service Guide:
1 Inspect the pump head regularly and change
the pump head tube every 12 months or more
often if required.
2 To remove the pump head, make sure the roller
assembly is vertical. Remove screws and fit the
replacement pipe. The addition of a smear of
silicon grease will ease refitting the lid and
reduce potential friction noise.
3 Press TEST switch once to run pump for 3
minutes and check it operates correctly.
4 Replacement pump head tubes and other
accessories can be obtained from the
manufacturers. Please quote the serial number
(to be found on the pump) when ordering
spare parts.
DO NOT RUN CONTINUOUSLY
For further help contact Aspen Pumps.
Technical Specification:
Q 2 metre connecting cable
Q Self-priming
Q 3 metre suction lift
Q 12 metre discharge head
Q Pumps water/fibrously contaminated
water and air
Q Water pumping capacity 6.25 litres
per hour @ 12m discharge
Q Pump has a selector switch for
manual flushing
Q Pump has a 3 minute over-run timer
Q Temperature limits on pump head tube:
0 to +100°C
Q Pump rating 0.2A, 240V AC
Dimensions (without plug):
Height: 115mm Width: 135mm
Depth: 77mm Weight: 1.35kg
Electrical Connections:
Brown: Live
Blue: Neutral
Green/yellow: Earth
Black: Switched live from Signal
NOTE: Black must not be connected to
permanent live feed.
LIVE
EARTH
NEUTRAL
PUMP
MOTOR
PCB
PUMP CASING
SIGNAL
(Black)
GB
Aspen
Standard
Pump
Particularly suitable for wall and
floor mounted units
